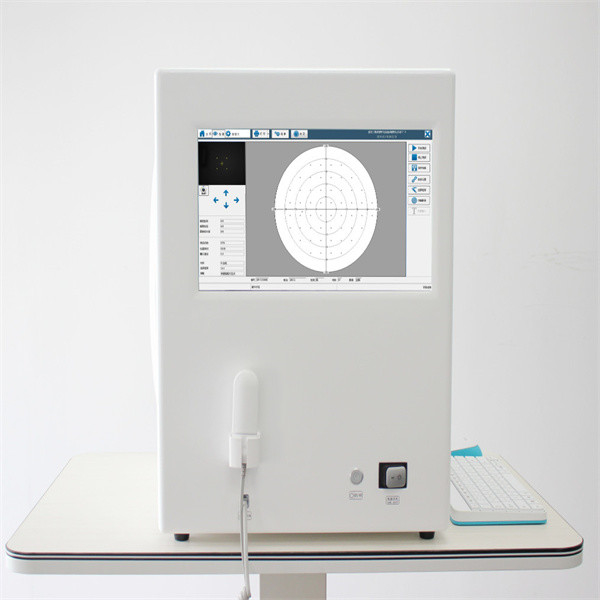

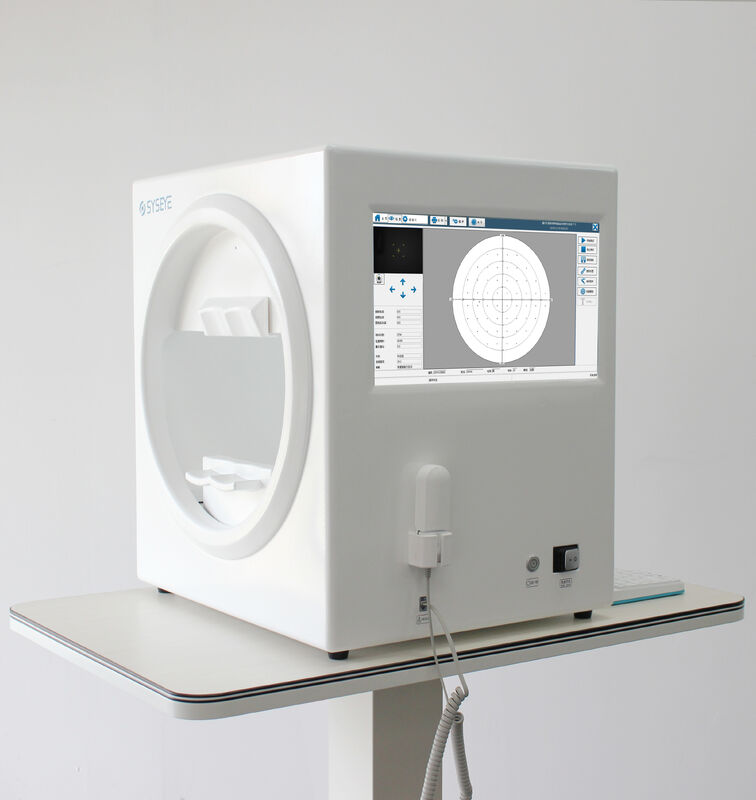

High-end computer configuration Automated Perimetry Machine
BIO-1000 automatic computer vision instrument absorbs the advantages of international advanced models, set acoustic, optical, mechanical, electrical technology in one, using large-scale integrated circuit design, using projection mode, visual marking using international general random detection mode, and has a wide inspection range (0-90°).The automatic vision instrument adopts high-end computer configuration, which is more stable and reliable than similar domestic products. Automated Perimetry Machine has been recognized by many eye hospitals in China and widely used. It supports Windows XP and Win7 platforms, with beautiful software interface, simple operation and easy to learn and use by ophthalmologists.According to international standards, comprehensive software testing procedures and multiple report analysis are provided to assist in the diagnosis of diseases related to visual impairment.
Features of Automated Perimetry Machine
1. Comprehensive real-time monitoring, heiji-krakau physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection.
2. Personalized design, accurate clinical analysis, accurate and rapid examination strategy.
3. Under international Goldman standard, providing a variety of calssic test procedures and report analysis.

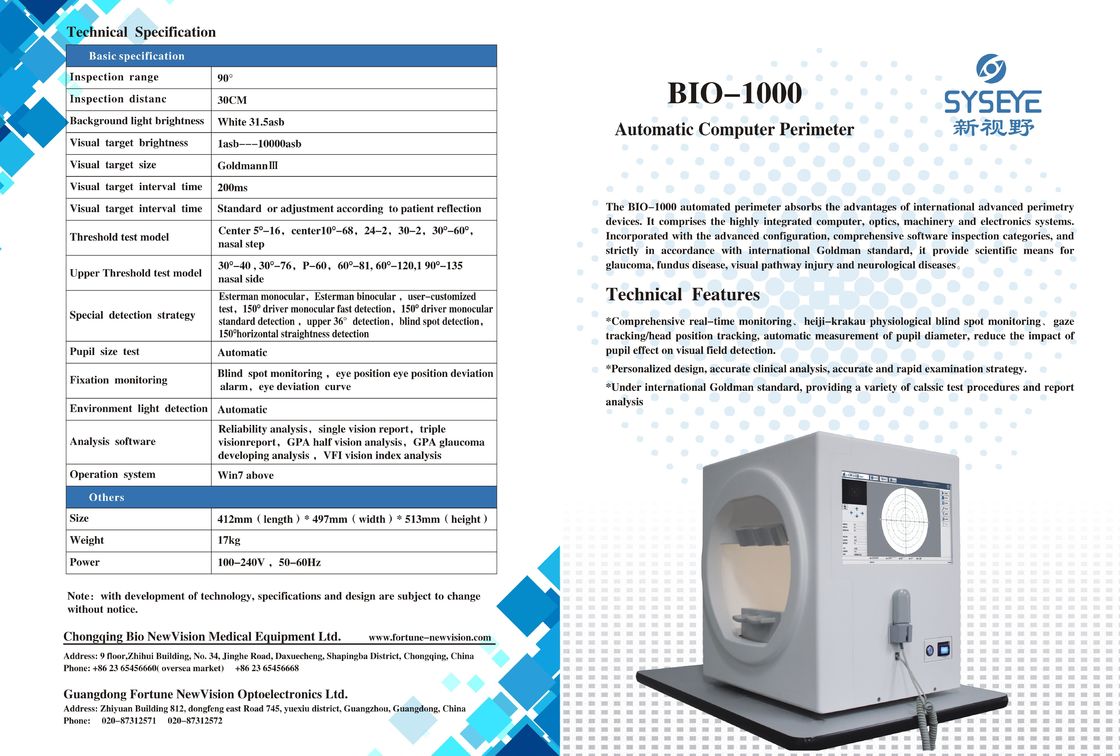

Specifications:
|
Basic specification |
High-end computer configuration Automated Perimetry MachineAutomated Perimetry Machine |
|
Inspection range |
90° |
|
Inspection distance |
30cm |
|
Background light brightness |
White 31.5asb |
|
Visual target brightness |
1asb--- -10000asb |
|
Visual target size |
Goldmann III |
|
Visual target interval time |
200ms |
|
Visual target interval time |
Standard or adjustment according to patient reflection |
|
Threshold test model |
Center5-°16, center10° -68, 24 -2, 30-2, 30° -60° nasal step |
|
Upper Threshold test model |
30°- 40, 30°-76, P-60, 60°-81, 60°-120,190°-135 nasal side |
|
Special detection strategy |
Esterman monocular, Esterman binocular . user- customized test, 150P driver monocular fast detection, 150P driver monocular standard detection , upper 36 detection, blind spot detection,150horizontal straightness detection |
|
Pupil size test |
Automatic |
|
Fixation monitoring |
Blind spot monitoring , eye position eye position deviation alarm, eye deviation curve |
|
Environment light detection |
Automatic |
|
Analysis software |
Reliability analysis , single vision report, triple vision report, GPA half vision analysis, GPA glaucoma developing analysis , VFI vision index analysis |
|
Operation system |
Win7 above
|
| Feature |
Automated Perimetry Machine 1. Comprehensive real-time monitoring, heiji-krakau physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection. 2. Personalized design, accurate clinical analysis, accurate and rapid examination strategy. 3. Under international Goldman standard, providing a variety of calssic test procedures and report analysis.
|
Automated Perimetry Machine installation environment
In order to ensure the safe and stable operation of the equipment, please ensure a good installation environment:
(1) the equipment must be installed on a flat table without slope.
(2) the equipment must be installed in a clean, quiet and dry environment.
(3) the equipment shall be installed in a dark room with a luminance of no more than 10 lx 1 meter away.
(4) special ground wire shall be installed for the equipment.
