Place of Origin:
China
Brand Name:
SYSEYE
Certification:
FDA
Model Number:
RetiCam 3100
Contact Us

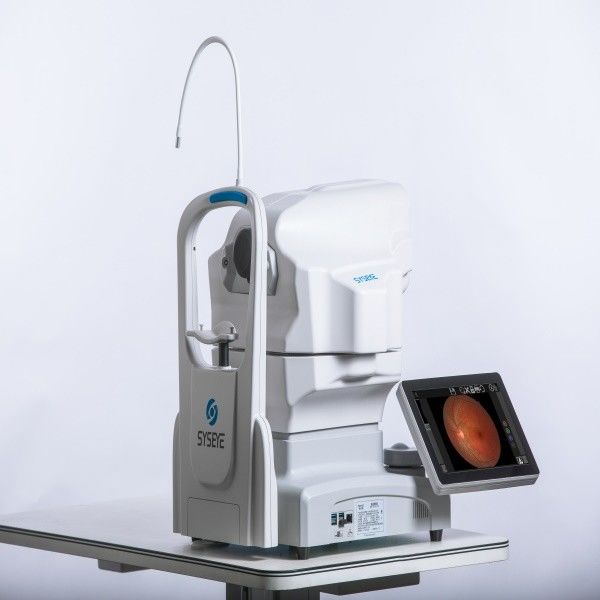

International First-Class Automatic Fundus Imaging System Automated Fundus Camera

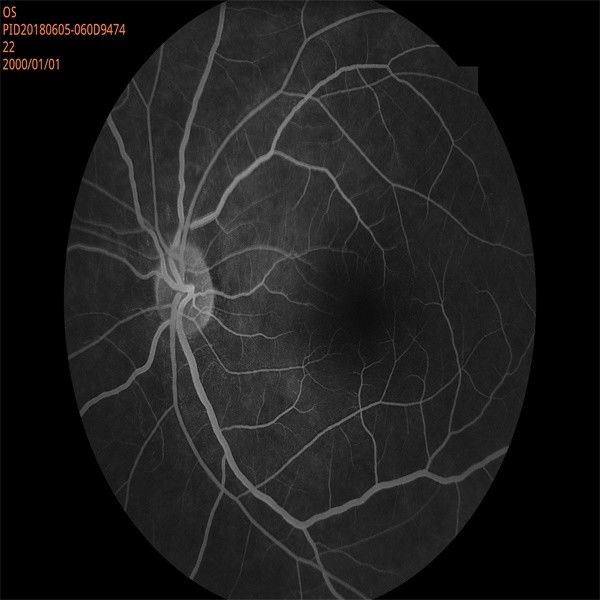

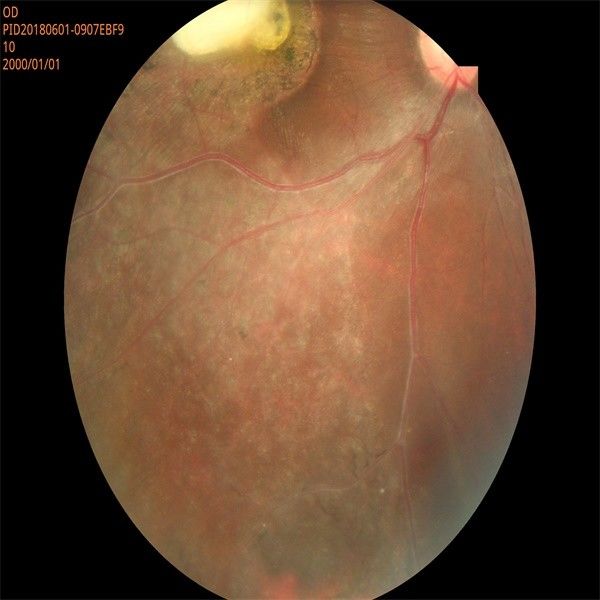

The Automated Fundus Camera RetiCam 3100 can be used to capture the anterior and posterior eye images. It has a field of view of 50 degrees for fundus imaging. If features:
Auto focus (AF) and auto shooting (AS)
Small pupil imaging capability
In default setting, this product works for a pupil with a standard diameter of 4.0 mm or larger.
In a small pupil mode, it can take fundus images for pupils with a diameter of 3.3 mm or larger.
System software
The software provided can be used to browse, process, store captured images and output the images to a “DICOM” server.
Automated Fundus Camera RETICAM 3100 is based on the traditional fundus camera of our company, after years of research and development, through binocular stereo vision and XYZ 3D image feature recognition automatic positioning, and through the division line to achieve automatic focus, through CCD imaging feedback to determine automatic metering and exposure intensity, automatic exposure, It is very convenient for the doctor to operate, and then the focusing motor is controlled according to the image resolution to present the real high-resolution retinal image and help the doctor to make accurate judgment for the patient's eyes.
By default, the product is suitable for pupils with a standard diameter of 4.0 mm or larger. In small pupil mode, it can take fundus images with a diameter of 3.3mm or larger.
| Acquisition Modes | Automated Fundus Camera/mydriatic Anterior photography /Red-free(optional)(FFA)/(FAF) |
| Field View | 50° |
| Working Distance | 35mm |
| Minimum Pupil | ≥3.3mm |
| Focus Modes | Manual/Auto |
| Alignment Modes | Double dots auxiliary |
| Exposure | Manual /Auto |
| Photography | SLR Camera |
| Image definition | 24 Megapixel |
| Compensation | ±25D |
| Fixation | External /Internal (any position available) |
| DICOM 3.0 | Support |
| Automated Fundus Camera in the world | |||
| Brand | TOPCON(NW-400) | DRS | NEWVISON(RETICAM3100) |
| operation | automatic(one key taking picutre)/manual | automatic(one key taking picutre)/manual | automatic(one key taking picutre)/manual |
| Acquisition modes | fundus/anterior/? | fundus/anterior/red-free filter | fundus/anterior/red-free filter/FFA(optional)/FAF(optional) |
| Filed of view | 45 degree | 40-45degree | 45-50degee |
| Mosic degee | 80 degree | 135degree | |
| Minimum pipil size | 3.3mm | 3.5mm | 3.3mm |
| Resolution | above 18megapiexl | sensor size:5 megapixel sensor resoultion: 48 pixel/degree | above18 megapixel (24 megapixel optional ) |
| Fixation | 9 internal + 1 outside fixaiton | 7 internal fixation | countless fixaiton, any position is available during range + 1 outside fixation |
| Technology of focus | Dual camrea technology | ||
| exposure ligh | standard | standard | new technology, more soft, one patient same eye can take picuture consecutive with almost same performace |
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
