Place of Origin:
China
Brand Name:
SYSEYE
Certification:
FDA
Model Number:
RetiCam 3100
Contact Us
High-resolution image - camera pixel range from 18mega to 24 mega Automated Fundus Camera
Automated Fundus Camera is for observing, capturing and acquiring fundus image and anterior segment images of the eye without dilation.
Fundus examination and photography are important methods for the examination of vitreous, retinal, choroid and optic nerve diseases. Many systemic diseases such as hypertension, nephropathy, diabetes, pregnancy toxemia, sarcoidosis, some blood diseases, central nervous system diseases will happen to take the bottom of the disease, and even become the main reason for the patient to see a doctor, so the eye has the "window of the body" said, inspection of the fundus can provide important diagnostic data.

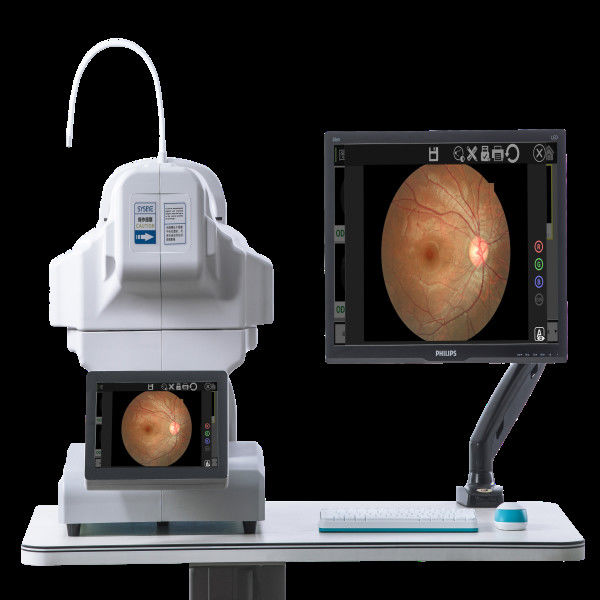

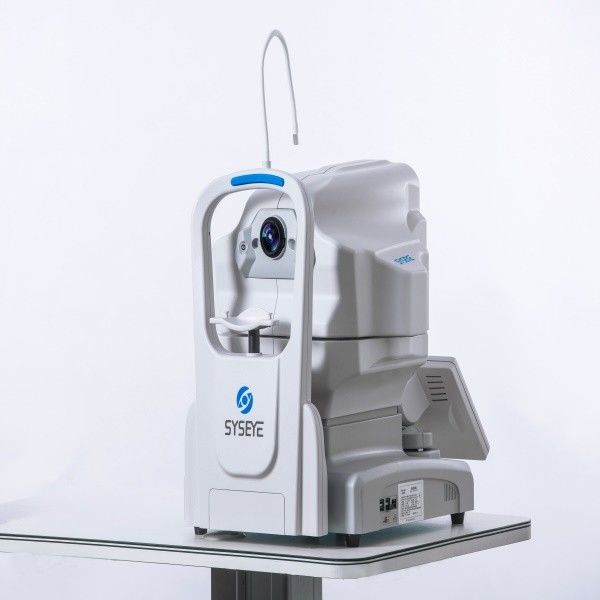

Automated Fundus Camera RETICAM 3100 is based on the traditional fundus camera of our company, after years of research and development, through binocular stereo vision and XYZ 3D image feature recognition automatic positioning, and through the division line to achieve automatic focus. Through CCD imaging feedback, the exposure light is measured and the exposure intensity is determined automatically and correctly. Focusing step is controlled according to the image resolution, and image definition is adjusted to obtain clear and accurate fundus image.Automated Fundus Camera RetiCam 3100 has excellent optical imaging capability, easy to operate, less dependence on the operator, easier to obtain images.
| Acquisition Modes | Automated Fundus Camera/mydriatic Anterior photography /Red-free(optional)(FFA)/(FAF) |
| Field View | 50° |
| Working Distance | 35mm |
| Minimum Pupil | ≥3.3mm |
| Focus Modes | Manual/Auto |
| Alignment Modes | Double dots auxiliary |
| Exposure | Manual /Auto |
| Photography | SLR Camera |
| Image definition | 24 Megapixel |
| Compensation | ±25D |
| Fixation | External /Internal (any position available) |
| DICOM 3.0 | Support |
For patients who have an allergic reaction to strong light or who cannot receive light stimulation, please consult the physicians before imaging.
| Automated Fundus Camera in the world | |||
| Brand | TOPCON(NW-400) | DRS | NEWVISON(RETICAM3100) |
| operation | automatic(one key taking picutre)/manual | automatic(one key taking picutre)/manual | automatic(one key taking picutre)/manual |
| Acquisition modes | fundus/anterior/? | fundus/anterior/red-free filter | fundus/anterior/red-free filter/FFA(optional)/FAF(optional) |
| Filed of view | 45 degree | 40-45degree | 45-50degee |
| Mosic degee | 80 degree | 135degree | |
| Minimum pipil size | 3.3mm | 3.5mm | 3.3mm |
| Resolution | above 18megapiexl | sensor size:5 megapixel sensor resoultion: 48 pixel/degree | above18 megapixel (24 megapixel optional ) |
| Fixation | 9 internal + 1 outside fixaiton | 7 internal fixation | countless fixaiton, any position is available during range + 1 outside fixation |
| Technology of focus | Dual camrea technology | ||
| exposure ligh | standard | standard | new technology, more soft, one patient same eye can take picuture consecutive with almost same performace |
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
