Autoexposure Automated Fundus Camera FFA Non Mydriatic

Autoexposure Automated Fundus Camera FFA Non Mydriatic

Autoexposure Automated Fundus Camera

FFA Automated Fundus Camera

Non Mydriatic digital fundus camera

Place of Origin:


Brand Name:




Model Number:

RetiCam 3100

Contact Us

Request A Quote
Product Details
Product Name:
Non-mydriatic And Autoexposure Fundus Camera
Field View:
Working Distance:
Minimum Pupil:
Focus Modes:
Payment & Shipping Terms
Minimum Order Quantity
Delivery Time
5 working days
Payment Terms
, T/T
Supply Ability
Product Description

Non-mydriatic and autoexposure Non-Contact Automated Fundus Camera


Who needs Automated Fundus Camera:

Specialized physical examination of normal population

Patients with diabetes and high-risk groups

Hypertensive patients and high-risk groups

A family history of glaucoma

High myopia (above 600 degrees)

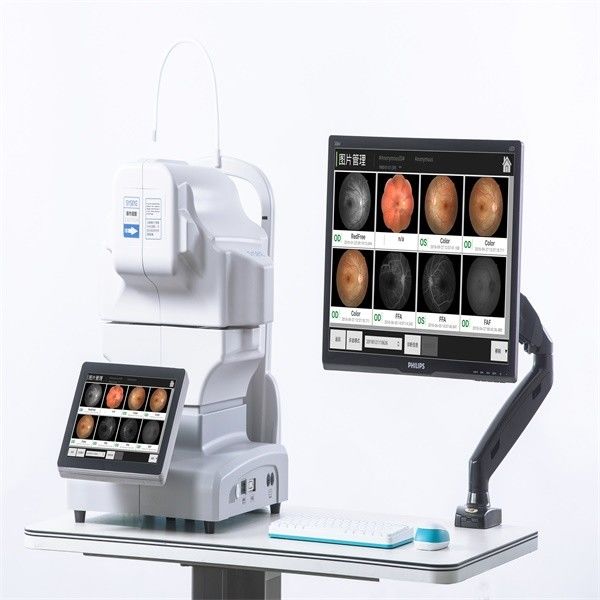

Automated Fundus Camera RETICAM 3100 is based on the traditional fundus camera of our company, after years of research and development, through binocular stereo vision and XYZ 3D image feature recognition automatic positioning, and through the division line to achieve automatic focus. Through CCD imaging feedback, the exposure light is measured and the exposure intensity is determined automatically and correctly. Focusing step is controlled according to the image resolution, and image definition is adjusted to obtain clear and accurate fundus image.Automated Fundus Camera  RetiCam 3100  has excellent optical imaging capability, easy to operate, less dependence on the operator, easier to obtain images.


Acquisition Modes Automated Fundus Camera/mydriatic Anterior photography /Red-free(optional)(FFA)/(FAF)
Field View 50°
Working Distance 35mm
Minimum Pupil ≥3.3mm
Focus Modes Manual/Auto
Alignment Modes Double dots auxiliary
Exposure Manual /Auto
Photography SLR Camera
Image definition 24 Megapixel
Compensation ±25D
Fixation External /Internal (any position available)
DICOM 3.0 Support


For patients who have an allergic reaction to strong light or who cannot receive light stimulation, please consult the physicians before imaging.

                                               Automated Fundus Camera in the world
operation automatic(one key taking picutre)/manual automatic(one key taking picutre)/manual automatic(one key taking picutre)/manual
Acquisition modes fundus/anterior/? fundus/anterior/red-free filter fundus/anterior/red-free filter/FFA(optional)/FAF(optional)
Filed of view 45 degree 40-45degree 45-50degee
Mosic degee   80 degree 135degree
Minimum pipil size 3.3mm 3.5mm 3.3mm
Resolution above 18megapiexl sensor size:5 megapixel sensor resoultion: 48 pixel/degree above18 megapixel (24 megapixel optional )
Fixation 9 internal + 1 outside fixaiton 7 internal fixation countless fixaiton, any position is available during range + 1 outside fixation
Technology of focus     Dual camrea technology
exposure ligh standard standard new technology, more soft, one patient same eye can take picuture consecutive with almost same performace

Autoexposure Automated Fundus Camera FFA Non Mydriatic 0

Autoexposure Automated Fundus Camera FFA Non Mydriatic 1



Autoexposure Automated Fundus Camera FFA Non Mydriatic 2
