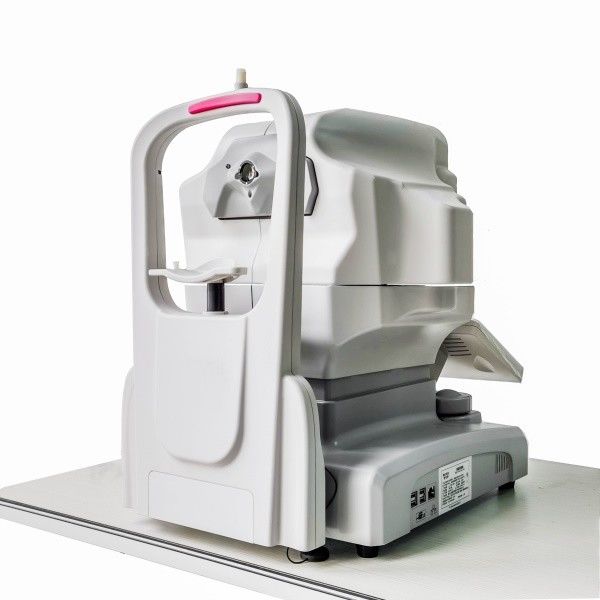

CCD Non Mydriatic Fundus Camera Retinal Imaging No Pain

CCD Non Mydriatic Fundus Camera Retinal Imaging No Pain

Mini Non Mydriatic Fundus Camera

CCD Non Mydriatic Fundus Camera

No Pain retinal imaging camera

Place of Origin:

China

Brand Name:

SYSEYE

Certification:

FDA

Model Number:

RetiCam 3100(Mini)

Contact Us

Request A Quote
Product Details
Product Name:
Directly Photography Patients' Retina Non Mydriatic Fundus Camera
Dimensions:
380mm(L)x550mm(W)x475mm(H)
Weight:
23.5kg
Power Supply:
100-240v 50/60HZ
Working Distance:
17mm
Minimum Pupil Size:
≥2.8mm
Field Of View:
50°
Feature:
Directly Photography Patients' Retina
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$7,500.00-$8,300.00
Packaging Details
380mm(L)x550mm(W)x475mm(H)
Delivery Time
5 working days
Payment Terms
T/T
Supply Ability
100
Product Description

Directly Photography Patients' Retina And Capture Fundus Images Non Mydriatic Fundus Camera



Non Mydriatic Fundus Camera is to take photos of the fundus of the eye through a fundus camera. Can clearly see the retinal blood vessels, macular area, optic nerve, is of great significance to the diagnosis of various types of eye disease, check is simpler, a few minutes to complete, no pain, there is a vision loss could be presbyopia may also be ophthalmology, need through the slit lamp examination and fundus examination can be confirmed.



Specification of Non Mydriatic Fundus Camera

Acquisition modes
Non Mydriatic Fundus Camera
Field of view
50°
Working distance
17mm
Minimum pupil size
≥2.8mm
Focus modes
Auto/manual
Exposure modes
Auto /manual
Operation
Auto /manual
Photography
SLR camera
Camera
CCD
Diopter compensation
±25D
Fixation
External fixation / internal fixation
Autofocus assist light
Infrared LED
DICOM 3.0
Yes
Customization AI port
Yes



Working principles of Non Mydriatic Fundus Camera

RetiCam 3100, based on near-infrared light imaging technology, can capture the required visible light images of fundus exposed to visible light within milliseconds (no enough time for pupils to shrink).

What are features of our Non Mydriatic Fundus Camera ?

1. Onc-key touch, picture got automatically

2. Double cameras system, get focus position accurately and quickly

3. Non-mydriatic,automatic focus,automatic exposure

4. Smart operation:automatic,simple,fast

5. 10.1 inch TFT touch-color screen with concise interface design,each indication presented clearly



First step: input patient information

Second step:adjust eyeline locate at range of pupil area,center position is not necessary

Final step:click "take picture",machine will move chin rest and find center of pupil automatically,focus automatically,exposure automatically,picture taken automatically within 10 seconds.

CCD Non Mydriatic Fundus Camera Retinal Imaging No Pain 0

CCD Non Mydriatic Fundus Camera Retinal Imaging No Pain 1

CCD Non Mydriatic Fundus Camera Retinal Imaging No Pain 2

Company Introduction

CCD Non Mydriatic Fundus Camera Retinal Imaging No Pain 3

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost  applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.

CCD Non Mydriatic Fundus Camera Retinal Imaging No Pain 4
