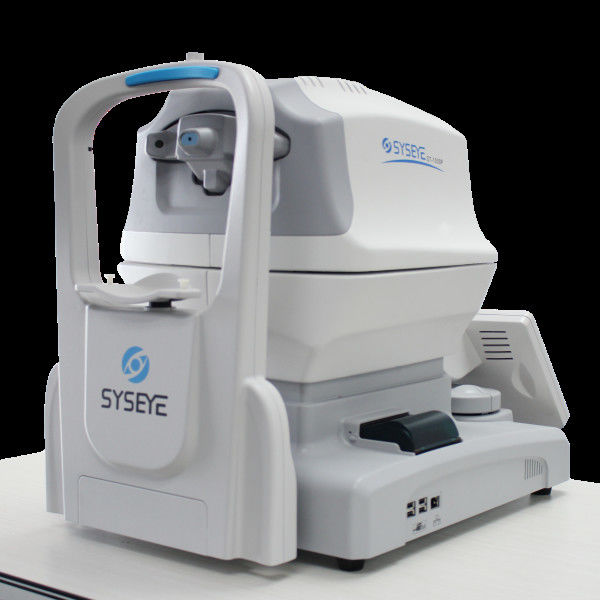

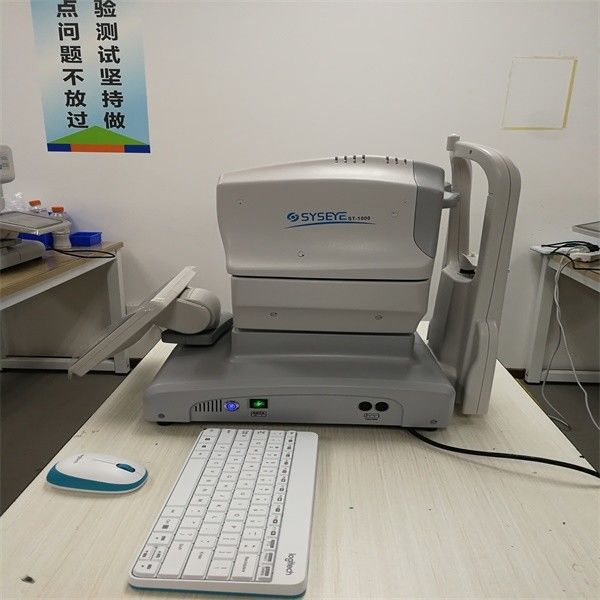

Auto 3-D Positioning Of Xyz Results In Precise And Reliable Measurement Non Contact Tonometer
Non-contact tonometer, it is a very common clinical examination intraocular pressure instrument, the principle is to use a controlled pulse air, air pressure has the characteristics of linear increase, the central part to corneal constant area is flat, with the aid of microcomputer feel corneal surface reflected light and the time required to flatten the area, measure the intraocular pressure. The advantage of the non-contact tonometer is that it avoids cross-infection caused by direct contact with the subject through the tonometer and does not require topical anesthesia
Auto tonometer utilizes image control and feature recognition for auto 3-D positioning of xyz with reliable judgment and measurement results, and easy to operate. The air non-contact approach to measure IOP can also be used for corneal thickness (ST-1000P).
Non Contact Tonometer specification
| Intraocular pressure (IOP) measuring range | 1mmHg~ 30mmHg /1mmHg ~60mmHg ( precision of 1mmHg) |
| Measuring system | dual sensor system of light and pressure |
| Working distance | ≥11mm |
| R/L | automatic detection and display |
| Measuring result | 10 times per eye; 3 times result printing per eye |
| Recording | build-in printer |
| Measuring mode | auto/manual |
| Movement range | ≥30mm(front to back)/ 90mm(left to right)/ 30mm(vertical) |
| Jaw layer vertical movement | ≥30mm(front to back)/ 90mm(left to right)/ 30mm(vertical) |
| Display mode | 10.1-inch HDMI color LED touch monitor |
| Output port | USB2.0 |
Product Description Of Non Contact Tonometer
Screen color and touch,
Rotating screen like Topcon.
Motorized chinrest
Auto tracking eye , you can select auto or manual .
if select auto , will automatic adjust the chinrest distance , height, and shoot air to measure . two second finish .
Intraocular pressure (IOP) measuring range: 1mmHg~ 30mmHg /1mmHg ~60mmHg ( precision of 1mmHg)
Measuring system: dual sensor system of light and pressure
Working distance:≥11mm
R/L: automatic detection and display
Measuring result: 10 times per eye; 3 times result printing per eye
Recording: build-in printer
Measuring mode: auto/manual
Focus: when luminous spot is in the focus frame, 2 modes can be chosen.
Auto mode: auto intraocular pressure measurement
Manual mode: when it's good focus, the frame will turn yellow into green, and click to start the measurement
Error indication: if the measurement signal is weak, the IOP will be enclosed by ( ), or display “ERR ”
Safety limit button: install measurement for minimum distance between head and patient
Safety functions: the distance between air nozzle and cornea is controlled in preset range(such as 11mm); it will stop going forward when the cornea is too closed to air head.
Movement range:≥30mm(front to back)/ 90mm(left to right)/ 30mm(vertical)
Jaw layer vertical movement: 0~65mm with under jaw layer
Display mode: 10.1-inch HDMI color LED touch monitor
Output port: USB2.0
Working platform: electric elevating platform
