Electromagnetic Ultrasound Diagnostic Machine CE Retinal Detachment Detection

Electromagnetic Ultrasound Diagnostic Machine CE Retinal Detachment Detection

10MHz Ultrasound Diagnostic Machine

Electromagnetic Ultrasound Diagnostic Machine

CE eye ultrasound machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
B Probe Uses Electromagnetic Drive Ophthalmic Ultrasonic Scanner
340mm(L) X 320mm(W) X 115mm(H)
Power Supply:
100~240V 50/60V
Probe Frequency:
Measuring Mode:
Measuring Range:
Over 5mm-40mm
Long Service Life
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
340mm(L) x 320mm(W) x 115mm(H)
Delivery Time
5 working days
Payment Terms
Supply Ability
Product Description

B Probe Uses Electromagnetic Drive Has A Long Service Life Ophthalmic Ultrasonic Scanrne


Retinal detachment, choroidal detachment and pigment membrane leakage syndrome can all be detected by Ophthalmic Ultrasonic Scanrne

, and can be used to identify the location, extent, shape, and level of detachment. Vitreous hemocele and vitreous machinery can also be found by ultrasonic examination, especially when accompanied by poor lens or vitreous transmittance, the effect of ultrasound can not be replaced by other optical examination methods. Ultrasound examination can determine whether there is a foreign body in the eyeball, can determine the location of the foreign body, the distance from the eye wall, the size and shape of the foreign body (which helps to determine the treatment method), whether the foreign body can move, whether there is combined with retinal detachment, vitreous opacity, and can determine whether the foreign body is magnetic material under ultrasonic monitoring.

introduced of Ultrasonic Scanner

RetiWave1000 ophthalmic AB ultrasound diagnostic instrument is a complete ultrasound system, which has the following basic functions:

1. A super function is the measurement of eye axis length.

2. B ultrasonic function is fan scan.

3. IOL calculation function USES 6 formulas to calculate the artificial crystal.




1) 12.1" color and touch screen .

2) Ultrasonic Scanner With the same software as Quantel , top one in China

With advanced intelligent digital software and parameters of freezed and Stored images could be adjusted voluntarily.

3) Can have different results on the report according to different constants A

Scan A measures data for every part of the eyeball as anterior chamber depth, lens thickness axial length and so on which are needed in ophthalmic surgeries , and calculates IOL by axial length.

4) B scanner use electromagnetic ,better save B probe life .

Scan B displays profile images of the eyeball clearly and directly. Scanning anatomical forms and nidi inside the eyeball, doctors can diagnose accurately for examination of cataract , vitreous body disease, ocular trauma,detachment of retina or choroid , macula disease , and intraocular tumor, etc

5) B scanner ,video playbackof 100 images.

6) A scanner , one group with 10 data to get average ,At the same time the accuracy is 0.05mm


Technical Data


A Scan biometry
Probe frequency 10MHz
Measuring mode contact
Measuring range Over 5mm-40mm
Measuring error ≤±0.05mm
Measuring type Length of optic axis , automatic calculation , result analysis auto ,
Image freezing auto+preservable, manual
Intraocular lens implantation (IOL)formula SRK-T, SRX II, HOLLADAY, BINKHORST-II, HOFFER-Q,HAIGIS
Gain 20-110dB
Time gain adjustment 0-30dB
B Scan patterns
Probe frequency 10MHz
Probing depth ≥50mm
Axial Resolution ≤0.2mm
Lateral resolution ≤0.3mm
Gain adjustment 20-110dB
Time gain adjustment 0-30dB
Operation mode Eyecup, gel, aqueous capsule
Post-processing measuring tools Area, length, mark and annotation
Review 100 images available
Size 340mm*320mm*115mm
weight 10kg
Power supply 100-240V 50/60Hz

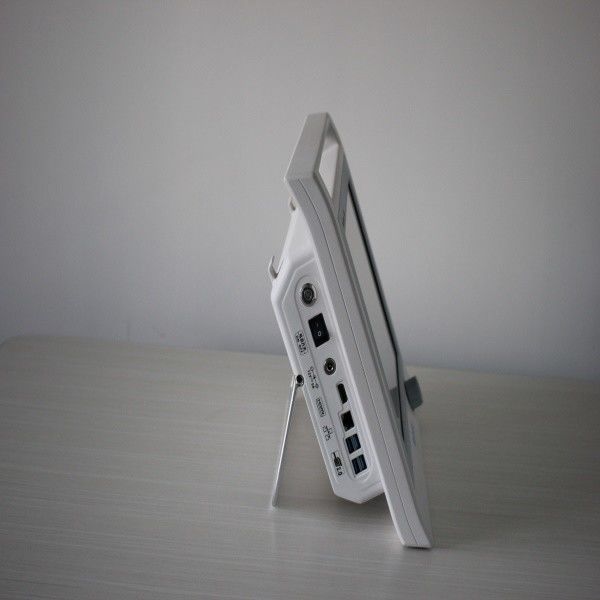

Electromagnetic Ultrasound Diagnostic Machine CE Retinal Detachment Detection 0

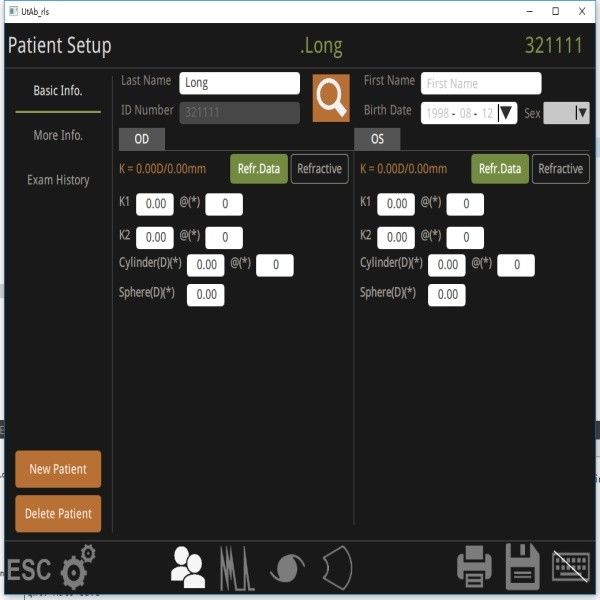

SOFTWARE OF Ultrasonic Scanner

AB-1000 Quantel same software ophthalmic ultrasound ab Scan





AB-1000 Quantel same software ophthalmic ultrasound ab Scan


Company Introduction

Electromagnetic Ultrasound Diagnostic Machine CE Retinal Detachment Detection 3

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.

Electromagnetic Ultrasound Diagnostic Machine CE Retinal Detachment Detection 4
