TUV Air Puff Tonometer 30mmHg Avoid Corneal Cross Infection

Short Examination Time Avoids The Possibility Of Corneal Cross-Infection Automatic Tonometer

Automatic Tonometer, have no a joystick, automatic focusing, machine automatic eye tracking, check the advantages of no noise, automatic jet pressure use will produce very gentle jet waves, through the waves hit on the patients of corneal reflection back pressure value, to determine the intraocular pressure of patients. The patient can simply rest on the device's forehead to focus on the object inside the machine, using the patented joystick-free autofocus system, and the doctor can activate the IOP measurement program with a button. The left and right slide of the forehead bracket, and the internal software has been upgraded to automatically recognize the left and right eyes.

Automatic Tonometer utilizes image control and feature recognition for auto 3-D positioning of xyz with reliable judgment and measurement results, and easy to operate. The air non-contact approach to measure IOP can also be used for corneal thickness (ST-1000P).

Automatic Tonometer specification

Product Description Of Automatic Tonometer

Screen color and touch,

Rotating screen like Topcon.

Motorized chinrest

Auto tracking eye , you can select auto or manual .

if select auto , will automatic adjust the chinrest distance , height, and shoot air to measure . two second finish .

Intraocular pressure (IOP) measuring range: 1mmHg~ 30mmHg /1mmHg ~60mmHg ( precision of 1mmHg)
Measuring system: dual sensor system of light and pressure
Working distance:≥11mm
R/L: automatic detection and display
Measuring result: 10 times per eye; 3 times result printing per eye
Recording: build-in printer
Measuring mode: auto/manual
Focus: when luminous spot is in the focus frame, 2 modes can be chosen.
Auto mode: auto intraocular pressure measurement
Manual mode: when it's good focus, the frame will turn yellow into green, and click to start the measurement
Error indication: if the measurement signal is weak, the IOP will be enclosed by ( ), or display “ERR ”
Safety limit button: install measurement for minimum distance between head and patient
Safety functions: the distance between air nozzle and cornea is controlled in preset range(such as 11mm); it will stop going forward when the cornea is too closed to air head.
Movement range:≥30mm(front to back)/ 90mm(left to right)/ 30mm(vertical)
Jaw layer vertical movement: 0~65mm with under jaw layer
Display mode: 10.1-inch HDMI color LED touch monitor

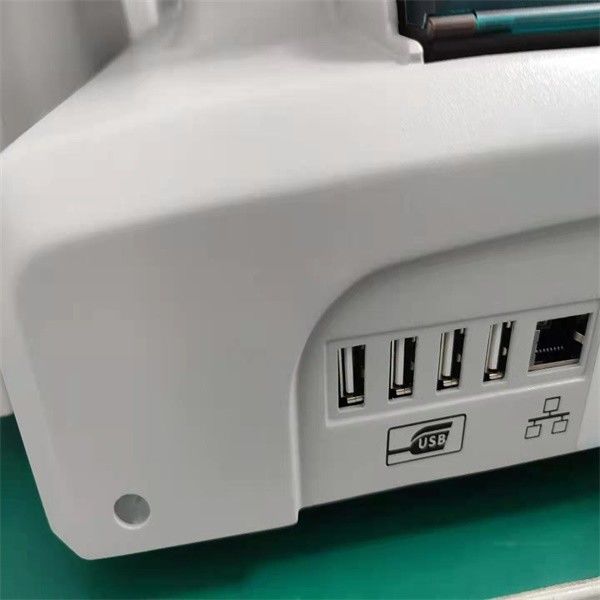

Output port: USB2.0
Working platform: electric elevating platform
