Place of Origin:
China
Brand Name:
SYSEYE
Certification:
TUV
Model Number:
BIO-1100
Contact Us

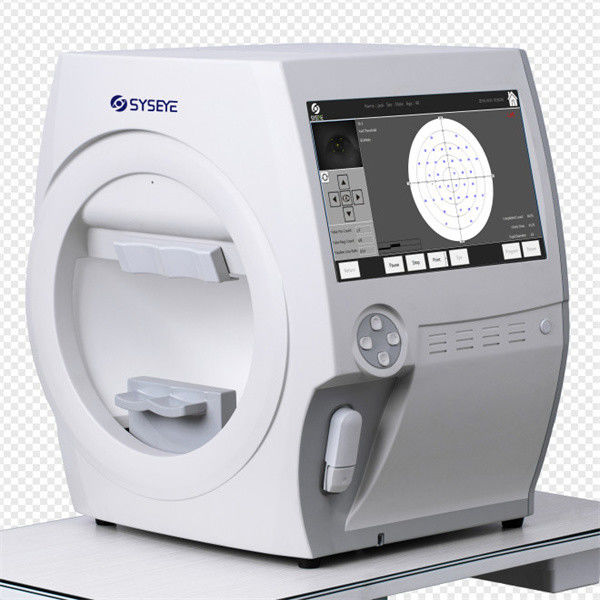

automated visual field test machine medical examination equipment
The Visual Field Analyzer (BIO-1000/BIO-1000-Plus) instrument belongs to the category of medical examination equipment. It is an important means to determine the development of glaucoma, optic chiasm damage, neurological disease, toxic amblyopia, retinal disease, choroidal disease and other diseases by alignment the change of visual field. This product For scientific research, teaching, and clinical use. Perimeter is suitable for auxiliary diagnosis of glaucoma. This method is fast, but less reliable, and is mainly used for eye disease screening. B. Threshold examination, which is the most accurate visual field quantitative examination, has the disadvantage that the examination takes about 15min for each eye and the patient is prone to fatigue. C. Rapid threshold examination, through intelligent trend analysis, reduces the examination steps and only takes 5min for each eye examination.
| Specification | ||
| Testing scope | 90° | |
| Testing distance | 30CM | |
| Background light | white31.5asb,yellow315asb | |
| Visual target | 0.08asb---10000asb(0-51DB) | |
| Target size | GoldmannⅠ, II ,III,IV,V | |
| Visual target stimulation time | 200ms | |
| Visual target interval time | Standard and custom | |
| Threshold policy | Macula,10-2,24-2,30-2,60-4,nasal side | |
| Upper threshold policy | C-40,C-64,C-76,FF-81,FF-120,FF-135…… | |
| Special detection strategy | Esterman monocular,Esterman binocular,upper36°screening,blind point testing | |
| Yellow-blue testing | Standard 440nm blue visual target + 315asb OG530yellow background brightness | |
| Visual target | Red ,blue | |
| Dynamic policy | Standard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic | |
| Custom policy | Static custom dynamic custom | |
| Pupil size measurement | Auto | |
| Fixation monitoring | Physiological blind spot monitoring,eye position monitoring,eye position moving alarm,eye tracking curve | |
| Environment light testing | Auto | |
| Analysis software | reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis | |
| System | Win7 above | |
| Others | ||
| Size | 412mm(length)* 497mm(width)* 513mm(height) | |
| Wight | 17kg | |
| Power |
100-240V HZ:50-60Hz |
|
Feature of Perimetry Test Machine
* Strictly implement international high standards in technology.
* The database is very rich and complete, identifying more subtle early visual field defects.
* It is easier to diagnose glaucoma by analyzing the half vision of glaucoma.
* GPA analysis of glaucoma progression was upgraded, and mild glaucoma developed significantly.
Perimetry Test Machine features the followingEasy operation
Touch screen design speeds data input.
Menu and icon commands simplify operation.
On-screen video eye monitor is standard on all models.
Confirmation screens reduce unintentional data loss.
A keyboard and trackball or mouse can be connected to the Visual Field Analyzer as optional
datainput devices.
Purpose of visual field examination
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
