Photography LED Automated Fundus Camera Machine For Hospital

Photography LED Automated Fundus Camera Machine For Hospital

automated fundus photography machine

LED Automated Fundus Camera

automated fundus Camera For Hospital

Place of Origin:


Brand Name:




Model Number:

RetiCam 3100

Contact Us

Request A Quote
Product Details
Product Name:
Clear Image Automated Fundus Camera
Center Of View:
≥60 Lp/mm
Digital Camera
Field View:
Working Distance:
Minimum Pupil:
Focus Modes:
Fixing Light:
Internal Fixing Light (LED)
Payment & Shipping Terms
Minimum Order Quantity
Delivery Time
5 working days
Payment Terms
, T/T
Supply Ability
Product Description

automated fundus camera photography machine used in a hospital/clinic


Automated fundus camera RetiCam 3100 can be used to capture the anterior and posterior eye images. It has a field of view of 50 degrees for fundus imaging.

Automated Fundus Camera Reticam 3100 is a highly recognized and popular automatic fundus imaging system around the world. Through dual camera imaging, image control and feature recognition, eye XYZ 3D automatic positioning is realized. Through CCD imaging feedback, the exposure is measured, and the exposure intensity is automatically and accurately determined, without the need for a doctor's complex operation. By controlling the focusing step length according to the image resolution, the image definition can be automatically adjusted to obtain a clear and accurate fundus image and help doctors make accurate judgments for patients.

In default setting, this product works for a pupil with a standard diameter of 4.0 mm or larger.

In a small pupil mode, it can take fundus images for pupils with a diameter of 3.3 mm or larger.



Main specification


Field of view 50°
Field of view tolerance ±7%
Center of view ≥60 lp/mm
Field of view center (r/2) ≥40 lp/mm
At the edge of the field of view (r) ≥25 lp/mm
Magnification 1.3 times
Required pupil diameter 4.0 mm or more (3.3 mm or more when using the small pupil shooting function)
Working distance 35 mm
Focus adjustment range ±25D
Shooting light Auto: with shooting mode
  Manual: can be set manually
light source
Illumination light Infrared led
Shooting light Xenon lights
reflected light
Scattered light
camera Digital camera
Fixing light Internal fixing light (LED)
  External fixation light
Moving range
Stage 90 mm left and right, 35 mm front and rear
Main unit moves vertically 30 mm
Chin-rest tray movement range 60 mm
Rated power supply AC 100V~240V,50/60Hz
size 380 mm(L)x 550 mm(W)x 475 mm(H)

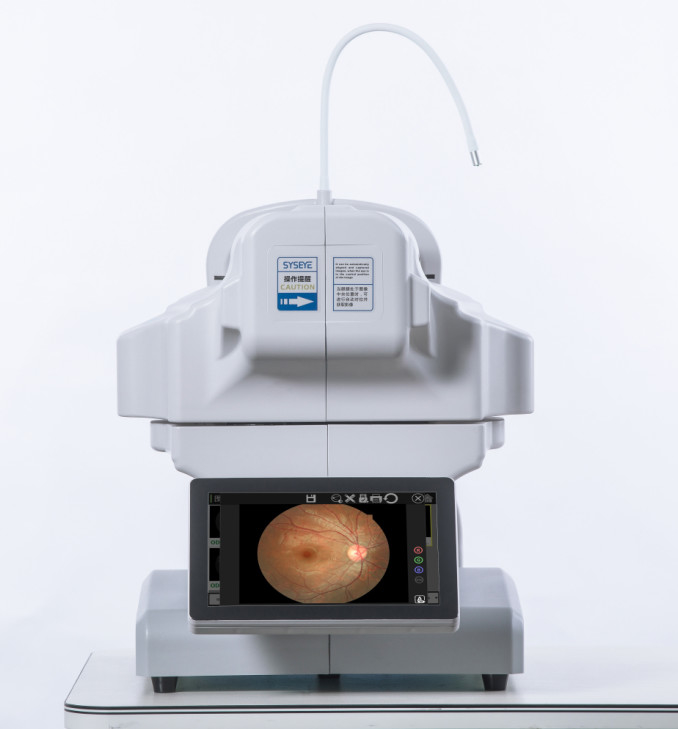

Photography LED Automated Fundus Camera Machine For Hospital 0





Company Introduction

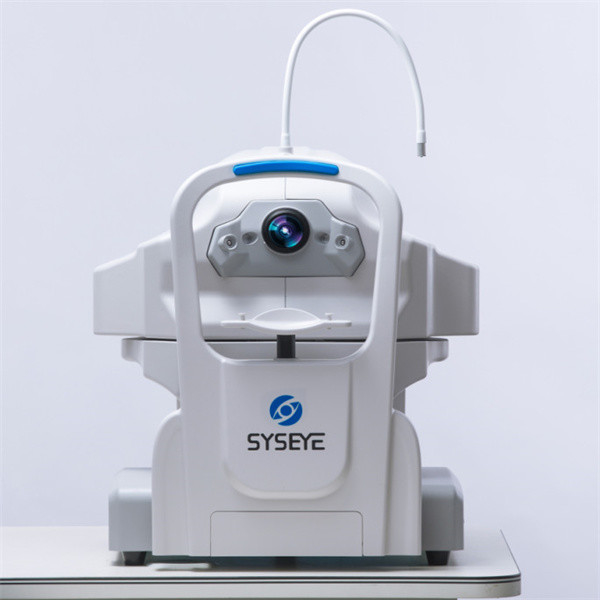

Photography LED Automated Fundus Camera Machine For Hospital 1
