60Hz Automatic Fundu Dual Camera System Intellegent Operation

60Hz Automatic Fundu Dual Camera System Intellegent Operation

Automatic fundus dual camera

60Hz Automatic Fundu Dual Camera

intellegent operation fundus dual camera

Place of Origin:


Brand Name:




Model Number:

RetiCam 3100

Contact Us

Request A Quote
Product Details
Product Name:
FAF Optional Automated Fundus Camera
DICOM 3.0:
Customization AI Port:
Field View:
Working Distance:
Minimum Pupil:
Focus Modes:
Power Supply:
100-240V 50/60Hz
Payment & Shipping Terms
Minimum Order Quantity
Delivery Time
5 working days
Payment Terms
, T/T
Supply Ability
Product Description

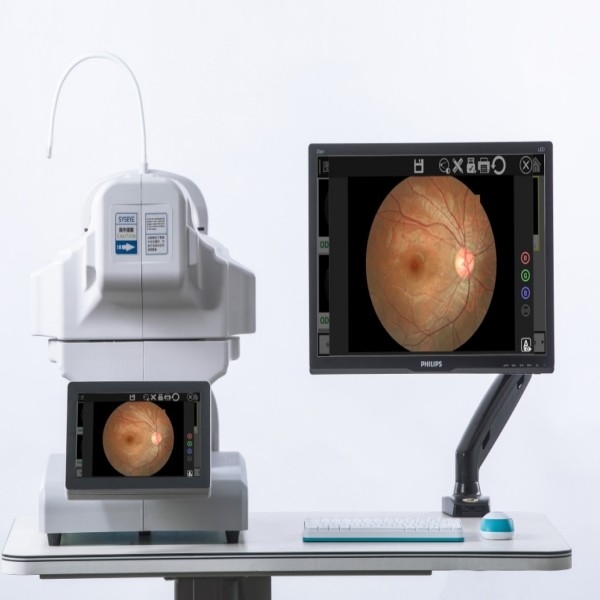

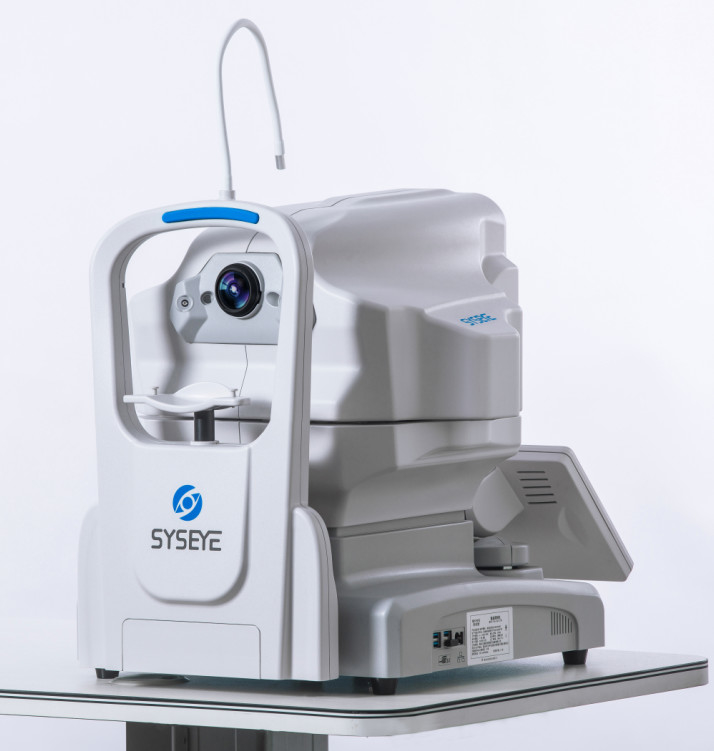

Automatic fundus camera dual camera system intellegent operation


Automated Fundus Camera  Five automatic functions

1. Three-dimensional automatic tracking.

2. Auto focus.

3. Automatic switch from the front part to the fundus of eyes.

4. Automatic shooting.

5. Automatic printing and output - TheRETICAM 3100  device can always achieve seamless photography.


Automated Fundus Camera RETICAM 3100  Fundus autofluorescence (FAF), as a new retinal imaging technology, has been widely used in clinical medicine since its advent. It has been demonstrated that FAF can be used to diagnose and monitor many fundus diseases, including posterior uveitis, quickly and noninvasively.

As a new application of non-invasive, non-contact, non-invasive, rapid and repeatable observation and monitoring of many fundus diseases including posterior uveitis, FAF has begun to play its unique role, and has attracted more and more attention of ophthalmologists and medical technicians.


Acquisition Modes Automated Fundus Camera/mydriatic Anterior photography /Red-free(optional)(FFA)/(FAF)
Field View 50°
Working Distance 35mm
Minimum Pupil ≥3.3mm
Focus Modes Manual/Auto
Alignment Modes Double dots auxiliary
Exposure Manual /Auto
Photography SLR Camera
Image definition 24 Megapixel
Compensation ±25D
Fixation External /Internal (any position available)
DICOM 3.0 Support


For patients who have an allergic reaction to strong light or who cannot receive light stimulation, please consult the physicians before imaging.

                                               Automated Fundus Camera in the world
operation automatic(one key taking picutre)/manual automatic(one key taking picutre)/manual automatic(one key taking picutre)/manual
Acquisition modes fundus/anterior/? fundus/anterior/red-free filter fundus/anterior/red-free filter/FFA(optional)/FAF(optional)
Filed of view 45 degree 40-45degree 45-50degee
Mosic degee   80 degree 135degree
Minimum pipil size 3.3mm 3.5mm 3.3mm
Resolution above 18megapiexl sensor size:5 megapixel sensor resoultion: 48 pixel/degree above18 megapixel (24 megapixel optional )
Fixation 9 internal + 1 outside fixaiton 7 internal fixation countless fixaiton, any position is available during range + 1 outside fixation
Technology of focus     Dual camrea technology
exposure ligh standard standard new technology, more soft, one patient same eye can take picuture consecutive with almost same performace
