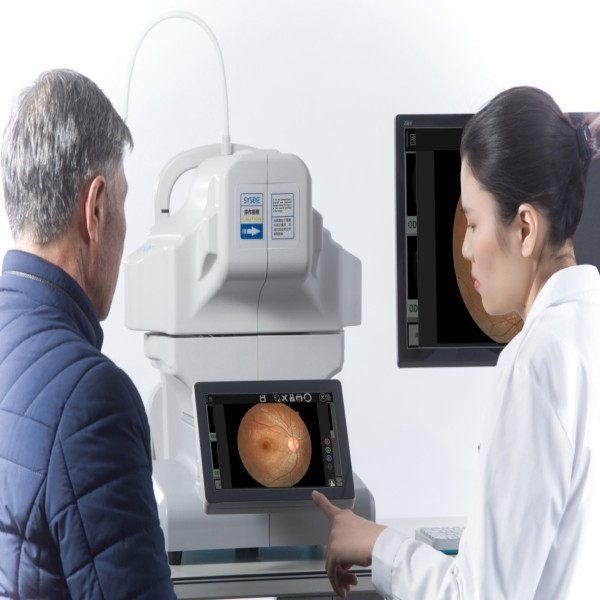

Digital Eye Automated Fundus Camera High Definition Images 3.3mm Small Pupils

Digital Eye Automated Fundus Camera High Definition Images 3.3mm Small Pupils

High Definition Images fundus camera

3.3mm Small Pupils fundus camera

Digital Eye Automated Fundus Camera

Place of Origin:


Brand Name:




Model Number:

RetiCam 3100

Contact Us

Request A Quote
Product Details
Product Name:
Non-mydriatic And Autoexposure Fundus Camera
90 Mm Left And Right, 35 Mm Front And Rear
Main Unit Moves Vertically:
30 Mm
Field View:
Working Distance:
Minimum Pupil:
Focus Modes:
Spectral Wavelength:
305 Nm~1100 Nm
Payment & Shipping Terms
Minimum Order Quantity
Delivery Time
5 working days
Payment Terms
, T/T
Supply Ability
Product Description

digital eye fundus camera high definition images 3.3mm small pupils



Automated Fundus Camera RETICAM 3100 is based on the traditional fundus camera of our company, after years of research and development, through binocular stereo vision and XYZ 3D image feature recognition automatic positioning, and through the division line to achieve automatic focus. Through CCD imaging feedback, the exposure light is measured and the exposure intensity is determined automatically and correctly. Focusing step is controlled according to the image resolution, and image definition is adjusted to obtain clear and accurate fundus image.Automated Fundus Camera  RetiCam 3100  has excellent optical imaging capability, easy to operate, less dependence on the operator, easier to obtain images.In default setting, this product works for a pupil with a standard diameter of 4.0 mm or larger.

In a small pupil mode, it can take fundus images for pupils with a diameter of 3.3 mm or larger.



Field of view 50°
Field of view tolerance ±7%
Center of view ≥60 lp/mm
Field of view center (r/2) ≥40 lp/mm
At the edge of the field of view (r) ≥25 lp/mm
Magnification 1.3 times
Required pupil diameter 4.0 mm or more (3.3 mm or more when using the small pupil shooting function)
Working distance 35 mm
Focus adjustment range ±25D
Shooting light Auto: with shooting mode
  Manual: can be set manually
light source
Illumination light Infrared led
Shooting light Xenon lights
reflected light
Scattered light
camera Digital camera
Fixing light Internal fixing light (LED)
  External fixation light
Moving range
Stage 90 mm left and right, 35 mm front and rear
Main unit moves vertically 30 mm
Chin-rest tray movement range 60 mm
Rated power supply AC 100V~240V,50/60Hz
size 380 mm(L)x 550 mm(W)x 475 mm(H)


weight About 26.5kg
When in maximum light intensity/hole bar state
Spectral wavelength 305 nm~1100 nm

Digital Eye Automated Fundus Camera High Definition Images 3.3mm Small Pupils 0Digital Eye Automated Fundus Camera High Definition Images 3.3mm Small Pupils 1


The design of the RetiCam 3100 complies with the EMC standard IEC 60601-1-2 (EN 60601-1-2) for medical electrical equipment. The installation and use of the device must comply with the following EMC statement.

  • The parameters can be normally displayed according to the expected setting, and the function buttons can be used normally, and there should be no error indication during operation.
  • The chin-rest rest and the body work properly and do not produce unexpected movements.
