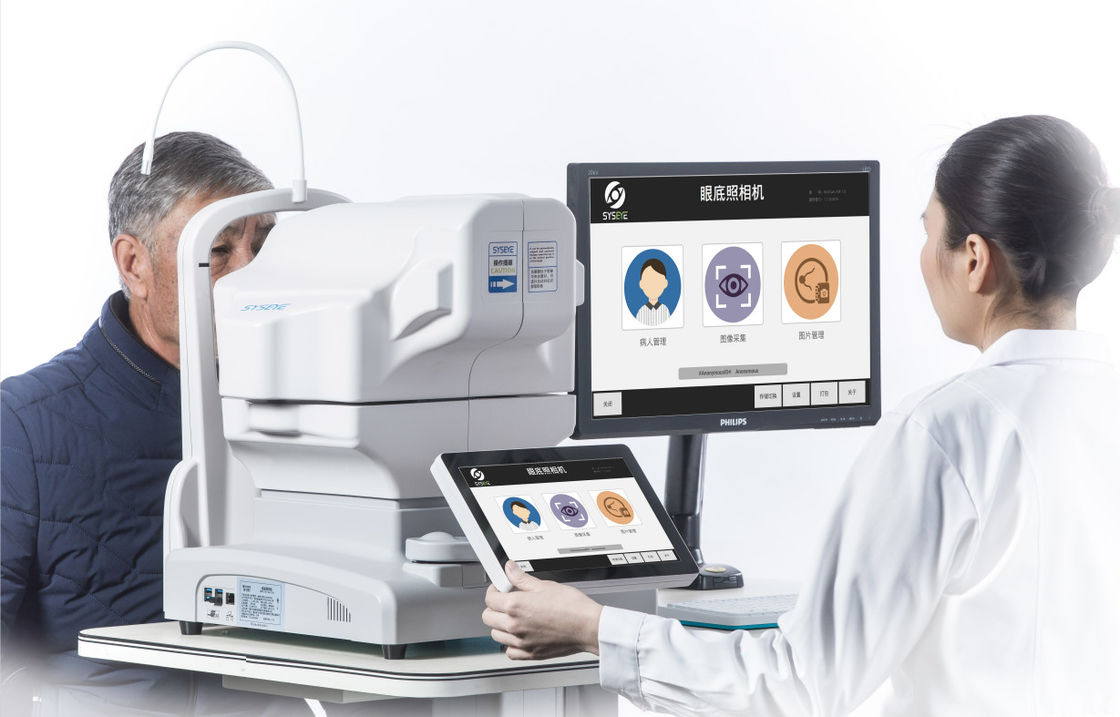

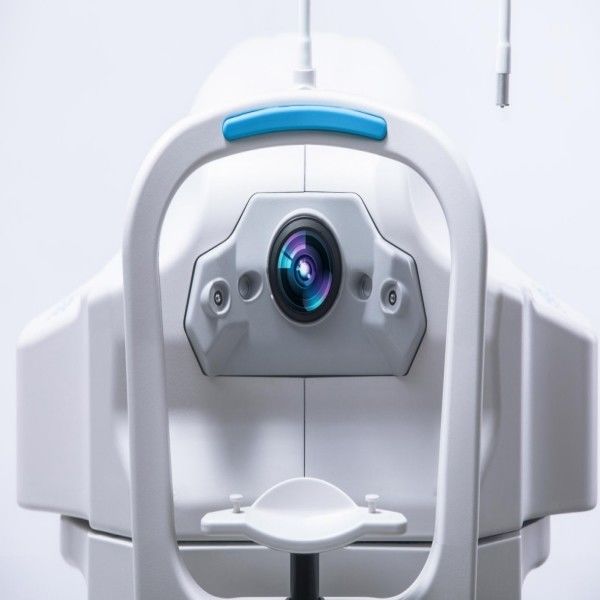

ultra wide field fundus camera CE DICOM 3.0 Gamma,contrast,brightness,color of image can be adjusted
Automated Fundus Camera Five automatic functions
1. Three-dimensional automatic tracking.
2. Auto focus.
3. Automatic switch from the front part to the fundus of eyes.
4. Automatic shooting.
5. Automatic printing and output - TheRETICAM 3100 device can always achieve seamless photography.
Automated Fundus Camera RETICAM 3100 Fundus autofluorescence (FAF), as a new retinal imaging technology, has been widely used in clinical medicine since its advent. It has been demonstrated that FAF can be used to diagnose and monitor many fundus diseases, including posterior uveitis, quickly and noninvasively.
| Field of view | 50° |
| Field of view tolerance | ±7% |
| Resolution | |
| Center of view | ≥60 lp/mm |
| Field of view center (r/2) | ≥40 lp/mm |
| At the edge of the field of view (r) | ≥25 lp/mm |
| Magnification | 1.3 times |
| Required pupil diameter | 4.0 mm or more (3.3 mm or more when using the small pupil shooting function) |
| Working distance | 35 mm |
| Focus adjustment range | ±25D |
| Shooting light | Auto: with shooting mode |
| Manual: can be set manually | |
| light source | |
| Illumination light | Infrared led |
| Shooting light | Xenon lights |
| reflected light | |
| Scattered light | |
| camera | Digital camera |
| Fixing light | Internal fixing light (LED) |
| External fixation light | |
| Moving range | |
| Stage | 90 mm left and right, 35 mm front and rear |
| Main unit moves vertically | 30 mm |
| Chin-rest tray movement range | 60 mm |
| Rated power supply | AC 100V~240V,50/60Hz |
| size | 380 mm(L)x 550 mm(W)x 475 mm(H) |
| weight | About 26.5kg |
| When in maximum light intensity/hole bar state | |
| Spectral wavelength | 305 nm~1100 nm |
