Place of Origin:
China
Brand Name:
SYSEYE
Certification:
FDA
Model Number:
RetiCam 3100
Contact Us

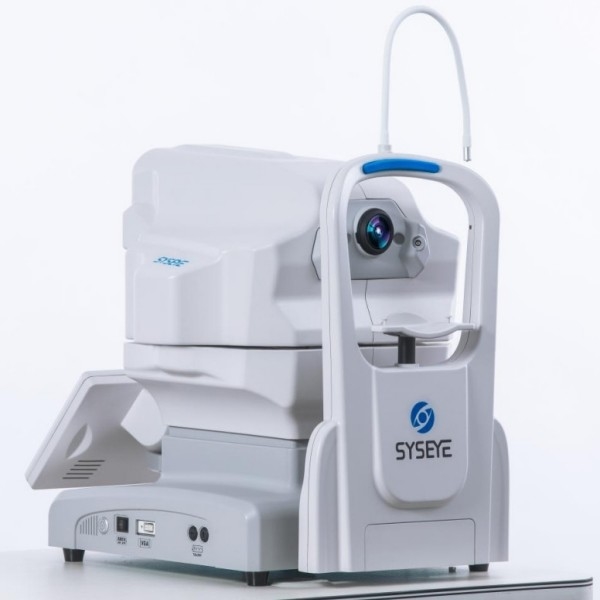

ultra wide field fundus camera with small pupil size 3.3mm one key click
ultra wide field fundus camera RetiCam 3100 is a world-class automatic fundus imaging system. Through dual camera imaging, image control and feature recognition, XYZ 3D automatic location is realized. Through CCD imaging feedback, the exposure light is measured and the exposure intensity is determined automatically and correctly. Focusing step is controlled according to the image resolution, and image definition is adjusted to obtain clear and accurate fundus image.ultra wide field fundus camera RetiCam 3100 has excellent optical imaging capability, easy to operate, less dependence on the operator, easier to obtain images.
| Acquisition Modes | Automated Fundus Camera/mydriatic Anterior photography /Red-free(optional)(FFA)/(FAF) |
| Field View | 50° |
| Working Distance | 35mm |
| Minimum Pupil | ≥3.3mm |
| Focus Modes | Manual/Auto |
| Alignment Modes | Double dots auxiliary |
| Exposure | Manual /Auto |
| Photography | SLR Camera |
| Image definition | 24 Megapixel |
| Compensation | ±25D |
| Fixation | External /Internal (any position available) |
| DICOM 3.0 | Support |
Technical characteristics of the light sources
| Light source/function | Wavelength range | Single light or multiple | Output power/energy (at corneal) | Weighted irradiance | Maximum expected exposure duration |
| Illumination | 770nm-900nm | single | 1.87mW | Thermal | 100 seconds |
| Photography | 455nm-695nm | single | 167.42μJ | Thermal, Blue & aphakic | 0.0016seconds |
| Fixation internal | 485nm-625nm | single | 0.078μW | Thermal, Blue & aphakic | 100 seconds |
| Fixation external | 530nm-600nm | single | 0.031μW(15cm from the source) | Thermal, Blue & aphakic | 100 seconds |
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
