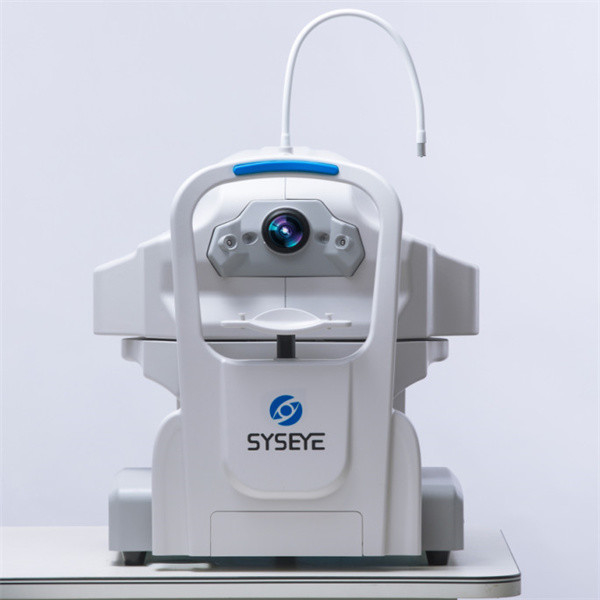

Anterior Photography Automated Fundus Camera /Red-Free/FFA//DICOM/AI System

Anterior Photography Automated Fundus Camera /Red-Free/FFA//DICOM/AI System

Anterior photography Automated Fundus Camera

AI System Automated Fundus photography

35mm Automated Fundus photography

Place of Origin:


Brand Name:




Model Number:

RetiCam 3100

Contact Us

Request A Quote
Product Details
Product Name:
Professional HD SLR Camera Fundus Camera
Diopter Compensation:
Fixing Light:
Internal Fixing Light (LED)
Field View:
Working Distance:
Minimum Pupil:
Focus Modes:
Spectral Wavelength:
305 Nm~1100 Nm
Payment & Shipping Terms
Minimum Order Quantity
Delivery Time
5 working days
Payment Terms
, T/T
Supply Ability
Product Description

Automated Fundus Camera: Anterior photography/Red-free/FFA/FAF/50°/LED/DICOM/AI System


Automated Fundus Camera RETICAM 3100 is based on the traditional fundus camera of our company, after years of research and development, through binocular stereo vision and XYZ 3D image feature recognition automatic positioning, and through the division line to achieve automatic focus. Through CCD imaging feedback, the exposure light is measured and the exposure intensity is determined automatically and correctly. Focusing step is controlled according to the image resolution, and image definition is adjusted to obtain clear and accurate fundus image.Automated Fundus Camera RetiCam 3100 has excellent optical imaging capability, easy to operate, less dependence on the operator, easier to obtain images


Automated Fundus Camera  high-resolution digital camera, providing high-quality fundus image color photo, no red light, FFA, ICG, self-fluorescence and other imaging modes can be selected for small pupil imaging, convenient for the imaging of elderly patients and patients with irregular pupils integrated fuselage design, touch type operation panel, Seamless combination with ImageNet image processing software facilitates data acquisition, processing, backup and analysis.




Acquisition Modes Automated Fundus Camera/mydriatic Anterior photography /Red-free(optional)(FFA)/(FAF)
Field View 50°
Working Distance 35mm
Minimum Pupil ≥3.3mm
Focus Modes Manual/Auto
Alignment Modes Double dots auxiliary
Exposure Manual /Auto
Photography SLR Camera
Image definition 24 Megapixel
Compensation ±25D
Fixation External /Internal (any position available)
DICOM 3.0 Support


For patients who have an allergic reaction to strong light or who cannot receive light stimulation, please consult the physicians before imaging.

                                               Automated Fundus Camera in the world
operation automatic(one key taking picutre)/manual automatic(one key taking picutre)/manual automatic(one key taking picutre)/manual
Acquisition modes fundus/anterior/? fundus/anterior/red-free filter fundus/anterior/red-free filter/FFA(optional)/FAF(optional)
Filed of view 45 degree 40-45degree 45-50degee
Mosic degee   80 degree 135degree
Minimum pipil size 3.3mm 3.5mm 3.3mm
Resolution above 18megapiexl sensor size:5 megapixel sensor resoultion: 48 pixel/degree above18 megapixel (24 megapixel optional )
Fixation 9 internal + 1 outside fixaiton 7 internal fixation countless fixaiton, any position is available during range + 1 outside fixation
Technology of focus     Dual camrea technology
exposure ligh standard standard new technology, more soft, one patient same eye can take picuture consecutive with almost same performace



Anterior Photography Automated Fundus Camera /Red-Free/FFA//DICOM/AI System 0

Anterior Photography Automated Fundus Camera /Red-Free/FFA//DICOM/AI System 1

Anterior Photography Automated Fundus Camera /Red-Free/FFA//DICOM/AI System 2Anterior Photography Automated Fundus Camera /Red-Free/FFA//DICOM/AI System 3



Company Introduction

Anterior Photography Automated Fundus Camera /Red-Free/FFA//DICOM/AI System 4

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.

Anterior Photography Automated Fundus Camera /Red-Free/FFA//DICOM/AI System 5
