High Precision Eye Axial Length Measurement With Ophthalmic Optical Biometer

High Precision Eye Axial Length Measurement With Ophthalmic Optical Biometer

38mm Axial Ophthalmic Optical Biometer

10.1in Screen Ophthalmic Optical Biometer

Eye Axial Length Measurement Instrument

Place of Origin:

China

Brand Name:

SYSEYE

Certification:

CE,FDA,13485

Model Number:

AL-VIEW

Contact Us

Request A Quote
Product Details
Name:
Ophthalmic Optical Biometer
Axial Length:
14-38mm
Corneal Curvature:
5-11mm
Anterior Chamber Depth:
0.7-8mm
Pupil Diameter:
2-13mm
White To White:
0.1mm
Screen:
10.1 Inch Touch Screen
Storage:
Large Capacity Storage Of Over 60000 Data Sets
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
$9000~$12000
Packaging Details
700*430*700mm
Delivery Time
5 working days
Payment Terms
T/T
Supply Ability
100
Product Description

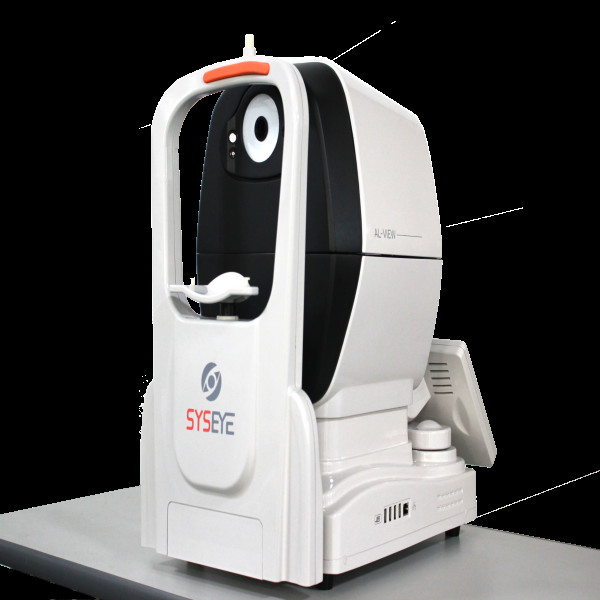

High Precision Eye Axial Length Measurement with Ophthalmic Optical Biometer



ophthalmic optical biometer that can measure and calculate the visual axis and IOL with high precision. It can measure corneal diopter, astigmatism axis, axial length, central corneal thickness, and anterior chamber depth , white-to-white distance, pupil diameter and other sets of biological data with one click., binocular measurement can be completed within 20 seconds, providing patients with a fast, accurate and comfortable measurement experience.



Product Features:



1. automatic operation without handle, one finger touch get all results automatically
2. compact design with computer build in
3. micron level ensure accurate eye axial length measurement
4. biological progress analysis available
5. built-in thermal printer
6. Nanoscale sensors to monitor signals in real time
7. One-click measurement of multiple eye biological data sets, meets various clinical needs



SPECIFICATION



Measuring Range Axial length 14-38mm
Corneal curvature 5-11mm
Anterior chamber depth 0.7-8mm
Lens thickness 1-10mm(lens)
0.13-2.5mm(intraocular lens)
Center cornea thickness 0.2-1.2mm
Cornea white to white 7-16mm
Pupil diameter 2-13mm
Curvature range 180 degree
Accuracy Axial length 0.01mm
Corneal curvature 0.01mm
Anterior chamber depth 0.01mm
Lens thickness 0.01mm
Center cornea thickness 0.01mm
White to white 0.1mm
Pupil diameter 0.01mm
Axis of sight eccentricity 0.01mm
Axis angle 1 degree
Repeatability Axial length 0.02mm
Corneal curvature (1σ)+/-30μm
Anterior chamber depth 0.02mm
Lens thickness 0.02mm
Center cornea thickness 0.02mm
White to white (1σ)+/-0.3μm
Curvature difference ±9 degree
Calculation formula of intraocular lens interface voltage/frequency
Bink Horst-Ⅱ,Holladay,Hoffer-Q,Haigis,SRK-T,SRK Ⅱ USB 2.0 window 10 AC110-240V/50HZ

High Precision Eye Axial Length Measurement With Ophthalmic Optical Biometer 0

High Precision Eye Axial Length Measurement With Ophthalmic Optical Biometer 1

High Precision Eye Axial Length Measurement With Ophthalmic Optical Biometer 2
