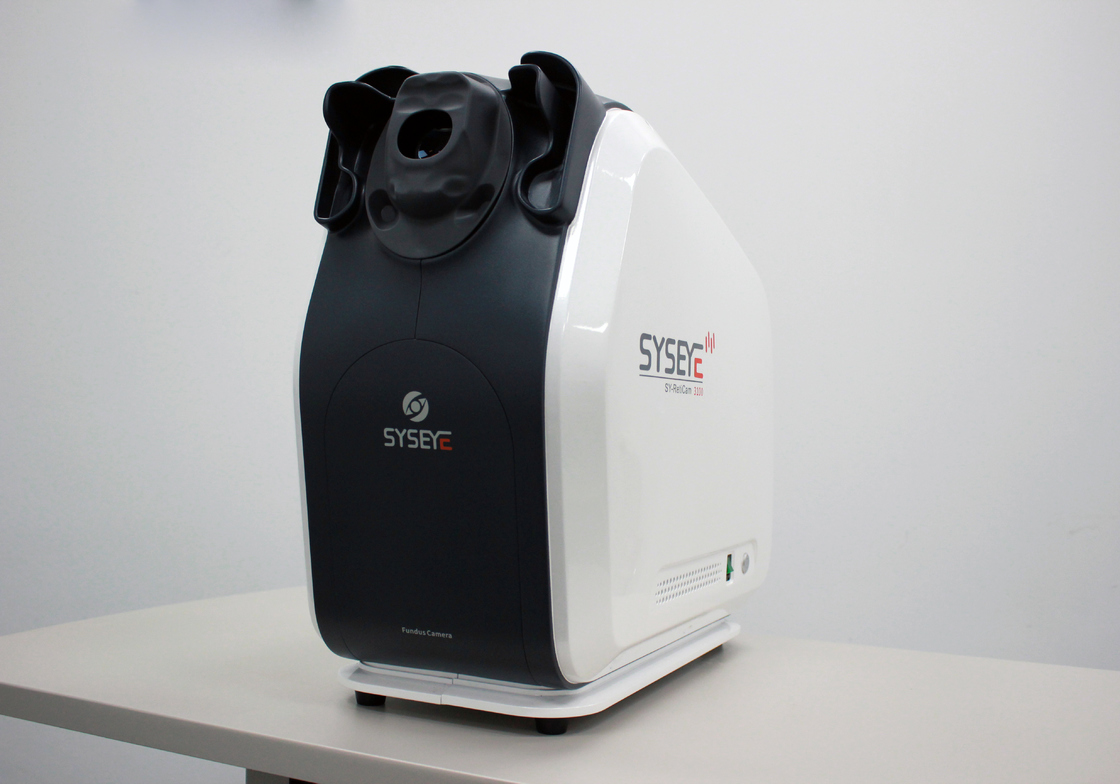

RetiCam 3100 Plus 176° Wide Field Fundus Camera | Beiao (SYSEYE)
Product Description
The RetiCam 3100 Plus Wide Field Fundus Camera by Beiao (SYSEYE) is an advanced non-mydriatic retinal imaging system designed for high-definition, true-color fundus photography. With a 176° ultra-wide field of view and 8 μm optical resolution, it captures clear, detailed retinal images in a single shot, enabling early detection of diabetic retinopathy, glaucoma, AMD, and other ocular diseases.
This intelligent fundus camera integrates AI-assisted automatic focus, alignment, and capture functions, ensuring precise, fast, and consistent imaging. Featuring LED true-color illumination and a 27-inch HD color display (2560*1440P), the RetiCam 3100 Plus provides a crystal-clear view for clinicians and technicians alike.
Built to international medical standards (CE, ISO 15004-2:2007, IEC 60601-1), the RetiCam 3100 Plus delivers stability, accuracy, and ease of operation — making it an ideal choice for hospitals, eye clinics, and research institutions seeking high-end retinal imaging solutions.
Features
- Product Name: RetiCam 3100 Plus Wide Field Fundus Camera
- Brand: Beiao (SYSEYE)
- Field of View: 176° ultra-wide (tolerance ±5%)
- Optical Resolution: 8 μm (tolerance ±7%)
- Pixel Resolution: 4096*3072
- Non-mydriatic true-color imaging (no dilation required)
- AI-assisted: Automatic Focus / Automatic Alignment / Automatic Capture
- LED True Color Illumination, max brightness <130,000 lx
- High-definition 27-inch color monitor (2560*1440P)
- DICOM and USB export supported
- CE, ISO, IEC certified for medical use
Technical Parameters
| Parameter |
Specification |
| Field of View |
176° (tolerance ±5%) |
| Optical Resolution |
8μm (tolerance ±7%) |
| Pixel Resolution |
4096*3072 |
| Display |
27-inch HD Color Monitor (2560*1440P) |
| Imaging Technology |
LED True Color |
| Working Distance |
10mm ±2mm |
| Automatic Operation |
Focus / Alignment / Capture / Gain |
| Flash Illumination |
<130,000 lx |
| Power Supply |
100-240V AC, 50/60Hz, 200VA |
| Certifications |
CE, ISO 15004-2:2007, IEC 60601-1 |
Applications
The Beiao (SYSEYE) RetiCam 3100 Plus is a state-of-the-art diagnostic imaging system suitable for diverse ophthalmic applications.
- Ophthalmology Clinics: Ideal for retinal examinations, disease diagnosis, and long-term monitoring.
- Optometry Practices: Perfect for routine eye check-ups and preventive health imaging.
- Hospitals and Medical Centers: Reliable for detailed retinal imaging and advanced clinical diagnostics.
- Research Institutions: Suitable for AI-assisted retinal research, imaging studies, and clinical trials.
With a price range of $40,000-$50,000 and a minimum order quantity of 1, the RetiCam 3100 Plus provides a premium yet efficient solution for professional eye care facilities worldwide.
Support and Services
Beiao (SYSEYE) offers comprehensive technical support and service for the RetiCam 3100 Plus. Our expert team provides installation guidance, remote troubleshooting, software updates, and lifetime maintenance. Training materials and user manuals are included to ensure users achieve accurate and consistent results in clinical operation.
Packing and Shipping
Product Packaging: Each RetiCam 3100 Plus is securely packed in a reinforced foam-protected wooden case to prevent vibration or impact during transportation.
Packaging dimensions: 412mm * 497mm * 513mm
Includes: Main unit, power cable, user manual, keyboard, and mouse.
Shipping: Orders are processed within 5-7 business days. Supply ability: 100 units/month. Worldwide shipping available with tracking details provided.
FAQ
Q1: What is the brand name of this fundus camera?
A1: The brand name is Beiao (SYSEYE).
Q2: What is the model number?
A2: The model number is RetiCam 3100 Plus.
Q3: Where is the product manufactured?
A3: It is manufactured in Chongqing, China.
Q4: What is the minimum order quantity?
A4: The minimum order quantity is 1 unit.
Q5: What is the price range?
A5: The price range is $40,000-$50,000 per unit.
Q6: What are the payment terms?
A6: Payment terms are T/T (Telegraphic Transfer).
Q7: Is it CE certified?
A7: Yes, it is CE, ISO, and IEC certified for medical use.
