Place of Origin:
China
Brand Name:
SYSEYE
Certification:
CE
Model Number:
BIO-1000
Contact Us

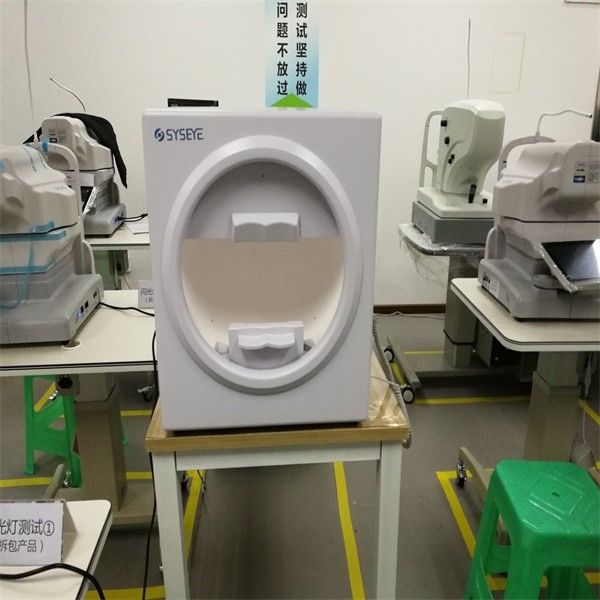

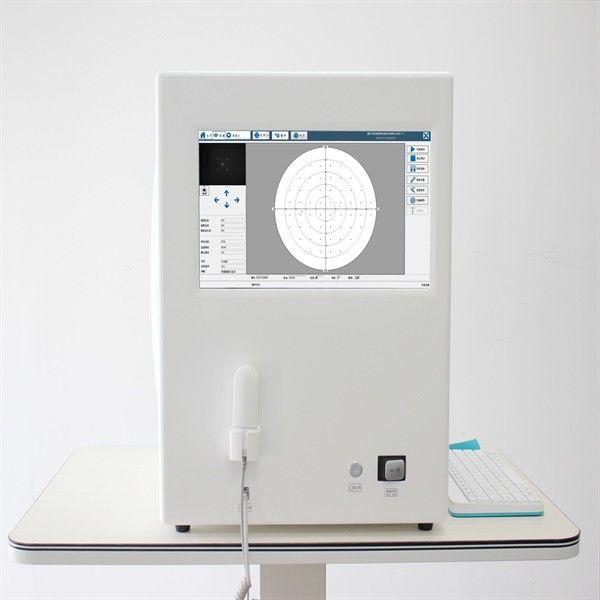

Higher stability and reliability Automated Perimetry Machine
System configuration of Automated Perimetry Machine
1. visual field instrument hardware consists of computer automatic visual field instrument host, wireless keyboard and wireless mouse.
2. the software of visual field instrument (system) consists of the following modules:
Patient information input module;
Data analysis and processing software module;
File management module;
Output print module.
3. computer and operating system configuration requirements
CPU: Intel 1620 or above;
Memory: 512m or more;
Hard disk: more than 300 gigabytes;
Monitor: above 15 ";
Graphics card: integrated graphics card;
Operating system: Windows 7 and above.
Specifications:
Basic specification |
small size Automated Perimetry Machine |
Inspection range |
90° |
Inspection distance |
30cm |
Background light brightness |
White 31.5asb |
Visual target brightness |
1asb--- -10000asb |
Visual target size |
GoldmannIII |
Visual target interval time |
200ms |
Visual target interval time |
Standard or adjustment according to patient reflection |
Threshold test model |
Center5-°16, center10° -68, 24 -2, 30-2, 30° -60° nasal step |
Upper Threshold test model |
30°- 40, 30°-76, P-60, 60°-81, 60°-120,190°-135 nasal side |
Special detection strategy |
Esterman monocular, Esterman binocular . user- customized test, 150P driver monocular fast detection, 150P driver monocular standard detection , upper 36 detection, blind spot detection,150horizontal straightness detection |
Pupil size test |
Automatic |
Fixation monitoring |
Blind spot monitoring , eye position eye position deviation alarm, eye deviation curve |
Environment light detection |
Automatic |
Analysis software |
Reliability analysis , single vision report, triple vision report, GPA half vision analysis, GPA glaucoma developing analysis , VFI vision index analysis |
Operation system |
Win7 above
|
Feature |
Automated Perimetry Machine 1. Comprehensive real-time monitoring, heiji-krakau physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection. 2. Personalized design, accurate clinical analysis, accurate and rapid examination strategy. 3. Under international Goldman standard, providing a variety of calssic test procedures and report analysis.
|
BIO-1000 fully automatic computer visual instrument absorbs the advantages of international advanced models, integrated acoustic, optical, mechanical and electrical technology, using large-scale integrated circuit design, using projection mode, using the international general random detection mode for visual marking, inspection range is wide (0-90°).Automatic vision machine adopts high-end computer configuration, compared with the domestic similar products, stability, reliability is higher.Support WindowsXP, Win7 platform, beautiful software interface, simple operation, easy to learn and use.Comprehensive software examination procedures and multi-report analysis according to international standards provide auxiliary diagnosis for diseases associated with visual impairment.
Features of Automated Perimetry Machine
1. Comprehensive real-time monitoring, black market Krakau physiological blind spot monitoring.Eye tracking/head tracking, automatic measurement of pupil diameter, reduce the influence of pupil effect on visual field detection.
2. Personalized design, accurate clinical analysis, accurate and rapid examination strategy.
3. Provide various calcium testing procedures and report analysis according to international Goldman Sachs standards.
