Place of Origin:
China
Brand Name:
SYSEYE
Certification:
FDA
Model Number:
RetiCam 3100
Contact Us
No Need To Dilate The Pupil To Avoid Inducing Glaucoma Attack Digital Fundus Camera
In response to the real demand, the Digital Fundus Camera has a positive significance for medical institutions, doctors and patients. At present, non-dilated fundus camera can not only help patients to complete binocular examination quickly, but also avoid the pain and inconvenience caused by drug application of pupil, which has become the first choice for retinopathy screening.
Fundus camera makes use of the principle of dark light of human eyes to obtain images of fundus microcirculation in a short period of time without the need for pupil dilation, and the images are clear and more details can be seen, greatly shortening the diagnostic cycle and alleviating the pain caused by pupil dilation.

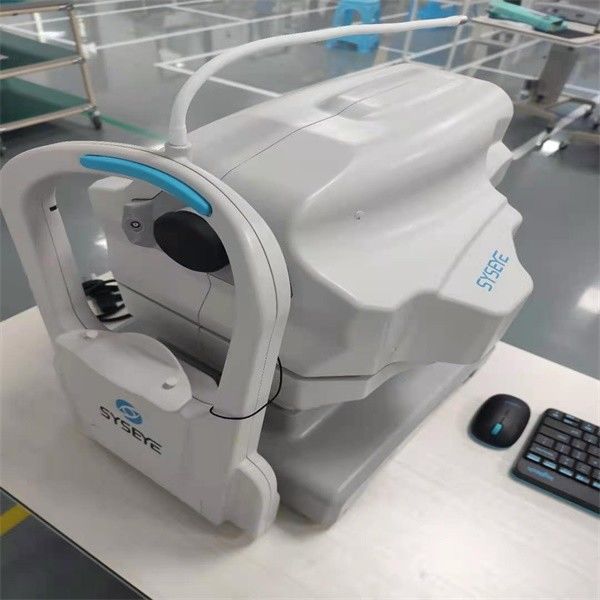

Digital Fundus Camera RetiCam 3100 can be used to capture the anterior and posterior eye images. It has a field of view of 50 degrees for fundus imaging.
Digital Fundus Camera Reticam 3100 is a highly recognized and popular automatic fundus imaging system around the world. Through dual camera imaging, image control and feature recognition, eye XYZ 3D automatic positioning is realized. Through CCD imaging feedback, the exposure is measured, and the exposure intensity is automatically and accurately determined, without the need for a doctor's complex operation. By controlling the focusing step length according to the image resolution, the image definition can be automatically adjusted to obtain a clear and accurate fundus image and help doctors make accurate judgments for patients.
| Acquisition Modes | Digital Fundus Camera/mydriatic Anterior photography /Red-free(optional)(FFA)/(FAF) |
| Field View | 50° |
| Working Distance | 35mm |
| Minimum Pupil | ≥3.3mm |
| Focus Modes | Manual/Auto |
| Alignment Modes | Double dots auxiliary |
| Exposure | Manual /Auto |
| Photography | SLR Camera |
| Image definition | 24 Megapixel |
| Compensation | ±25D |
| Fixation | External /Internal (any position available) |
| DICOM 3.0 | Support |
| Digital Fundus Camera in the world | |||
| Brand | TOPCON(NW-400) | DRS | NEWVISON(RETICAM3100) |
| operation | automatic(one key taking picutre)/manual | automatic(one key taking picutre)/manual | automatic(one key taking picutre)/manual |
| Acquisition modes | fundus/anterior/? | fundus/anterior/red-free filter | fundus/anterior/red-free filter/FFA(optional)/FAF(optional) |
| Filed of view | 45 degree | 40-45degree | 45-50degee |
| Mosic degee | 80 degree | 135degree | |
| Minimum pipil size | 3.3mm | 3.5mm | 3.3mm |
| Resolution | above 18megapiexl | sensor size:5 megapixel sensor resoultion: 48 pixel/degree | above18 megapixel (24 megapixel optional ) |
| Fixation | 9 internal + 1 outside fixaiton | 7 internal fixation | countless fixaiton, any position is available during range + 1 outside fixation |
| Technology of focus | Dual camrea technology | ||
| exposure ligh | standard | standard | new technology, more soft, one patient same eye can take picuture consecutive with almost same performace |
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
