Place of Origin:
China
Brand Name:
SYSEYE
Certification:
FDA
Model Number:
RetiCam 3100
Contact Us
A Routine Examination Instrument For Ophthalmology Digital Fundus Camera
Digital Fundus Camera RetiCam 3100 has the ability of high-resolution color image processing, and can take high-quality fundus photos under low flash intensity, which is convenient and accurate for diagnosis, and the imaging is fast, greatly improving the working efficiency of doctors. Its operation is more intuitive, multi-functional joystick can achieve reliable user control, easy to use control mode between focus and shooting mode easily switch. It is worth mentioning that Digital Fundus Camera RetiCam 3100 applies non-dilatation technology, which can take clear fundus photos without dilatation, providing patients with a painless, non-invasive and more comfortable medical experience.
Digital Fundus Camera RetiCam 3100 can be used to capture the anterior and posterior eye images. It has a field of view of 50 degrees for fundus imaging.

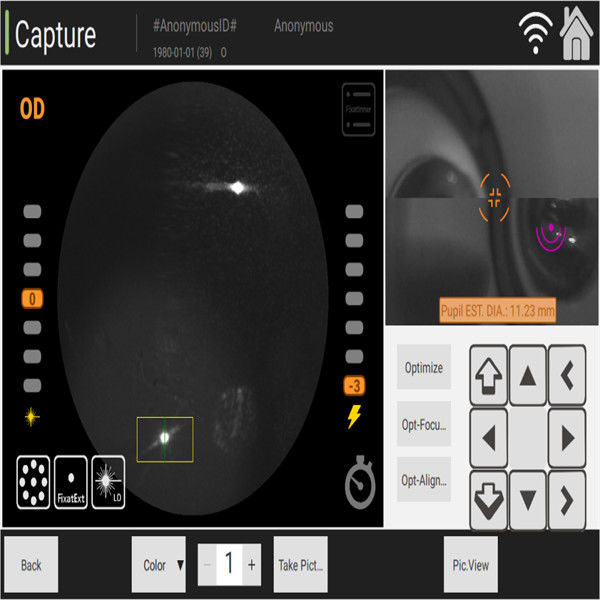

Digital Fundus Camera Reticam 3100 is a highly recognized and popular automatic fundus imaging system around the world. Through dual camera imaging, image control and feature recognition, eye XYZ 3D automatic positioning is realized. Through CCD imaging feedback, the exposure is measured, and the exposure intensity is automatically and accurately determined, without the need for a doctor's complex operation. By controlling the focusing step length according to the image resolution, the image definition can be automatically adjusted to obtain a clear and accurate fundus image and help doctors make accurate judgments for patients.
| Acquisition Modes | Digital Fundus Camera/mydriatic Anterior photography /Red-free(optional)(FFA)/(FAF) |
| Field View | 50° |
| Working Distance | 35mm |
| Minimum Pupil | ≥3.3mm |
| Focus Modes | Manual/Auto |
| Alignment Modes | Double dots auxiliary |
| Exposure | Manual /Auto |
| Photography | SLR Camera |
| Image definition | 24 Megapixel |
| Compensation | ±25D |
| Fixation | External /Internal (any position available) |
| DICOM 3.0 | Support |
| Digital Fundus Camera in the world | |||
| Brand | TOPCON(NW-400) | DRS | NEWVISON(RETICAM3100) |
| operation | automatic(one key taking picutre)/manual | automatic(one key taking picutre)/manual | automatic(one key taking picutre)/manual |
| Acquisition modes | fundus/anterior/? | fundus/anterior/red-free filter | fundus/anterior/red-free filter/FFA(optional)/FAF(optional) |
| Filed of view | 45 degree | 40-45degree | 45-50degee |
| Mosic degee | 80 degree | 135degree | |
| Minimum pipil size | 3.3mm | 3.5mm | 3.3mm |
| Resolution | above 18megapiexl | sensor size:5 megapixel sensor resoultion: 48 pixel/degree | above18 megapixel (24 megapixel optional ) |
| Fixation | 9 internal + 1 outside fixaiton | 7 internal fixation | countless fixaiton, any position is available during range + 1 outside fixation |
| Technology of focus | Dual camrea technology | ||
| exposure ligh | standard | standard | new technology, more soft, one patient same eye can take picuture consecutive with almost same performace |
