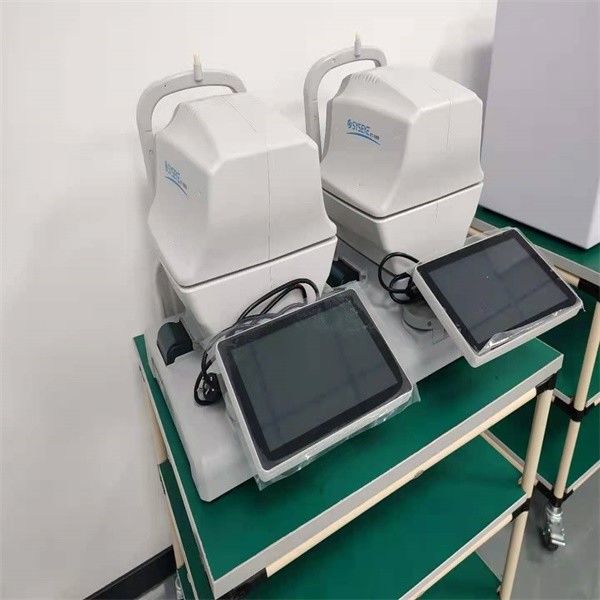

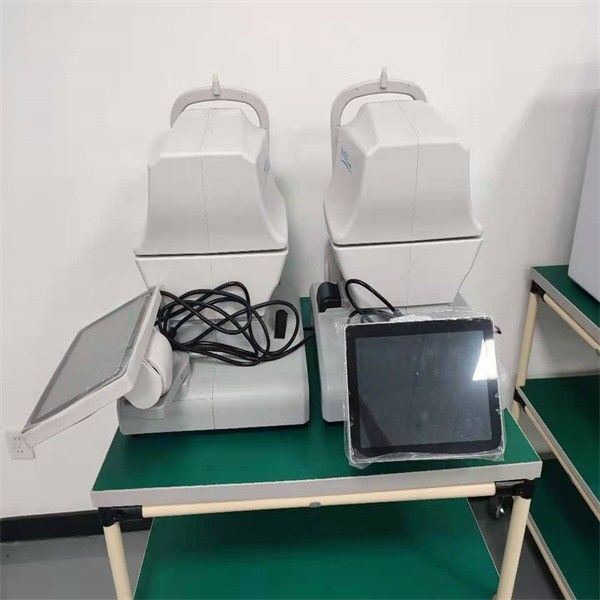

Adults NCT Non Contact Tonometer 30mmHg Intraocular Pressure Instrument

One Automatic Measurement Suitable For Adults And Children Automatic Tonometer

Intraocular pressure is the pressure inside the eyeball, called intraocular pressure for short. It is the equalizing pressure exerted by the contents of the eye on the wall of the eye. In order to maintain the normal shape of the eyeball and maximize the optical properties of the refractive stroma, the normal intraocular pressure of normal people is kept within a certain range. Normal intraocular pressure ranges from 10 to 21mmHg (1.47 to 2.79 kPa). , measurement of intraocular pressure can understand the pressure inside the eyeball, because the pressure is too high will lead to compression of the optic nerve, optic nerve atrophy, and even blindness; Pressure is too low, can cause retinal choroid oedema, detachment, final possible eyeball atrophy. Many diseases can be related to intraocular pressure, such as glaucoma, uveitis, ocular trauma, etc. Therefore, the measurement of intraocular pressure is a routine examination of ophthalmology.

Product Description Of  Automatic Tonometer

Screen color and touch,

Rotating screen like Topcon.

Motorized chinrest

Auto tracking eye , you can select auto or manual .

if select auto , will automatic adjust the chinrest distance , height, and shoot air to measure . two second finish .

Intraocular pressure (IOP) measuring range: 1mmHg~ 30mmHg /1mmHg ~60mmHg ( precision of 1mmHg)
Measuring system: dual sensor system of light and pressure
Working distance:≥11mm
R/L: automatic detection and display
Measuring result: 10 times per eye; 3 times result printing per eye
Recording: build-in printer
Measuring mode: auto/manual
Focus: when luminous spot is in the focus frame, 2 modes can be chosen.
Auto mode: auto intraocular pressure measurement
Manual mode: when it's good focus, the frame will turn yellow into green, and click to start the measurement
Error indication: if the measurement signal is weak, the IOP will be enclosed by ( ), or display “ERR ”
Safety limit button: install measurement for minimum distance between head and patient
Safety functions: the distance between air nozzle and cornea is controlled in preset range(such as 11mm); it will stop going forward when the cornea is too closed to air head.
Movement range:≥30mm(front to back)/ 90mm(left to right)/ 30mm(vertical)
Jaw layer vertical movement: 0~65mm with under jaw layer
Display mode: 10.1-inch HDMI color LED touch monitor
Output port: USB2.0
Working platform: electric elevating platform


Automatic Tonometer specification
