Digital 60 Hz Ultrasonic Scanner Accurate Detection For Ophthalmology

Digital 60 Hz Ultrasonic Scanner Accurate Detection For Ophthalmology

Digital Ultrasonic Scanner

60 Hz Ultrasonic Scanner

accurate detection Ultrasonic Scanner

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Accurate Detection Ophthalmic Ultrasonic Scanner
Anti-shock Type:
Class II Equipment
50/60 Hz
Power Supply:
100~240V 50/60V
Probe Frequency:
Measuring Mode:
Measuring Range:
Over 5mm-40mm
Relative Humidity:
80 + / -3%
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
340mm(L) x 320mm(W) x 115mm(H)
Delivery Time
5 working days
Payment Terms
Supply Ability
Product Description

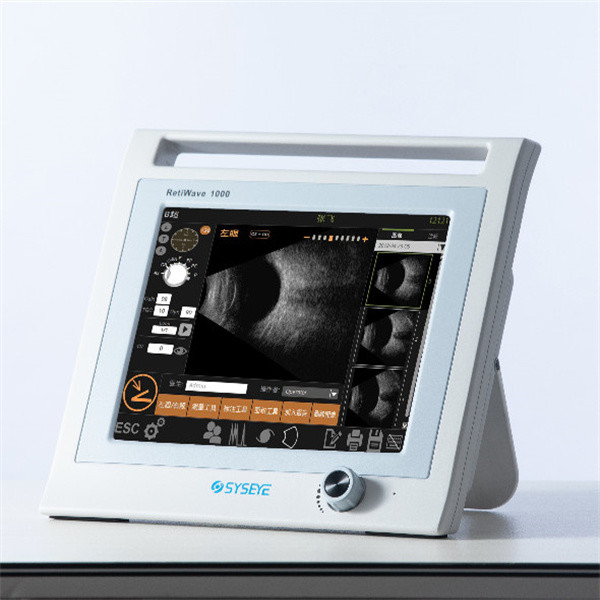

Digital ultrasonic A/B scanner Retiwave 1000 for ophthalmology


Digital ultrasonic A/B scanner  is based on the echo interface of the tissue, and therefore has good soft tissue resolution. By displaying the pathological changes of echo intensity, echo, echo boundaries, deep penetrating and compressibility of qualitative diagnosis of diseases, such as color doppler image is through the pathological changes of the supply of blood vessels and blood essels color doppler spectrum diagram, to understand the distribution of blood vessels, blood flow and blood flow velocity, etc., for the differential diagnosis of orbital tumors have a bigger value.

A/B ultrasound mainly consists of the main part and the imaging system.

The host system is the control center of the whole system. It is composed of A/B super host, external power module and probe bracket.

The imaging system is composed of scanner subsystem and scanning converter subsystem. In the scanner subsystem dispenser unit and the front-end processor unit, the corresponding probe can be selected according to the need to send excitation voltage to the probe and receive corresponding echo signal. It consists of A/B ultrasonic probe, foot switch, mouse and keyboard.




1). 12.1" color and touch screen .

2).  Ultrasonic Scanner With the same software as Quantel , top one in China

With advanced intelligent digital software and parameters of freezed and Stored images could be adjusted voluntarily.

3). Can have different results on the report according to different constants A

Scan A measures data for every part of the eyeball as anterior chamber depth, lens thickness axial length and so on which are needed in ophthalmic surgeries , and calculates IOL by axial length.

4). B scanner use electromagnetic ,better save B probe life .

Scan B displays profile images of the eyeball clearly and directly. Scanning anatomical forms and nidi inside the eyeball, doctors can diagnose accurately for examination of cataract , vitreous body disease, ocular trauma,detachment of retina or choroid , macula disease , and intraocular tumor, etc

5).  B scanner ,video playbackof 100 images.

6).  A scanner , one group with 10 data to get average ,At the same time the accuracy is 0.05mm


Technical Data


A Scan biometry
Probe frequency 10MHz
Measuring mode contact
Measuring range Over 5mm-40mm
Measuring error ≤±0.05mm
Measuring type Length of optic axis , automatic calculation , result analysis auto ,
Image freezing auto+preservable, manual
Intraocular lens implantation (IOL)formula SRK-T, SRX II, HOLLADAY, BINKHORST-II, HOFFER-Q,HAIGIS
Gain 20-110dB
Time gain adjustment 0-30dB
B Scan patterns
Probe frequency 10MHz
Probing depth ≥50mm
Axial Resolution ≤0.2mm
Lateral resolution ≤0.3mm
Gain adjustment 20-110dB
Time gain adjustment 0-30dB
Operation mode Eyecup, gel, aqueous capsule
Post-processing measuring tools Area, length, mark and annotation
Review 100 images available
Size 340mm*320mm*115mm
weight 10kg
Power supply 100-240V 50/60Hz

Digital 60 Hz Ultrasonic Scanner Accurate Detection For Ophthalmology 0

SOFTWARE OF Ultrasonic Scanner

AB-1000 Quantel same software ophthalmic ultrasound ab Scan





AB-1000 Quantel same software ophthalmic ultrasound ab Scan


Company Introduction

Digital 60 Hz Ultrasonic Scanner Accurate Detection For Ophthalmology 3

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.

Digital 60 Hz Ultrasonic Scanner Accurate Detection For Ophthalmology 4
