Place of Origin:
China
Brand Name:
SYSEYE
Certification:
CE
Model Number:
BIO-1000
Contact Us

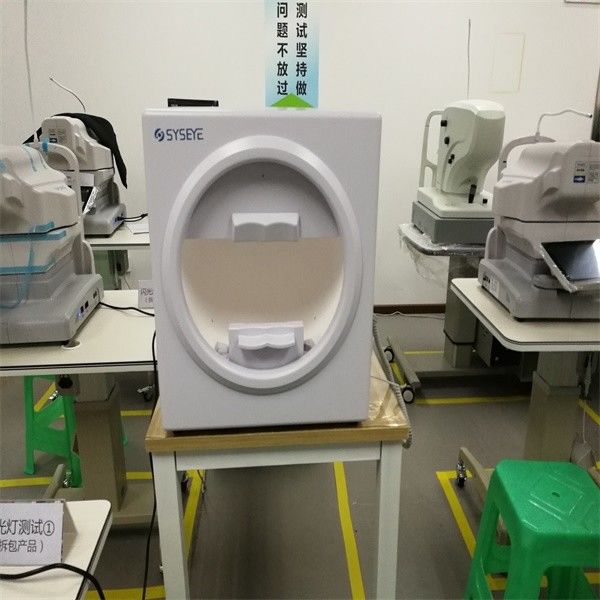

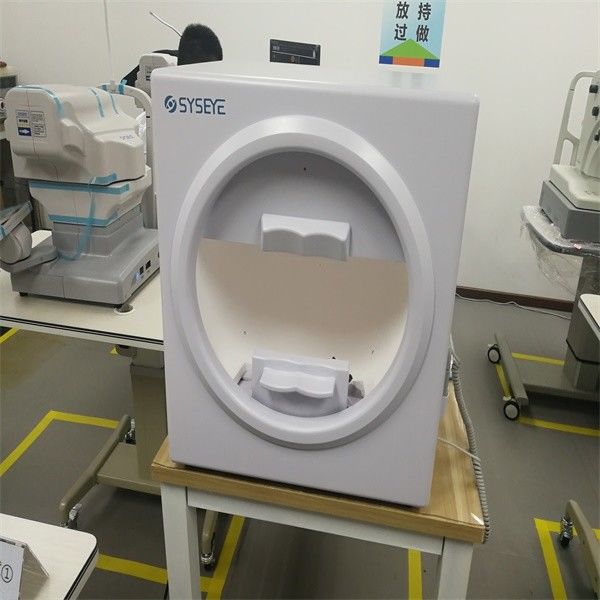

perimeter ophthalmic instrument international Goldman standard
fully automatic computer vision instrument absorbs the advantages of international advanced models, integrates sound, light, machine and electrical technologies, adopts large-scale integrated circuit design, adopts projective working mode, adopts international general random detection mode for visual marking, and has a wide range of inspection (0-90°). The use of high-end computer configuration, compared with domestic similar products stability, reliability higher. Support Windows XP, WIN7 platform, beautiful software interface, easy to operate, easy to learn and use. Comprehensive software inspection program and multiple report analysis according to international standards to provide auxiliary diagnosis for diseases related to visual impairment.
Specifications:
Basic specification | small size Automated Perimetry Machine |
Inspection range | 90° |
Inspection distance | 30cm |
Background light brightness | White 31.5asb |
Visual target brightness | 1asb--- -10000asb |
Visual target size | GoldmannIII |
Visual target interval time | 200ms |
Visual target interval time | Standard or adjustment according to patient reflection |
Threshold test model | Center5-°16, center10° -68, 24 -2, 30-2, 30° -60° nasal step |
Upper Threshold test model | 30°- 40, 30°-76, P-60, 60°-81, 60°-120,190°-135 nasal side |
Special detection strategy | Esterman monocular, Esterman binocular . user- customized test, 150P driver monocular fast detection, 150P driver monocular standard detection , upper 36 detection, blind spot detection,150horizontal straightness detection |
Pupil size test | Automatic |
Fixation monitoring | Blind spot monitoring , eye position eye position deviation alarm, eye deviation curve |
Environment light detection | Automatic |
Analysis software | Reliability analysis , single vision report, triple vision report, GPA half vision analysis, GPA glaucoma developing analysis , VFI vision index analysis |
Operation system | Win7 above |
Feature | Automated Perimetry Machine |
Features of Automated Perimetry Machine
1. Comprehensive real-time monitoring, black market Krakau physiological blind spot monitoring.Eye tracking/head tracking, automatic measurement of pupil diameter, reduce the influence of pupil effect on visual field detection.
2. Personalized design, accurate clinical analysis, accurate and rapid examination strategy.
3. Provide various calcium testing procedures and report analysis according to international Goldman Sachs standards.
