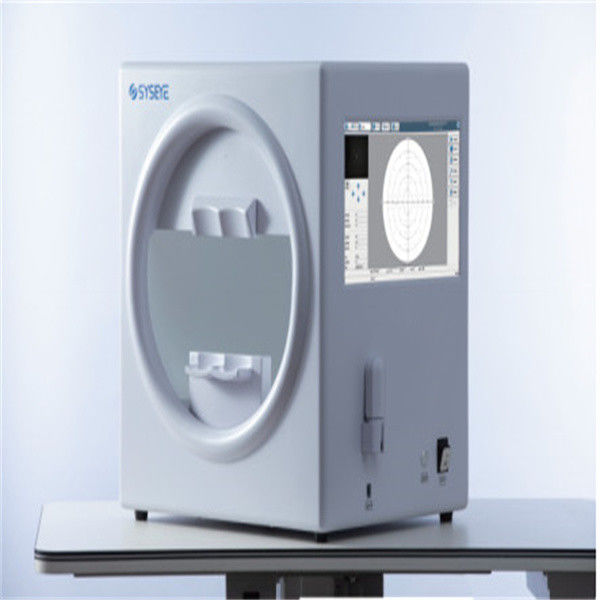

peripheral vision test equipment fully automatic computer vision instrument Support Windows XP, WIN7
peripheral vision test equipment absorbs the advantages of international advanced models, set acoustic, optical, mechanical, electrical technology in one, using large-scale integrated circuit design, using projection mode, visual marking using international general random detection mode, and has a wide inspection range (0-90°).The automatic vision instrument adopts high-end computer configuration, which is more stable and reliable than similar domestic products. peripheral vision test equipment has been recognized by many eye hospitals in China and widely used. It supports Windows XP and Win7 platforms, with beautiful software interface, simple operation and easy to learn and use by ophthalmologists.According to international standards, comprehensive software testing procedures and multiple report analysis are provided to assist in the diagnosis of diseases related to visual impairment.
Features of Automated Perimetry Machine
1. Comprehensive real-time monitoring, heiji-krakau physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection.
2. Personalized design, accurate clinical analysis, accurate and rapid examination strategy.
3. Under international Goldman standard, providing a variety of calssic test procedures and report analysis.
Specifications:
|
Basic specification |
High-end computer configuration Automated Perimetry MachineAutomated Perimetry Machine |
|
Inspection range |
90° |
|
Inspection distance |
30cm |
|
Background light brightness |
White 31.5asb |
|
Visual target brightness |
1asb--- -10000asb |
|
Visual target size |
Goldmann III |
|
Visual target interval time |
200ms |
|
Visual target interval time |
Standard or adjustment according to patient reflection |
|
Threshold test model |
Center5-°16, center10° -68, 24 -2, 30-2, 30° -60° nasal step |
|
Upper Threshold test model |
30°- 40, 30°-76, P-60, 60°-81, 60°-120,190°-135 nasal side |
|
Special detection strategy |
Esterman monocular, Esterman binocular . user- customized test, 150P driver monocular fast detection, 150P driver monocular standard detection , upper 36 detection, blind spot detection,150horizontal straightness detection |
|
Pupil size test |
Automatic |
|
Fixation monitoring |
Blind spot monitoring , eye position eye position deviation alarm, eye deviation curve |
|
Environment light detection |
Automatic |
|
Analysis software |
Reliability analysis , single vision report, triple vision report, GPA half vision analysis, GPA glaucoma developing analysis , VFI vision index analysis |
|
Operation system |
Win7 above
|
| Feature |
Automated Perimetry Machine 1. Comprehensive real-time monitoring, heiji-krakau physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection. 2. Personalized design, accurate clinical analysis, accurate and rapid examination strategy. 3. Under international Goldman standard, providing a variety of calssic test procedures and report analysis.
|
Transportation and storage
6.1visual field instruments with complete packaging can be transported by conventional means of transportation or as stipulated in the contract. During the transportation, precautions should be taken against moisture, sun protection, inversion and violent vibration and collision.
6.2 after packaging, the visual field instrument should be stored in the environment temperature range of 0 ℃ ~ 55 ℃, relative humidity ≤ 85%, atmospheric pressure range: 760 hPa ~ 1060 hPa, non-corrosive gas and clean room with good ventilation.
6.3 if the installed instruments need to be carried or moved over a short distance, the connecting wires between the instruments must be removed and carried separately. If the instrument needs to be transported for a long distance, it should be repacked into the original package for handling.
