Place of Origin:
China
Brand Name:
SYSEYE
Certification:
TUV
Model Number:
RetiView 500
Contact Us
Video
Video
Video

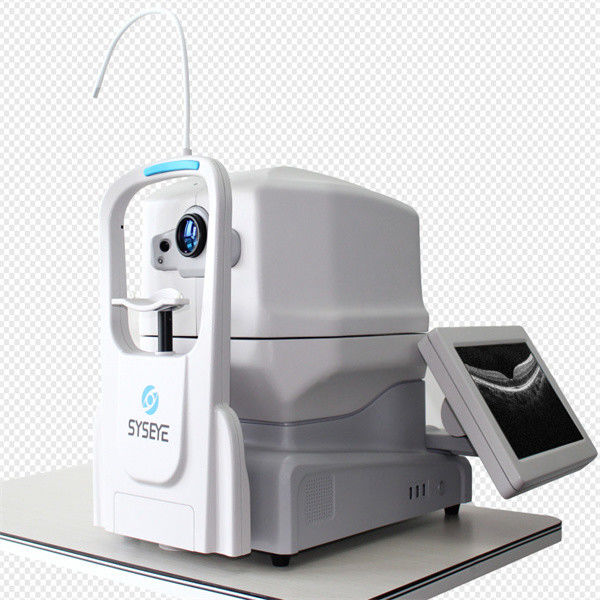

optical coherence tomography machine all-in-one design simple operation
Compact Design
Features:
1. Compact Design: Everything is inside this compact body. No external computer is needed.
Plug in the power cable, then you are ready to go.
2. PC Inside: Data acquisition and processing are accomplished by the internal computer.
The data can be transported via ethernet or external harddrive. Peripheral devices, such
as keyboard or printer, can be connected to the computer ports.
3. Easy Installation:No complex connection or setup. Compact body can fit in even small space.
Specifications of SD OCT Machine
| Methodology | Spectral domain OCT |
| Axial resolution | ≤6 µm (in tissue) |
| Transverse resolution | ≤20 µm (in tissue) |
| Scan depth | ≥2.5 mm (in air) |
| Scan range | ≥6 mm |
| Scan speed | ≥24,000 A-scans/sec, up to 36,000 A-scans/sec |
| Scan modes | 3D, Raster, Circle |
| Fundus image | OCT en face |
| Focus adjustment | -15D to +15D |
| Pupil diameter | ≥3 mm |
| OCT light source | 840 nm SLD |
| Optical power | 750 µW (at cornea) |
| Operation | 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz |
| Power supply | 497 mm × 395 mm × 490 mm (L × W × H) |
| Dimensions Weight | 34 kg (75 lbs) |
Component Descriptions:
