Computer Controlled Optical Coherence Tomography Machine Ophthalmic Imaging System

Computer Controlled Optical Coherence Tomography Machine Ophthalmic Imaging System

Computer Controlled Optical Coherence Tomography Machine

Optic Nerve SD OCT Machine

Ophthalmic Imaging System OCT Machine

Place of Origin:

China

Brand Name:

SYSEYE

Certification:

TUV

Model Number:

RetiView 500

Contact Us

Request A Quote
Product Details
Product Name:
Optic Nerve SD OCT Machine
CPU:
CPU Main Frequency Larger Than 2.0 GHz.
RAM:
4GB
Transverse Resolution:
≤20 µm (in Tissue)
Scan Depth:
≥2.5 Mm (in Air)
Focus Adjustment:
-15D To +15D
Pupil Diameter:
≥3 Mm
Hard Disk:
>500 G
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$18,500.00-$21,900.00
Packaging Details
497 mm × 395 mm × 490 mm (L × W × H) 34 kg (75 lbs)
Delivery Time
5 working days
Payment Terms
T/T
Supply Ability
100
Product Description

optical coherence tomography scanne affordable quality computer controlled ophthalmic imaging system​



The Retiview 500 is an Optical Coherence Tomography (OCT) system intended for
use as a non-invasive imaging device for viewing and measuring ocular tissue
structures with micrometer range resolution. The Retiview 500 is a computer
controlled ophthalmic imaging system. The device scans the patient’s eye using a
low coherence interferometer to measure the reflectivity of retinal tissue.





Specifications of  SD OCT Machine



Methodology Spectral domain OCT
Axial resolution ≤6 µm (in tissue)
Transverse resolution ≤20 µm (in tissue)
Scan depth ≥2.5 mm (in air)
Scan range ≥6 mm
Scan speed ≥24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes 3D, Raster, Circle
Fundus image OCT en face
Focus adjustment -15D to +15D
Pupil diameter ≥3 mm
OCT light source 840 nm SLD
Optical power 750 µW (at cornea)
Operation 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz
Power supply 497 mm × 395 mm × 490 mm (L × W × H)
Dimensions Weight 34 kg (75 lbs)

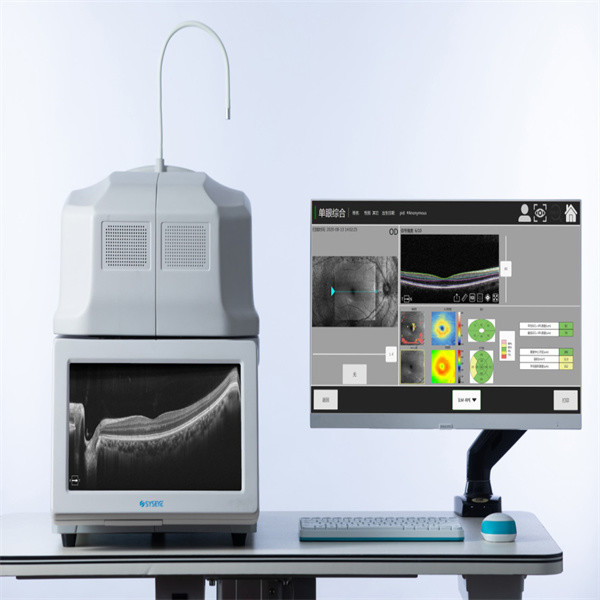

Computer Controlled Optical Coherence Tomography Machine Ophthalmic Imaging System 0

Computer Controlled Optical Coherence Tomography Machine Ophthalmic Imaging System 1

Computer Controlled Optical Coherence Tomography Machine Ophthalmic Imaging System 2



Computer Controlled Optical Coherence Tomography Machine Ophthalmic Imaging System 3
