Place of Origin:
China
Brand Name:
SYSEYE
Certification:
CE
Model Number:
BIO-1000
Contact Us
Video
Video
Video
Video
visual field analyzers comprehensive software inspection categories international Goldman standard

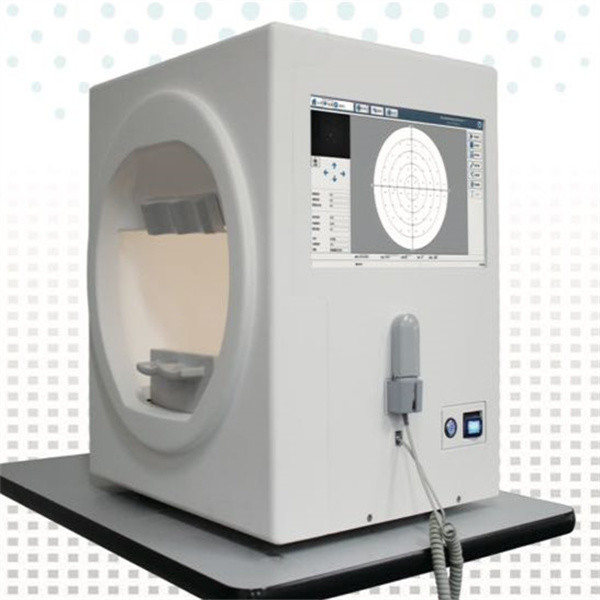

The Bio-1000 plus automated computer perimeter absorbs the advantage of international advanced perimetry device. It comprises the highly integrated computer, optics, machinery and electronics systems. Incorporated with the advantage configuration, comprehensive software inspection categories, it provide international and strictly in accordance with international Goldman standard, it provide scientific means for glaucoma,fundus disease, visual pathway injury and neurological disease.
Features of Visual Field Analyzer
1. Comprehensive real-time monitoring, heiji-krakau physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection.
2. Personalized design, accurate clinical analysis, accurate and rapid examination strategy.
3. Under international Goldman standard, providing a variety of calssic test procedures and report analysis.
4. Provide a comprehensive software testing program.
Specifications:
Basic specification | small size Visual Field Analyzer |
Inspection range | 90° |
Inspection distance | 30cm |
Background light brightness | White 31.5asb |
Visual target brightness | 1asb--- -10000asb |
Visual target size | GoldmannIII |
Visual target interval time | 200ms |
Visual target interval time | Standard or adjustment according to patient reflection |
Threshold test model | Center5-°16, center10° -68, 24 -2, 30-2, 30° -60° nasal step |
Upper Threshold test model | 30°- 40, 30°-76, P-60, 60°-81, 60°-120,190°-135 nasal side |
Special detection strategy | Esterman monocular, Esterman binocular . user- customized test, 150P driver monocular fast detection, 150P driver monocular standard detection , upper 36 detection, blind spot detection,150horizontal straightness detection |
Pupil size test | Automatic |
Fixation monitoring | Blind spot monitoring , eye position eye position deviation alarm, eye deviation curve |
Environment light detection | Automatic |
Analysis software | Reliability analysis , single vision report, triple vision report, GPA half vision analysis, GPA glaucoma developing analysis , VFI vision index analysis |
Operation system | Win7 above |
| Feature | Visual Field Analyzer |
Company Introduction
The predecessor of Shenzhen Xinyu Vision Technology Co., Ltd. was established in 2011, with "technology empowerment, innovative vision" as the enterprise development concept, focusing on the continuous innovation and expansion of ophthalmic medical devices. The company consists of Chongqing Bio New Vision Medical Equipment Co., Ltd., which integrates R&D, manufacturing, sales and service. Obtained the national high-tech enterprise, "specialized and special new enterprise", "intellectual property advantage enterprise". Passed the CE13485 system certification, with more than 80 patents and software copyrights
