Air Puff Automatic Tonometer Non Contact Simple Operation And Easy Acceptance

air puff tonometer automatic tonometer non-contact simple operation and easy acceptance

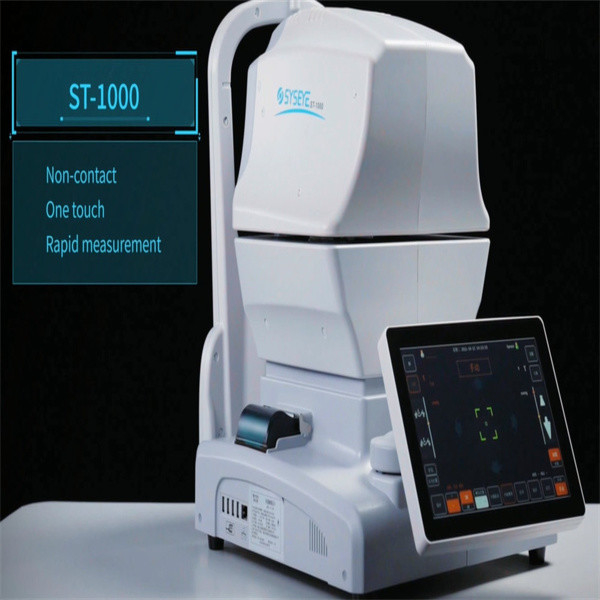

air puff tonometer St-1000 is a non-contact tonometer with automatic alignment. The test of intraocular pressure is an important index for clinical diagnosis of ophthalmology. Our st-1000p non-contact tonometer adopts non-contact measurement with no risk of infection, simple operation and easy acceptance by patients.

air puff tonometer St-1000 adopts Imber-Fick principle and USES controllable air pulse with linear increasing characteristics to squeeze the central position of the cornea and deform the cornea to form a circular plane with a diameter of about 3.6mm2. It is considered that the air pressure at this time is equal to the pressure inside the eyeball, and the measured air pressure at this time is the value of the intraocular pressure directly.

Automatic Tonometer specification

Product Description Of Automatic Tonometer

Intraocular pressure (IOP) measuring range: 1mmHg~ 30mmHg /1mmHg ~60mmHg ( precision of 1mmHg)
Measuring system: dual sensor system of light and pressure
Working distance:≥11mm
R/L: automatic detection and display
Measuring result: 10 times per eye; 3 times result printing per eye
Recording: build-in printer
Measuring mode: auto/manual
Focus: when luminous spot is in the focus frame, 2 modes can be chosen.
Auto mode: auto intraocular pressure measurement
Manual mode: when it's good focus, the frame will turn yellow into green, and click to start the measurement
Error indication: if the measurement signal is weak, the IOP will be enclosed by ( ), or display “ERR ”
Safety limit button: install measurement for minimum distance between head and patient
Safety functions: the distance between air nozzle and cornea is controlled in preset range(such as 11mm); it will stop going forward when the cornea is too closed to air head.
Movement range:≥30mm(front to back)/ 90mm(left to right)/ 30mm(vertical)
Jaw layer vertical movement: 0~65mm with under jaw layer
Display mode: 10.1-inch HDMI color LED touch monitor
Output port: USB2.0
Working platform: electric elevating platform

The warranty statement

Commitment: the manufacturer may provide the necessary information for the equipment parts designated by the manufacturer to be repairable.

Our company will provide equipment maintenance and free consultation for life.

2. The equipment is guaranteed free of charge for one year from the date of purchase on the premise of following this instruction manual.

3. Within the warranty period, the following items will be charged for maintenance:

Damage caused by failure to use, maintain or keep the product according to the instruction;

Without authorization of the company's personnel, unauthorized demolition/modification caused equipment damage;

Damage to equipment caused by accident, misuse, or force majeure
