Place of Origin:
China
Brand Name:
SYSEYE
Certification:
FDA
Model Number:
RetiCam 3100
Contact Us

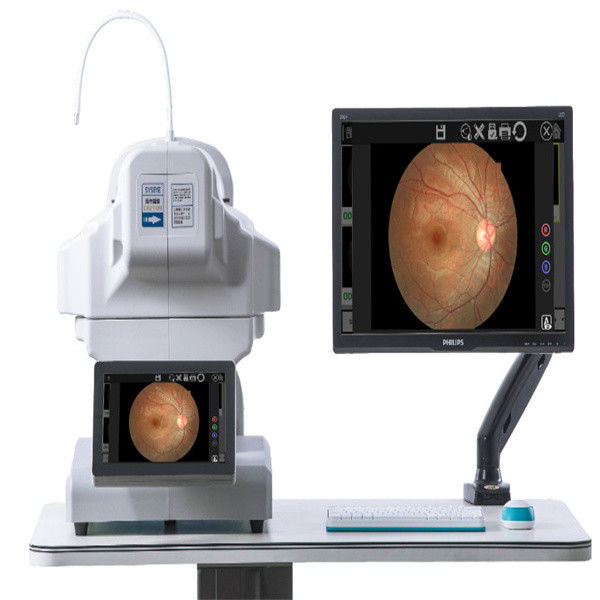

automated fundus camera professional-grade digital camera non-mydriatic, High image acquisition efficiency
Reticam 3100 fully automatic non-mydriatic fundus camera provides fundus color photos, FFA, FAF, no red light, anterior photography and small pupil imaging modes to meet the needs of medical institutions, supports digital remote imaging, and is suitable for remote image transmission.
Digital Fundus Camera Reticam 3100 is a highly recognized and popular automatic fundus imaging system around the world. Through dual camera imaging, image control and feature recognition, eye XYZ 3D automatic positioning is realized. Through CCD imaging feedback, the exposure is measured, and the exposure intensity is automatically and accurately determined, without the need for a doctor's complex operation. By controlling the focusing step length according to the image resolution, the image definition can be automatically adjusted to obtain a clear and accurate fundus image and help doctors make accurate judgments for patients.
Features:
1.Superior optics with a professional-grade digital camera
2.Fully automatic, non-mydriatic, High image acquisition efficiency
3.Multifunctional software system
| Acquisition Modes | Digital Fundus Camera/mydriatic Anterior photography /Red-free(optional)(FFA)/(FAF) |
| Field View | 50° |
| Working Distance | 35mm |
| Minimum Pupil | ≥3.3mm |
| Focus Modes | Manual/Auto |
| Alignment Modes | Double dots auxiliary |
| Exposure | Manual /Auto |
| Photography | SLR Camera |
| Image definition | 24 Megapixel |
| Compensation | ±25D |
| Fixation | External /Internal (any position available) |
| DICOM 3.0 | Support |
| Digital Fundus Camera in the world | |||
| Brand | TOPCON(NW-400) | DRS | NEWVISON(RETICAM3100) |
| operation | automatic(one key taking picutre)/manual | automatic(one key taking picutre)/manual | automatic(one key taking picutre)/manual |
| Acquisition modes | fundus/anterior/? | fundus/anterior/red-free filter | fundus/anterior/red-free filter/FFA(optional)/FAF(optional) |
| Filed of view | 45 degree | 40-45degree | 45-50degee |
| Mosic degee | 80 degree | 135degree | |
| Minimum pipil size | 3.3mm | 3.5mm | 3.3mm |
| Resolution | above 18megapiexl | sensor size:5 megapixel sensor resoultion: 48 pixel/degree | above18 megapixel (24 megapixel optional ) |
| Fixation | 9 internal + 1 outside fixaiton | 7 internal fixation | countless fixaiton, any position is available during range + 1 outside fixation |
| Technology of focus | Dual camrea technology | ||
| exposure ligh | standard | standard | new technology, more soft, one patient same eye can take picuture consecutive with almost same performace |
Company Introduction
The predecessor of Shenzhen New Vision Technology Co., Ltd. was established in 2011, with "technology empowerment, innovative vision" as the enterprise development concept, focusing on the continuous innovation and expansion of ophthalmic medical devices. The company consists of Chongqing Bio New Vision Medical Equipment Co., Ltd., which integrates R&D, manufacturing, sales and service. Obtained the national high-tech enterprise, "specialized and special new enterprise", "intellectual property advantage enterprise". Passed the CE13485 system certification, with more than 80 patents and software copyrights
