Place of Origin:
China
Brand Name:
SYSEYE
Certification:
FDA
Model Number:
RetiCam 3100
Contact Us

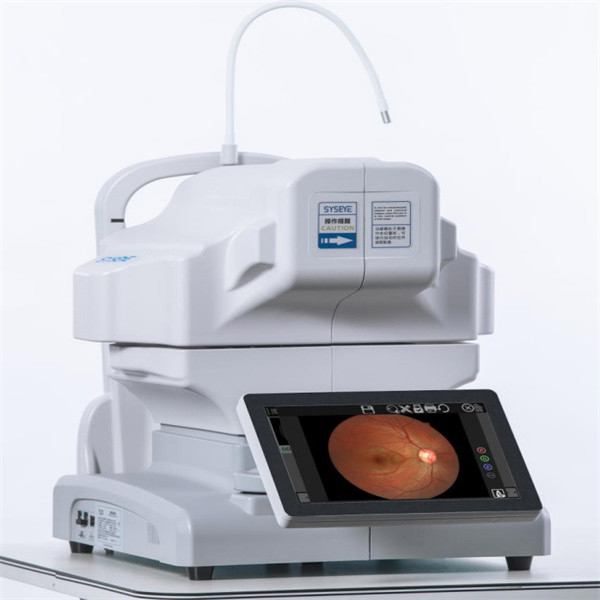

ultra wide field fundus camera Dual camera system minimum pupil size of 3.3mm
ultra wide field fundus camera RetiCam 3100 is to take photos of the fundus of the eye through a fundus camera. Can clearly see the retinal blood vessels, macular area, optic nerve, is of great significance to the diagnosis of various types of eye disease, check is simpler, a few minutes to complete, no pain, there is a vision loss could be presbyopia may also be ophthalmology, need through the slit lamp examination and fundus examination can be confirmed.
ultra wide field fundus camera RetiCam 3100 can be used to capture the anterior and posterior eye images. It has a field of view of 50 degrees for fundus imaging.
ultra wide field fundus camera Reticam 3100 is a highly recognized and popular automatic fundus imaging system around the world. Through dual camera imaging, image control and feature recognition, eye XYZ 3D automatic positioning is realized. Through CCD imaging feedback, the exposure is measured, and the exposure intensity is automatically and accurately determined, without the need for a doctor's complex operation. By controlling the focusing step length according to the image resolution, the image definition can be automatically adjusted to obtain a clear and accurate fundus image and help doctors make accurate judgments for patients.
| Acquisition Modes | Digital Fundus Camera/mydriatic Anterior photography /Red-free(optional)(FFA)/(FAF) |
| Field View | 50° |
| Working Distance | 35mm |
| Minimum Pupil | ≥3.3mm |
| Focus Modes | Manual/Auto |
| Alignment Modes | Double dots auxiliary |
| Exposure | Manual /Auto |
| Photography | SLR Camera |
| Image definition | 24 Megapixel |
| Compensation | ±25D |
| Fixation | External /Internal (any position available) |
| DICOM 3.0 | Support |
Features:
1.Superior optics with a professional-grade digital camera
• Soft exposure, incorporating advanced optical technology to reduce pupil miosis after exposure
• 24 million pixel professional digital camera, obtain high-definition fundus images, finely display lesions
• 135° imaging range, more peripheral retina images can be acquired, reducing missed diagnosis
2.Fully automatic, non-mydriatic, High image acquisition efficiency
• Fully automatic one-key shooting, simple operation interface, easy to learn
• Non-mydriatic, minimum pupil size of 3.3mm,Suitable for a wider range of pupil sizes and patients who cannot mydriasis
• Dual camera system, improve the accuracy and speed of eye alignment and focusing, and improve work efficiency
3.Multifunctional software system
•Powerful image processing functions, doctors can adjust gamma, contrast, brightness, color and other settings according to
their needs, and can easily obtain information such as lesion area and cup-to-plate ratio.
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
