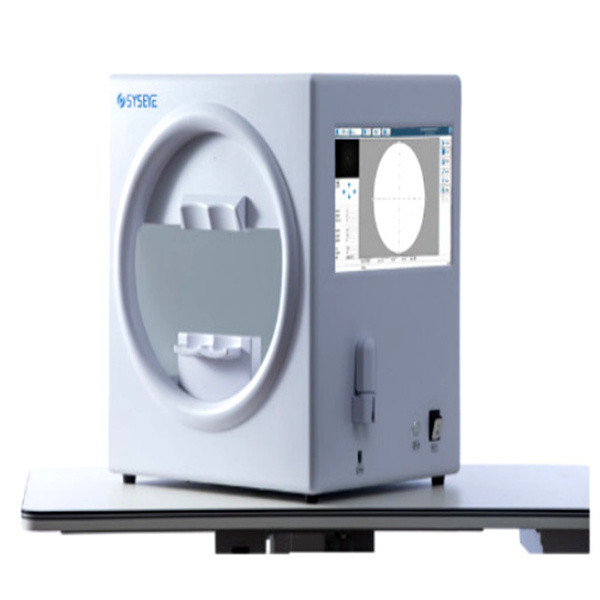

Visual Field Test Automated Perimetry Machine 10000 Asb Software Inspection Categories

Basic specification

small size Automated Perimetry Machine

Inspection range

90°

Inspection distance

30cm

Background light brightness

White 31.5asb

Visual target brightness

1asb--- -10000asb

Visual target size

GoldmannIII

Visual target interval time

200ms

Visual target interval time

Standard or adjustment according to patient reflection

Threshold test model

Center5-°16, center10° -68, 24 -2, 30-2, 30° -60° nasal step

Upper Threshold test model

30°- 40, 30°-76, P-60, 60°-81, 60°-120,190°-135 nasal side

Special detection strategy

Esterman monocular, Esterman binocular . user- customized test, 150P driver monocular fast detection, 150P driver monocular standard detection , upper 36 detection, blind spot detection,150horizontal straightness detection

Pupil size test

Automatic

Fixation monitoring

Blind spot monitoring , eye position eye position deviation alarm, eye deviation curve

Environment light detection

Automatic

Analysis software

Reliability analysis , single vision report, triple vision report, GPA half vision analysis, GPA glaucoma developing analysis , VFI vision index analysis

Operation system

Win7 above


Automated Perimetry Machine
1. Comprehensive real-time monitoring, Heikki-Kracau physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reducing the impact of pupil effect on visual field detection.
2. Personalized design, accurate clinical analysis, accurate and fast inspection strategy.
3. According to the international Goldman Sachs standard, provide various Calci test procedures and report analysis.
