Place of Origin:
China
Brand Name:
SYSEYE
Certification:
CE
Model Number:
BIO-1000
Contact Us
Video
visual field test machine Abundant inspection modes for both accuracy and speed

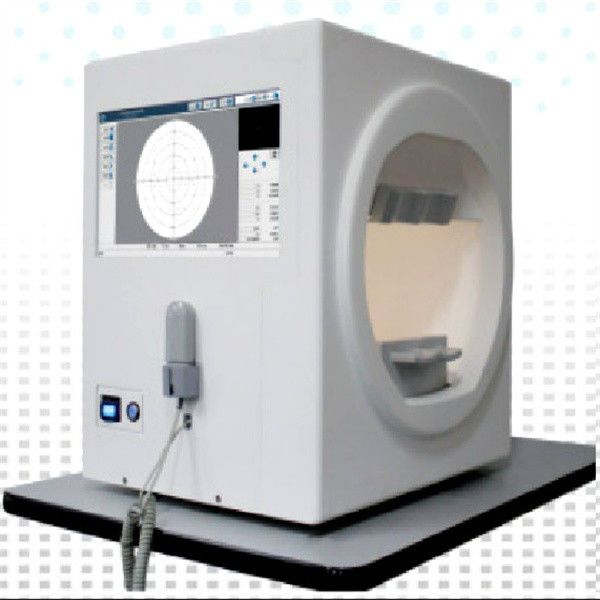

The Bio-1000 plus automated computer perimeter absorbs the advantage of international advanced perimetry device. It comprises the highly integrated computer, optics, machinery and electronics systems. Incorporated with the advantage configuration, comprehensive software inspection categories, it provide international and strictly in accordance with international Goldman standard, it provide scientific means for glaucoma,fundus disease, visual pathway injury and neurological disease.
Features of Automated Perimetry Machine
1. Comprehensive real-time monitoring, Heikki-Kracau physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reducing the impact of pupil effect on field of vision detection.
2. Personalized design, accurate clinical analysis, accurate and rapid examination strategy.
3. According to the international Goldman Sachs standard, provide a variety of Calcie test procedures and report analysis.
Specifications:
|
Basic specification |
small size Automated Perimetry Machine |
|
Inspection range |
90° |
|
Inspection distance |
30cm |
|
Background light brightness |
White 31.5asb |
|
Visual target brightness |
1asb--- -10000asb |
|
Visual target size |
GoldmannIII |
|
Visual target interval time |
200ms |
|
Visual target interval time |
Standard or adjustment according to patient reflection |
|
Threshold test model |
Center5-°16, center10° -68, 24 -2, 30-2, 30° -60° nasal step |
|
Upper Threshold test model |
30°- 40, 30°-76, P-60, 60°-81, 60°-120,190°-135 nasal side |
|
Special detection strategy |
Esterman monocular, Esterman binocular . user- customized test, 150P driver monocular fast detection, 150P driver monocular standard detection , upper 36 detection, blind spot detection,150horizontal straightness detection |
|
Pupil size test |
Automatic |
|
Fixation monitoring |
Blind spot monitoring , eye position eye position deviation alarm, eye deviation curve |
|
Environment light detection |
Automatic |
|
Analysis software |
Reliability analysis , single vision report, triple vision report, GPA half vision analysis, GPA glaucoma developing analysis , VFI vision index analysis |
|
Operation system |
Win7 above |
Transport and storage
*Visuality instruments in complete packaging can be shipped by regular shipping method or by the method specified in the contract. During transportation, preventive measures should be taken against moisture, sun protection, inversion, and severe vibration and impact.
*After packaging, the vision instrument should be stored in a clean room with an ambient temperature range of 0°C to 55°C, a relative humidity of ≤85%, an atmospheric pressure range of 760 hPa to 1060 hPa, no corrosive gases, and good ventilation.
*If it is necessary to transport or move the installed instruments within a short distance, the connecting wires between the instruments must be removed and transported separately. If the instrument needs to be transported over a long distance, it should be repacked in its original packaging for disposal.
