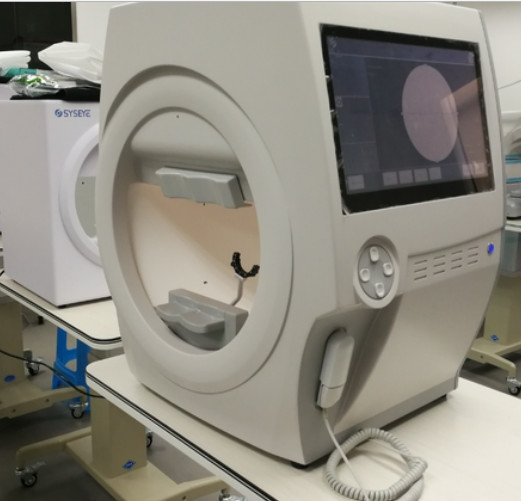

automated perimetry machine Scientific and intelligent Simple one-stop modular software design
Eye diseases can cause generalized or partial loss of vision in the field of vision. The purpose of the automated perimetry is to detect these defects early and track them closely to help doctors treat them. Clinical visual field testing mainly measures the visual function of the subject's eye at a specific point in the visual range, and can be used for the diagnosis of early glaucoma, long-term follow-up of glaucoma, neurofibropathies of various parts of the visual pathway, retinal diseases and nervous system diseases, and can be used for eye diseases. It provides a strong basis for the localization and diagnosis of intracranial diseases.
| Specification | ||
| Testing scope | 90° | |
| Testing distance | 30CM | |
| Background light | white31.5asb,yellow315asb | |
| Visual target | 0.08asb---10000asb(0-51DB) | |
| Target size | GoldmannⅠ, II ,III,IV,V | |
| Visual target stimulation time | 200ms | |
| Visual target interval time | Standard and custom | |
| Threshold policy | Macula,10-2,24-2,30-2,60-4,nasal side | |
| Upper threshold policy | C-40,C-64,C-76,FF-81,FF-120,FF-135…… | |
| Special detection strategy | Esterman monocular,Esterman binocular,upper36°screening,blind point testing | |
| Yellow-blue testing | Standard 440nm blue visual target + 315asb OG530yellow background brightness | |
| Visual target | Red ,blue | |
| Dynamic policy | Standard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic | |
| Custom policy | Static custom dynamic custom | |
| Pupil size measurement | Auto | |
| Fixation monitoring | Physiological blind spot monitoring,eye position monitoring,eye position moving alarm,eye tracking curve | |
| Environment light testing | Auto | |
| Analysis software | reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis | |
| System | Win7 above | |
| Others | ||
| Size | 412mm(length)* 497mm(width)* 513mm(height) | |
| Wight | 17kg | |
| Power |
100-240V HZ:50-60Hz |
|
Technical Features:
*Strictly implement Goldman Sachs International Standards.
*Halogen projection system: The stimulating light source comes from the broadband visible spectrum, fully satisfying the stimulation of colored cone cells.
*Accurate and granular database of normal populations of all age groups, identifying more subtle early visual field defects.
*GHT glaucoma half vision analysis, making glaucoma diagnosis easier.
*GPA glaucoma progress analysis upgrade, mild glaucoma development is obvious.
*Standard SWAP blue-yellow perimetry, sensitive to early visual field defects. *Scientific and intelligent interactive detection strategy, 30° field of view detection only takes 3 minutes.
*Simple one-stop modular software design, it only takes 2 minutes to learn how to operate the equipment.
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
