Fan Scan B Scan Machine 10MHz Observing Retinal Detachment

Fan Scan B Scan Machine 10MHz Observing Retinal Detachment

10MHz B Scan Machine

40mm B Scan Machine

fan scan refurbished ultrasound machine

Place of Origin:

China

Brand Name:

SYSEYE

Certification:

CE

Model Number:

RetiWave1000

Contact Us

Request A Quote
Product Details
Product Name:
Directly Ophthalmic Ultrasonic Scanner
Size:
340mm(L) X 320mm(W) X 115mm(H)
Weight:
10Kg
Power Supply:
100~240V 50/60V
Probe Frequency:
10MHz
Measuring Mode:
Contact
Measuring Range:
Over 5mm-40mm
Feature:
Scan B Displays Profile Images Of The Eyeball Clearly And Directly
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$4,000,00-$4,600.00
Packaging Details
340mm(L) x 320mm(W) x 115mm(H)
Delivery Time
5 working days
Payment Terms
T/T
Supply Ability
100
Product Description

Diagnosis Of Intraocular Diseases And Ocular Trauma Ophthalmic Ultrasonic Scanner



To myopia can use A type Ultrasonic Scanner diagnostic instrument to measure the depth of the anterior chamber, crystal thickness, length of the eye axis, etc., in order to observe the change of the eye, myopia development degree; For every 1mm increase in the axis of the eye, myopia will increase by 300 degrees. Axial length is measured by A supermeasurement. It is very important for the diagnosis of keratoconus and the prediction of the development of high myopia.

B-type ultrasound diagnostic instrument can help to observe the relationship between vitreous opacity, detachment and retina, and detect whether there is retinal detachment, especially in patients with opacity of refractive interstitium, such as corneal plaque and cataract. For patients with high myopia retinal detachment, ultrasound can be used to investigate the retinal restoration.



Ultrasonic Scanner functions

RetiWave1000 ophthalmic AB ultrasound diagnostic instrument is a complete ultrasound system, which has the following basic functions:

1.  A super function is the measurement of eye axis length.

2.  B ultrasonic function is fan scan.

3.  IOL calculation function USES 6 formulas to calculate the artificial crystal.



Feature:



1). 12.1" color and touch screen .

2).  Ultrasonic Scanner With the same software as Quantel , top one in China

With advanced intelligent digital software and parameters of freezed and Stored images could be adjusted voluntarily.

3). Can have different results on the report according to different constants A

Scan A measures data for every part of the eyeball as anterior chamber depth, lens thickness axial length and so on which are needed in ophthalmic surgeries , and calculates IOL by axial length.

4). B scanner use electromagnetic ,better save B probe life .

Scan B displays profile images of the eyeball clearly and directly. Scanning anatomical forms and nidi inside the eyeball, doctors can diagnose accurately for examination of cataract , vitreous body disease, ocular trauma,detachment of retina or choroid , macula disease , and intraocular tumor, etc

5).  B scanner ,video playbackof 100 images.

6).  A scanner , one group with 10 data to get average ,At the same time the accuracy is 0.05mm



Technical Data



A Scan biometry
Probe frequency 10MHz
Measuring mode contact
Measuring range Over 5mm-40mm
Measuring error ≤±0.05mm
Measuring type Length of optic axis , automatic calculation , result analysis auto ,
Image freezing auto+preservable, manual
Intraocular lens implantation (IOL)formula SRK-T, SRX II, HOLLADAY, BINKHORST-II, HOFFER-Q,HAIGIS
Gain 20-110dB
Time gain adjustment 0-30dB
B Scan patterns
Probe frequency 10MHz
Probing depth ≥50mm
Axial Resolution ≤0.2mm
Lateral resolution ≤0.3mm
Gain adjustment 20-110dB
Time gain adjustment 0-30dB
Operation mode Eyecup, gel, aqueous capsule
Post-processing measuring tools Area, length, mark and annotation
Review 100 images available
Others
Size 340mm*320mm*115mm
weight 10kg
Power supply 100-240V 50/60Hz

Fan Scan B Scan Machine 10MHz Observing Retinal Detachment 0

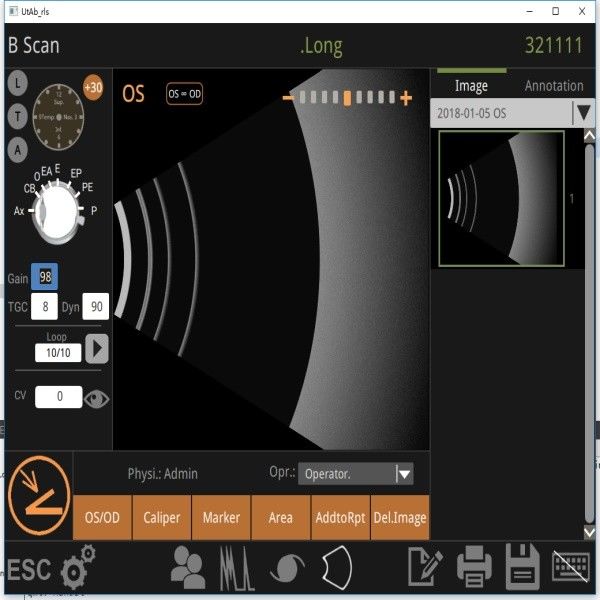

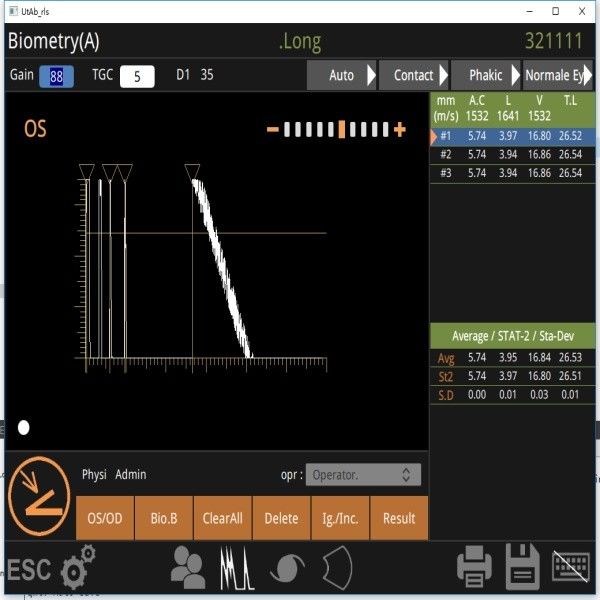

SOFTWARE OF Ultrasonic Scanner

AB-1000 Quantel same software ophthalmic ultrasound ab Scan





PACKAGE



AB-1000 Quantel same software ophthalmic ultrasound ab Scan
