High Resolution SD OCT Machine Non Contact Pathological Study

High Resolution SD OCT Machine Non Contact Pathological Study

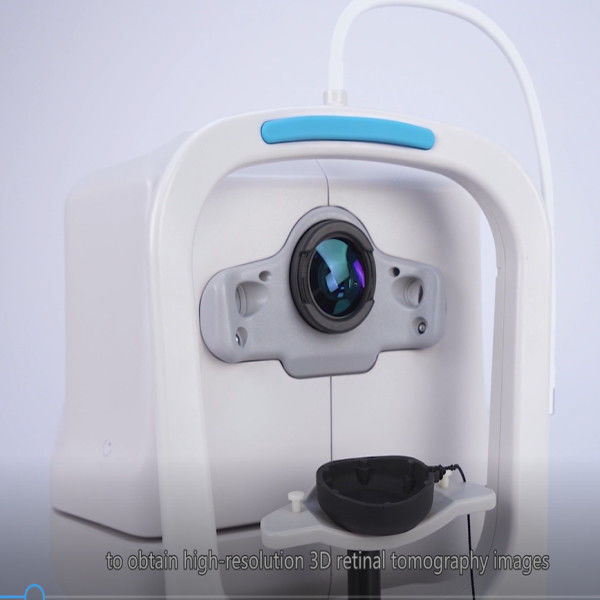

High Resolution SD OCT Machine

Non Contact SD OCT Machine

2.5mm oct machine ophthalmology

Place of Origin:

China

Brand Name:

SYSEYE

Certification:

TUV

Model Number:

RetiView 500

Contact Us

Request A Quote
Product Details
Product Name:
Pathological Study SD OCT Machine
Dimensions Weight:
34 Kg (75 Lbs)
Axial Resolution:
≤6 µm (in Tissue)
Transverse Resolution:
≤20 µm (in Tissue)
Scan Depth:
≥2.5 Mm (in Air)
Focus Adjustment:
-15D To +15D
Pupil Diameter:
≥3 Mm
Feature:
To Help Doctors Explore The Pathogenesis Of The Disease
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$18,500.00-$21,900.00
Packaging Details
497 mm × 395 mm × 490 mm (L × W × H) 34 kg (75 lbs)
Delivery Time
5 working days
Payment Terms
T/T
Supply Ability
100
Product Description

 To Help Doctors Explore The Pathogenesis Of The Disease SD OCT Machine



SD OCT Machine(Optical Coherence Tomography) is a high-resolution, non-contact biological tissue imaging technique. Since the early 1990 s application in ophthalmology clinical, since the technology enables us to get similar to eye tissue pathological changes in the living image, improve our understanding of some disease development process, is the ophthalmic diagnostic radiology, ultrasound diagnosis, angiographic diagnosis after another new imaging diagnostic techniques, And has become the development trend and tide of ophthalmic diagnosis and treatment technology.

Compact Design



Features:

1. Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
2. PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
3. Easy Installation:No complex connection or setup. Compact body can fit in even small space.

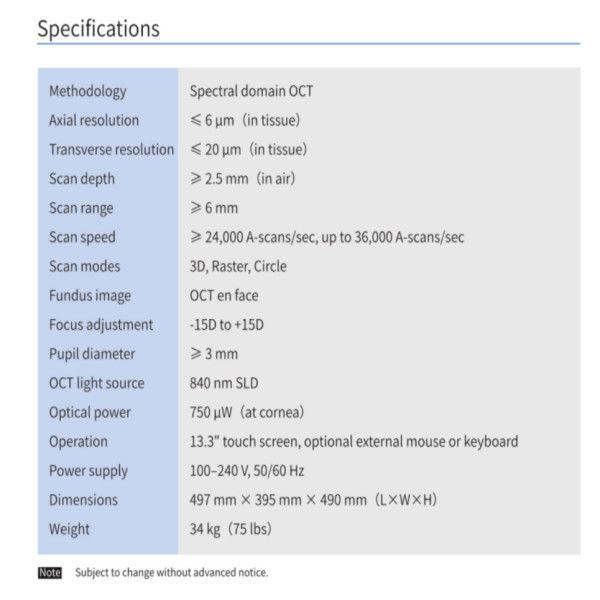

Specifications of  SD OCT Machine



Methodology Spectral domain OCT
Axial resolution ≤6 µm (in tissue)
Transverse resolution ≤20 µm (in tissue)
Scan depth ≥2.5 mm (in air)
Scan range ≥6 mm
Scan speed ≥24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes 3D, Raster, Circle
Fundus image OCT en face
Focus adjustment -15D to +15D
Pupil diameter ≥3 mm
OCT light source 840 nm SLD
Optical power 750 µW (at cornea)
Operation 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz
Power supply 497 mm × 395 mm × 490 mm (L × W × H)
Dimensions Weight 34 kg (75 lbs)





SD OCT Machine  has never been so affordable. More people can benefit from the advanced technology now.



Step 1
Choose left or right eye. Push the direction buttons to move the target eye to the center of the field of view, then start data acquisition.
Step 2
Enter the data acquisition interface. The device is able to search for the OCT signal and optimize it automatically.
Step 3

Browse and analyze the acquired images.

High Resolution SD OCT Machine Non Contact Pathological Study 0

High Resolution SD OCT Machine Non Contact Pathological Study 1

High Resolution SD OCT Machine Non Contact Pathological Study 2

High Resolution SD OCT Machine Non Contact Pathological Study 3

High Resolution SD OCT Machine Non Contact Pathological Study 4
