Place of Origin:
China
Brand Name:
SYSEYE
Certification:
CE
Model Number:
BIO-1000
Contact Us
Video
Video
Video
Video

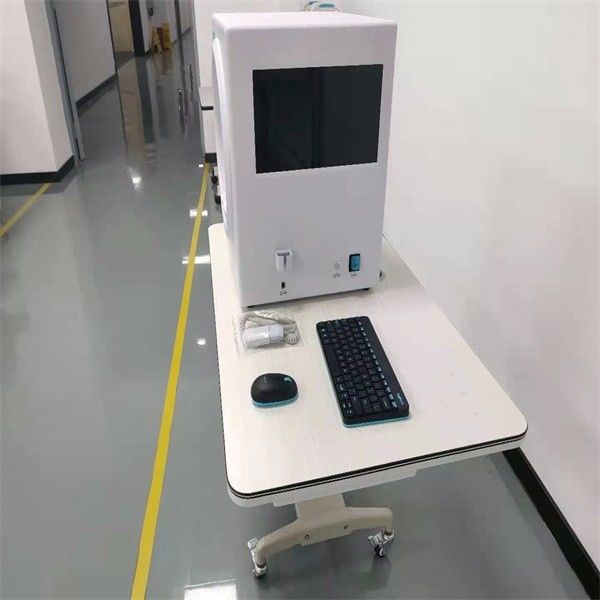

The Accuracy Of Visual Field Diagnosis Is Improved Visual Field Analyzer
The purpose of visual field examination for glaucoma is twofold: to detect the presence of optic nerve damage and to monitor the progression of the disease. Visual field defect was detected to determine the presence of optic nerve damage. The diagnosis of glaucoma is not completely determined by intraocular pressure. High intraocular pressure alone without optic disc damage and corresponding visual field defect can only be diagnosed as hyperocular pressure. In contrast, in normal intraocular glaucoma, the intraocular pressure is normal, with only optic disc changes and visual field defects. Therefore, visual field defect is one of the main indicators for the diagnosis of glaucoma, so the Visual Field Analyzer is the doctor's best help, which is especially important in primary open Angle glaucoma. Clinically, patients with ocular hypertension should not be treated. Regular follow-up of fundus and visual field should be conducted. Once early optic disc damage and visual field changes occur, treatment should be given.
Specifications:
|
Basic specification |
small size Visual Field Analyzer |
|
Inspection range |
90° |
|
Inspection distance |
30cm |
|
Background light brightness |
White 31.5asb |
|
Visual target brightness |
1asb--- -10000asb |
|
Visual target size |
GoldmannIII |
|
Visual target interval time |
200ms |
|
Visual target interval time |
Standard or adjustment according to patient reflection |
|
Threshold test model |
Center5-°16, center10° -68, 24 -2, 30-2, 30° -60° nasal step |
|
Upper Threshold test model |
30°- 40, 30°-76, P-60, 60°-81, 60°-120,190°-135 nasal side |
|
Special detection strategy |
Esterman monocular, Esterman binocular . user- customized test, 150P driver monocular fast detection, 150P driver monocular standard detection , upper 36 detection, blind spot detection,150horizontal straightness detection |
|
Pupil size test |
Automatic |
|
Fixation monitoring |
Blind spot monitoring , eye position eye position deviation alarm, eye deviation curve |
|
Environment light detection |
Automatic |
|
Analysis software |
Reliability analysis , single vision report, triple vision report, GPA half vision analysis, GPA glaucoma developing analysis , VFI vision index analysis |
|
Operation system |
Win7 above
|
| Feature |
Visual Field Analyzer 1. Comprehensive real-time monitoring, heiji-krakau physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection. 2. Personalized design, accurate clinical analysis, accurate and rapid examination strategy. 3. Under international Goldman standard, providing a variety of calssic test procedures and report analysis.
|
Features of Visual Field Analyzer
1. Comprehensive real-time monitoring, heiji-krakau physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection.
2. Personalized design, accurate clinical analysis, accurate and rapid examination strategy.
3. Under international Goldman standard, providing a variety of calssic test procedures and report analysis.
4. Provide a comprehensive software testing program.
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
