Eye Scanner Optical Coherence Tomography Non Invasive Imaging Device

Eye Scanner Optical Coherence Tomography Non Invasive Imaging Device

Non Invasive Optical Coherence Tomography Device

Eye Scanner Optical Coherence Tomography Device

Optical Coherence Tomography Imaging Device

Place of Origin:


Brand Name:




Model Number:

RetiView 500

Contact Us

Request A Quote
Product Details
Product Name:
Noninvasive Ophthalmic Imaging Diagnostic Techniques Optical Coherence Tomography Machine
Use Condition:
Temperature 10~40℃
Storage And Transportation:
Temperature -40~70℃
Transverse Resolution:
≤20 µm (in Tissue)
Scan Depth:
≥2.5 Mm (in Air)
Operating System:
Windows 8.1 EMB X64
Pupil Diameter:
≥3 Mm
Noninvasive Ophthalmic Imaging Diagnostic Techniques
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
497 mm × 395 mm × 490 mm (L × W × H) 34 kg (75 lbs)
Delivery Time
5 working days
Payment Terms
Supply Ability
Product Description

oct eye scanner non-invasive imaging device with micrometer range resolution


Optical Coherence Tomography Machine images showed that fluid from the retinal detachment or cleavage cavity had channels leading behind the optic nerve and had no communication with the vitreous body. Optical Coherence Tomography Machine helps us to reunderstand the nature of the disease, but OCT clearly shows that the macular neurocortex has thinned and almost disappeared. If pathological myopia does not have crack again of extremely shallow break off or be amalamative retinal split, retinal split can be seen at congenital and a variety of diseases such as inflammation, trauma, denaturation, be in pathological myopia nevertheless more see. All-in-one design with optional larger external monitor guarantees an installation-free experience.Plug the power cable and power on the system,then you are ready to go.


Compact Design

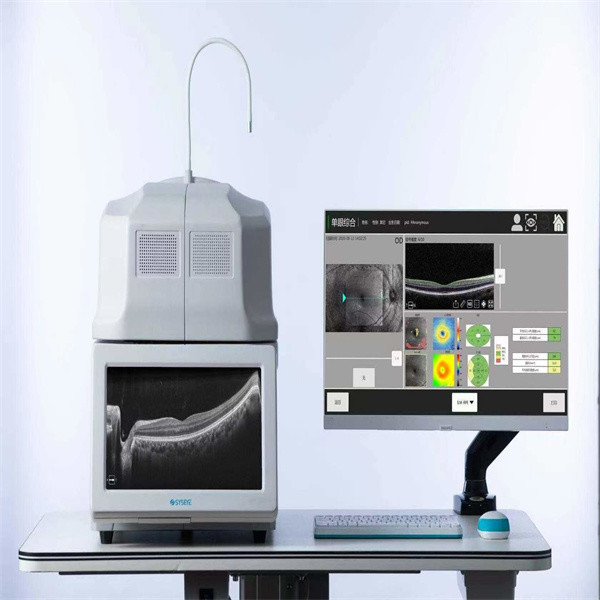

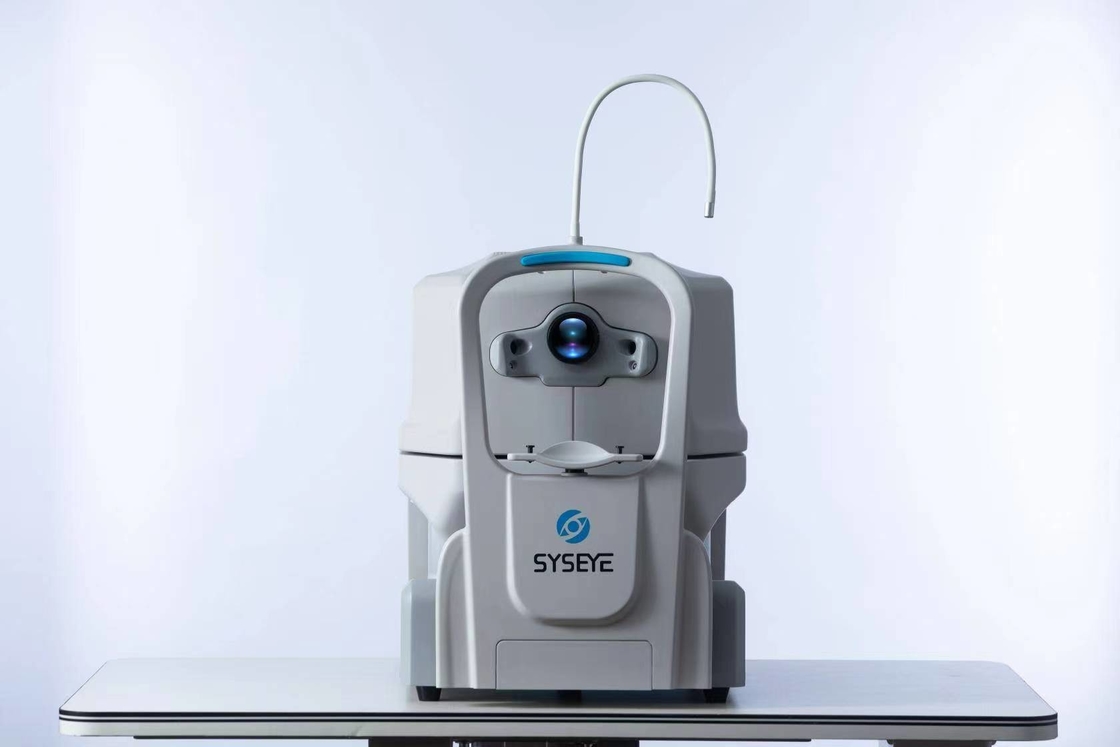

The Retiview 500 is an Optical Coherence Tomography (OCT) system intended for use as a non-invasive imaging device for viewing and measuring ocular tissue structures with micrometer range resolution. The Retiview 500 is a computer controlled ophthalmic imaging system.
The device scans the patient’s eye using a low coherence interferometer to measure the reflectivity of retinal tissue


Specifications of  Optical Coherence Tomography Machine


Methodology Spectral domain OCT
Axial resolution ≤6 µm (in tissue)
Transverse resolution ≤20 µm (in tissue)
Scan depth ≥2.5 mm (in air)
Scan range ≥6 mm
Scan speed ≥24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes 3D, Raster, Circle
Fundus image OCT en face
Focus adjustment -15D to +15D
Pupil diameter ≥3mm
OCT light source 840 nm SLD
Optical power 750 µW (at cornea)
Operation 13.3” touch screen, optional external mouse or keyboard
Power supply 100-240 V, 50/60 Hz
Dimensions Weight 34 kg (75 lbs)


Eye Scanner Optical Coherence Tomography Non Invasive Imaging Device 0






Company Introduction

Eye Scanner Optical Coherence Tomography Non Invasive Imaging Device 1

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
