High Resolution Optical Coherence Tomography Machine For Microscopic Imaging

High Resolution Optical Coherence Tomography Machine For Microscopic Imaging

Compact Optical Coherence Tomography Machine

Automatic Optical Coherence Tomography Machine

Microscopic Imaging Oct Scan Machine

Place of Origin:

China

Brand Name:

SYSEYE

Certification:

TUV

Model Number:

RetiView 500

Contact Us

Request A Quote
Product Details
Product Name:
Compact Design Optical Coherence Tomography Machine
Mode Of Operation:
Continuous Operation
Axial Resolution:
≤6 µm (in Tissue)
Transverse Resolution:
≤20 µm (in Tissue)
Scan Depth:
≥2.5 Mm (in Air)
Focus Adjustment:
-15D To +15D
Pupil Diameter:
≥3 Mm
Protection Against Electrical Shock.:
Class I
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$18,500.00-$21,900.00
Packaging Details
497 mm × 395 mm × 490 mm (L × W × H) 34 kg (75 lbs)
Delivery Time
5 working days
Payment Terms
T/T
Supply Ability
100
Product Description

High Resolution Optical Coherence Tomography Machine for Microscopic Imaging



The Retiview 500 is an Optical Coherence Tomography (OCT) system intended for
use as a non-invasive imaging device for viewing and measuring ocular tissue
structures with micrometer range resolution. The Retiview 500 is a computer
controlled ophthalmic imaging system. The device scans the patient’s eye using a
low coherence interferometer to measure the reflectivity of retinal tissue.



Compact Design



Features:

1. Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
2. PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
3. Easy Installation:No complex connection or setup. Compact body can fit in even small space.



Specifications of  Optical Coherence Tomography Machine



Methodology Spectral domain OCT
Axial resolution ≤6 µm (in tissue)
Transverse resolution ≤20 µm (in tissue)
Scan depth ≥2.5 mm (in air)
Scan range ≥6 mm
Scan speed ≥24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes 3D, Raster, Circle
Fundus image OCT en face
Focus adjustment -15D to +15D
Pupil diameter ≥3 mm
OCT light source 840 nm SLD
Optical power 750 µW (at cornea)
Operation 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz
Power supply 497 mm × 395 mm × 490 mm (L × W × H)
Dimensions Weight 34 kg (75 lbs)





advantages:

1. Fully automatic one-key operation, automatic eye tracking, automatic tomography of the macula, optic disc and other parts

2. Comprehensive measurement analysis tools

3. Rich image editing software

4. Monocular comprehensive analysis, optic disc and RNFL analysis

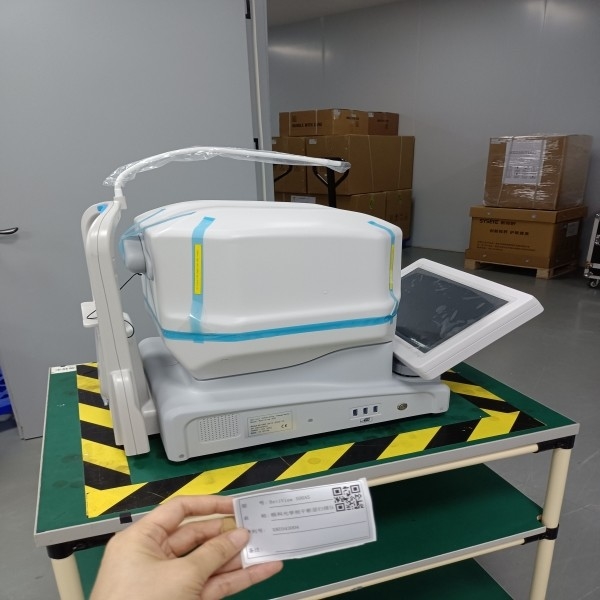

High Resolution Optical Coherence Tomography Machine For Microscopic Imaging 0

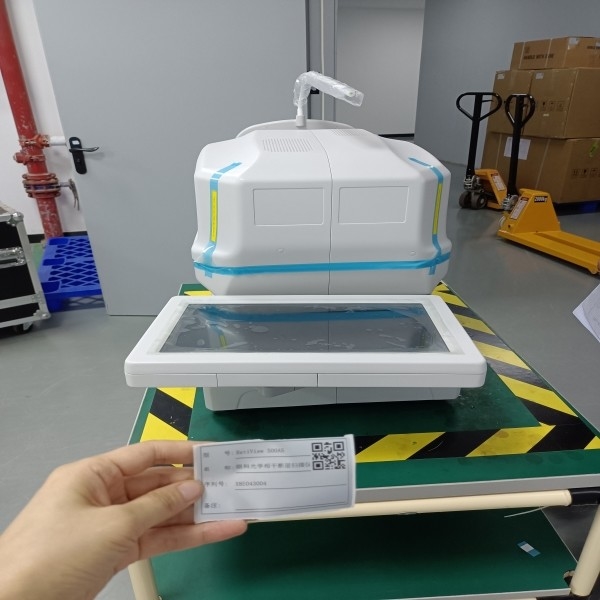

High Resolution Optical Coherence Tomography Machine For Microscopic Imaging 1

High Resolution Optical Coherence Tomography Machine For Microscopic Imaging 2

High Resolution Optical Coherence Tomography Machine For Microscopic Imaging 3

High Resolution Optical Coherence Tomography Machine For Microscopic Imaging 4

Company Introduction

High Resolution Optical Coherence Tomography Machine For Microscopic Imaging 5

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.

High Resolution Optical Coherence Tomography Machine For Microscopic Imaging 6
