Place of Origin:
China
Brand Name:
SYSEYE
Certification:
TUV
Model Number:
RetiView 500
Contact Us

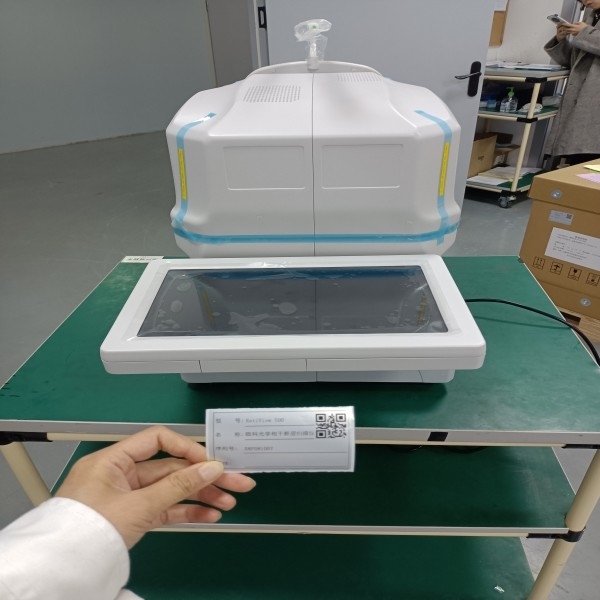

Fully Display Three-Dimensional Structure Information Fundus Optical Coherence Tomography Machine
RetiView 500 is an automated posterior segment OCT imaging device. It integrates advanced automatic controlled imaging technology, allowing users to obtain the patient's retinal OCT data with the simplest operation, fully display the three-dimensional structure information of the fundus, and help doctors make accurate judgment.
Specifications of Optical Coherence Tomography Machine
| Methodology | Spectral domain OCT |
| Axial resolution | ≤6 µm (in tissue) |
| Transverse resolution | ≤20 µm (in tissue) |
| Scan depth | ≥2.5 mm (in air) |
| Scan range | ≥6 mm |
| Scan speed | ≥24,000 A-scans/sec, up to 36,000 A-scans/sec |
| Scan modes | 3D, Raster, Circle |
| Fundus image | OCT en face |
| Focus adjustment | -15D to +15D |
| Pupil diameter | ≥3 mm |
| OCT light source | 840 nm SLD |
| Optical power | 750 µW (at cornea) |
| Operation | 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz |
| Power supply | 497 mm × 395 mm × 490 mm (L × W × H) |
| Dimensions Weight | 34 kg (75 lbs) |
Compact Design
Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
PC Inside
Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
Easy Installation
No complex connection or setup. Compact body can fit in even small space.
Affordable Quality:
We believe that less is more. The simple design of RetiView 500 Optical Coherence Tomography Machine reduces the cost of the device without sacrificing the image quality.
Optical Coherence Tomography Machine has never been so affordable. More people can benefit from the advanced technology now.
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
