Peripheral Vision Test Equipment For Scientific Research / Clinical Use

Peripheral Vision Test Equipment For Scientific Research / Clinical Use

Peripheral Perimetry Vision Test Equipment

Class I Perimetry Test Machine

Scientific Research Perimetry Test Machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Important Instrumen Perimetry Test Machine
Mode Of Operation:
Continuous Operation
Degree Of Protection Against Ingress Of Liquids:
Protection Against Electrical Shock.:
Class I
Testing Scope:
Testing Distance:
Important Instrument For The Examination Of Blind Eye Diseases
Visual Target:
Red ,blue
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
412mm(length)* 497mm(width)* 513mm(height)
Delivery Time
5 working days
Payment Terms
Supply Ability
Product Description

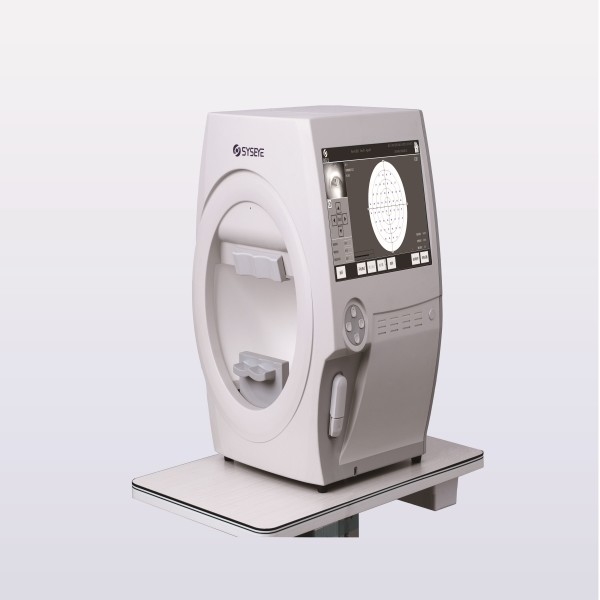

peripheral vision test equipment For scientific research, teaching, and clinical use
The Visual Field Analyzer (BIO-1000/BIO-1000-Plus) instrument belongs to the category of medical examination equipment. It is an important means to determine the development of glaucoma, optic chiasm damage, neurological disease, toxic amblyopia, retinal disease, choroidal disease and other diseases by alignment the change of visual field. This product For scientific research, teaching, and clinical use. Perimeter is suitable for auxiliary diagnosis of glaucoma.

Testing scope90°
Testing distance30CM
Background lightwhite31.5asb,yellow315asb
Visual target0.08asb---10000asb(0-51DB)
Target sizeGoldmannⅠ, II ,III,IV,V
Visual target stimulation time200ms
Visual target interval timeStandard and custom
Threshold policyMacula,10-2,24-2,30-2,60-4,nasal side
Upper threshold policyC-40,C-64,C-76,FF-81,FF-120,FF-135……
Special detection strategyEsterman monocular,Esterman binocular,upper36°screening,blind point testing
Yellow-blue testingStandard 440nm blue visual target + 315asb OG530yellow background brightness
Visual targetRed ,blue
Dynamic policyStandard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic
Custom policyStatic custom dynamic custom
Pupil size measurementAuto
Fixation monitoringPhysiological blind spot monitoring,eye position monitoring,eye position moving alarm,eye tracking curve
Environment light testingAuto
Analysis softwarereliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis
SystemWin7 above
Size412mm(length)* 497mm(width)* 513mm(height)

100-240V HZ:50-60Hz

Feature of Perimetry Test Machine
* Strictly implement international high standards in technology.
* The database is very rich and complete, identifying more subtle early visual field defects.
* It is easier to diagnose glaucoma by analyzing the half vision of glaucoma.
* GPA analysis of glaucoma progression was upgraded, and mild glaucoma developed significantly.
Perimetry Test Machine features the followingEasy operation
 Touch screen design speeds data input.
 Menu and icon commands simplify operation.
 On-screen video eye monitor is standard on all models.
 Confirmation screens reduce unintentional data loss.
A keyboard and trackball or mouse can be connected to the Visual Field Analyzer as optional
datainput devices.
Perimetry Test Machine other feature
* Scientific intelligent interactive detection strategy, 30 ° It only takes 3 minutes to detect the range visual field.
* Simple one-stop modular software design, equipment operation learning only takes 2 minutes
* the same function of Zeiss Humphrey 860
* Halogen projection system: the stimulating light source comes from the broadband visible spectrum, which fully meets the stimulation of color cone cells.


The instrument should also be placed away from direct sunlight.

  • To ensure smooth operation, install the instrument on a level floor free of vibrations.

Also, do not place anything on the instrument.

  • Connect all cables properly before using.
  • Use the power at rated voltage.
  • When not in use, switch off the power source and apply the rubber cap and dust cover.
