Place of Origin:
China
Brand Name:
SYSEYE
Certification:
CE
Model Number:
RetiWave1000
Contact Us

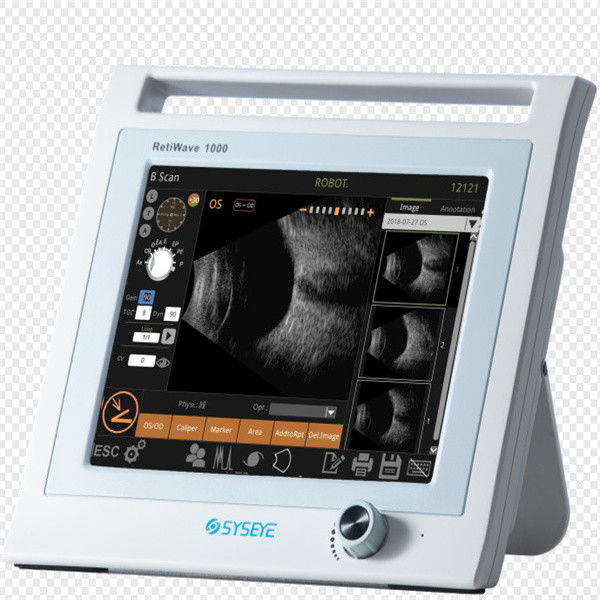

ultra A/B scanning machine suitable for ophthalmic examination used in hospitals
A/B ultrasound mainly consists of the main part and the imaging system.
The host system is the control center of the whole system. It is composed of A/B super host, external power module and probe bracket.
A/B ultrasound instrument is suitable for ophthalmic examination, A ultrasound measures the length of the eye axis, and B ultrasound diagnoses intraocular diseases and eye injuries. It can be used in hospitals and other places.
RetiWave1000 ophthalmic AB ultrasound diagnostic instrument is a complete ultrasound system, which has the following basic functions:
1. A super function is the measurement of eye axis length.
2. B ultrasonic function is fan scan.
3. IOL calculation function USES 6 formulas to calculate the artificial crystal.
Feature:
1). 12.1" color and touch screen .
2). Ultrasonic Scanner With the same software as Quantel , top one in China
With advanced intelligent digital software and parameters of freezed and Stored images could be adjusted voluntarily.
3). Can have different results on the report according to different constants A
Scan A measures data for every part of the eyeball as anterior chamber depth, lens thickness axial length and so on which are needed in ophthalmic surgeries , and calculates IOL by axial length.
4). B scanner use electromagnetic ,better save B probe life .
Scan B displays profile images of the eyeball clearly and directly. Scanning anatomical forms and nidi inside the eyeball, doctors can diagnose accurately for examination of cataract , vitreous body disease, ocular trauma,detachment of retina or choroid , macula disease , and intraocular tumor, etc
5). B scanner ,video playbackof 100 images.
6). A scanner , one group with 10 data to get average ,At the same time the accuracy is 0.05mm
Technical Data
| A Scan biometry | |
| Probe frequency | 10MHz |
| Measuring mode | contact |
| Measuring range | Over 5mm-40mm |
| Measuring error | ≤±0.05mm |
| Measuring type | Length of optic axis , automatic calculation , result analysis auto , |
| Image freezing | auto+preservable, manual |
| Intraocular lens implantation (IOL)formula | SRK-T, SRX II, HOLLADAY, BINKHORST-II, HOFFER-Q,HAIGIS |
| Gain | 20-110dB |
| Time gain adjustment | 0-30dB |
| B Scan patterns | |
| Probe frequency | 10MHz |
| Probing depth | ≥50mm |
| Axial Resolution | ≤0.2mm |
| Lateral resolution | ≤0.3mm |
| Gain adjustment | 20-110dB |
| Time gain adjustment | 0-30dB |
| Operation mode | Eyecup, gel, aqueous capsule |
| Post-processing measuring tools | Area, length, mark and annotation |
| Review | 100 images available |
| Others | |
| Size | 340mm*320mm*115mm |
| weight | 10kg |
| Power supply | 100-240V 50/60Hz |
SOFTWARE OF Ultrasonic Scanner
PACKAGE
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
