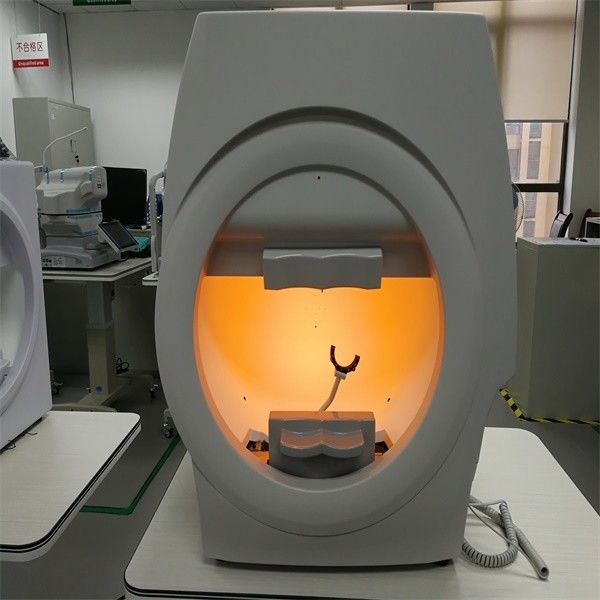

Automated Yellow 315 Asb Projection Perimeter Visual Field Test Machine Scientific

Automated Yellow 315 Asb Projection Perimeter Visual Field Test Machine Scientific

Automated Projection Perimeter

yellow 315 asb Projection Perimeter

Scientific Projection Perimeter

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Accurate And Elaborate Database Of Normal Population Projection Perimeter
Background Light:
White 31.5asb、yellow 315asb
Environment Light Testing:
100-240V HZ:50-60Hz
Testing Scope:
Testing Distance:
Accurate And Elaborate Database Of Normal Population
Windows 7 Above
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
412mm(length)* 497mm(width)* 513mm(height)
Delivery Time
5 working days
Payment Terms
Supply Ability
Product Description

automated visual field test machine Goldman international standard scientific and intelligent


The Visual Field Analyzer (BIO-1100) instrument belongs to the category of medical examination equipment. It is an important means to determine the development of glaucoma, optic chiasm damage, neurological disease, toxic amblyopia, retinal disease, choroidal disease and other diseases by alignment the change of visual field. This product For scientific research, teaching, and clinical use. Perimeter is suitable for auxiliary diagnosis of glaucoma


Technical Specification of Projection Perimeter


Testing scope 90°
Testing distance 30CM
Background light white31.5asb,yellow315asb
Visual target 0.08asb---10000asb(0-51DB)
Target size GoldmannⅠ, II ,III,IV,V
Visual target stimulation time 200ms
Visual target interval time Standard and custom
Threshold policy Macula,10-2,24-2,30-2,60-4,nasal side
Upper threshold policy C-40,C-64,C-76,FF-81,FF-120,FF-135……
Special detection strategy Esterman monocular,Esterman binocular,upper36°screening,blind point testing
Yellow-blue testing Standard 440nm blue visual target + 315asb OG530yellow background brightness
Visual target Red ,blue
Dynamic policy Standard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic
Custom policy Static custom dynamic custom
Pupil size measurement Auto
Fixation monitoring Physiological blind spot monitoring,eye position monitoring,eye position moving alarm,eye tracking curve
Environment light testing Auto
Analysis software reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis
System Win7 above
Size 412mm(length)* 497mm(width)* 513mm(height)
Wight 17kg

100-240V HZ:50-60Hz


Projection Perimeter features the following Easy operation
 Touch screen design speeds data input.
 Menu and icon commands simplify operation.
 On-screen video eye monitor is standard on all models.
 Confirmation screens reduce unintentional data loss.
A keyboard and trackball or mouse can be connected to the Visual Field Analyzer as optional
datainput devices


Feature of Projection Perimeter


* Rigorous implementation of Goldman international standard.

* Halogen projection system:Stimulation light source is from wide band visible spectrum, fully meet colored cone cell stimulation.

* Accurate and elaborate database of normal population of all age groups, recognition of more subtle early visual field defects.

* GHT glaucoma semi vision analysis, make glaucoma diagnosis easier.

* GPA glaucoma progression analysis upgrade, slight glaucoma development is obvious.

* Standard SWAP blue-yellow visual field examination, sensitive to earlier visual field defects * Scientific and intelligent interactive inspection   strategy, 30° range visual field inspection only takes 3 minutes.

* Projection Perimeter Simple one-stop modular software design, equipment operation learning only 2 minutes

* Zeiss humphrey 860 same function


Automated Yellow 315 Asb Projection Perimeter Visual Field Test Machine Scientific 0Automated Yellow 315 Asb Projection Perimeter Visual Field Test Machine Scientific 1


Company Introduction

Automated Yellow 315 Asb Projection Perimeter Visual Field Test Machine Scientific 2

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
