peripheral vision test equipment Goldmann international standards Impact body
Overview

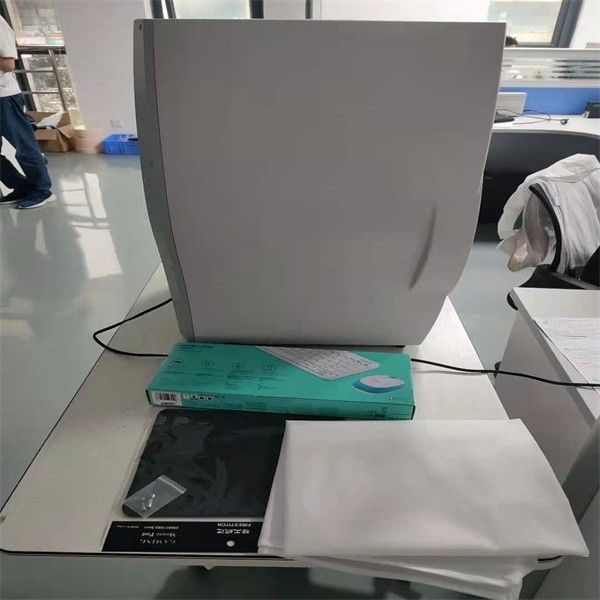

The Bio-1100 projection perimeter refers to Goldmann international standards, it integrates a variety of features. The background illumination, the size of the stimulus cursor and its brightness are standardized. Dynamic and static visual field detection can be performed, so that the whole picture of the visual field can be understood. It is used for the diagnosis and monitoring of glaucoma, vision and optic nerve diseases.
Features:
Impact body, Humanize design
Equipped with a variety of fixation monitoring programs to ensure accurate measurement data and high reliability of measurement results
Abundant inspection modes for both accuracy and speed
Comprehensive Analysis Software
Internationally recognized six-figure report
Technical Specification of Projection Perimeter
| Specification | ||
| Testing scope | 90° | |
| Testing distance | 30CM | |
| Background light | white31.5asb,yellow315asb | |
| Visual target | 0.08asb---10000asb(0-51DB) | |
| Target size | GoldmannⅠ, II ,III,IV,V | |
| Visual target stimulation time | 200ms | |
| Visual target interval time | Standard and custom | |
| Threshold policy | Macula,10-2,24-2,30-2,60-4,nasal side | |
| Upper threshold policy | C-40,C-64,C-76,FF-81,FF-120,FF-135…… | |
| Special detection strategy | Esterman monocular,Esterman binocular,upper36°screening,blind point testing | |
| Yellow-blue testing | Standard 440nm blue visual target + 315asb OG530yellow background brightness | |
| Visual target | Red ,blue | |
| Dynamic policy | Standard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic | |
| Custom policy | Static custom dynamic custom | |
| Pupil size measurement | Auto | |
| Fixation monitoring | Physiological blind spot monitoring,eye position monitoring,eye position moving alarm,eye tracking curve | |
| Environment light testing | Auto | |
| Analysis software | reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis | |
| System | Win7 above | |
| Others | ||
| Size | 412mm(length)* 497mm(width)* 513mm(height) | |
| Wight | 17kg | |
| Power |
100-240V HZ:50-60Hz |
|
details:
1.Aspherical design, compact and humanize features, even when tested to 90 degrees, the patient's feeling is still very comfortable.
2.Built-in physiological blind spot detection, eye position video detection, eye position deviation alarm, and eye position deviation flexion line ,allow the operator to align and track the position of the patient's eyes and provide real-time assessment of eye gaze
3.Standards SWAP blue-yellow visual field examination,sensitive to earlier visual field defects
4.Scientific and intelligent interactive inspection strategy, 30° range visual field inspection only takes 3 minutes
5.7 kinds of analysis: reliability analysis, single-report analysis, multi-report analysis, glaucoma half-field analysis, glaucoma progression analysis, VFI visual field index analysis;blue-yellow visual field analysis
6.Half-field analysis designed for glaucoma, making glaucoma diagnosis easier
7.Analysis of glaucoma progression, very subtle progression is more visible and continues to indicate new progression
8.Digital Map, Grayscale Map, Population Deviation, Population Deviation Probability Map, Mode Deviation, Mode Probability Map
