Place of Origin:
China
Brand Name:
SYSEYE
Certification:
TUV
Model Number:
RetiView 500
Contact Us
Video
Video
Video

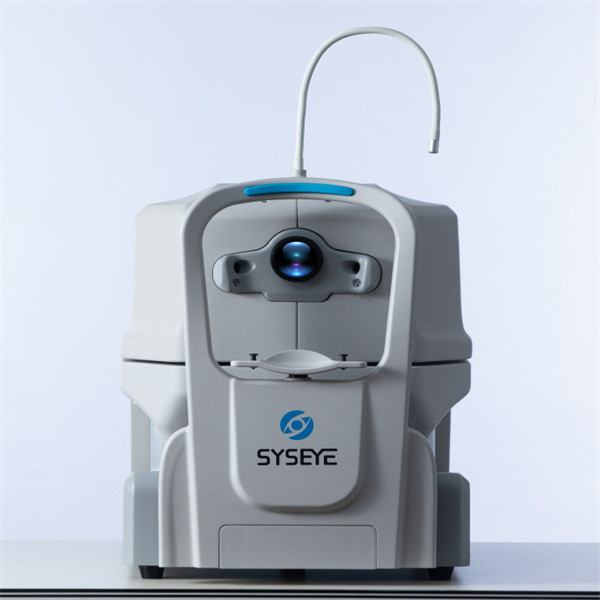

oct scan machine Continuous Operation PC inside compact design easy installation
oct scan machine can analyze the optic nerve fiber layer thickness and optic nerve papilla structure, which is helpful for the early diagnosis and treatment of glaucoma, which is difficult to achieve by other detection techniques. Fundus fault information can be obtained accurately and intuitively, and diseases such as macular hole, macular cystic edema and age-related macular degeneration can be accurately determined, which can be reflected intuitively and forcefully by the test report. It can accurately locate the pathological position of the fundus of the eye, so as to improve the level of diagnosis and treatment of ophthalmic diseases, and provide accurate help for high-precision treatment methods such as ophthalmic surgery. Accurate imaging and detection of the postoperative recovery of the body can be carried out to observe the effect and real-time recovery after surgery.
Specifications of SD OCT Machine
| Methodology | Spectral domain OCT |
| Axial resolution | ≤6 µm (in tissue) |
| Transverse resolution | ≤20 µm (in tissue) |
| Scan depth | ≥2.5 mm (in air) |
| Scan range | ≥6mm |
| Scan speed | ≥24,000 A-scans/sec, up to 36,000 A-scans/sec |
| Scan modes | 3D, Raster, Circle |
| Fundus image | OCT en face |
| Focus adjustment | -15D to +15D |
| Pupil diameter | ≥3 mm |
| OCT light source | 840 nm SLD |
| Optical power | 750 µW (at cornea) |
| Operation | 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz |
| Power supply | 497 mm × 395 mm × 490 mm (L × W × H) |
| Dimensions Weight | 34 kg (75 lbs) |
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
