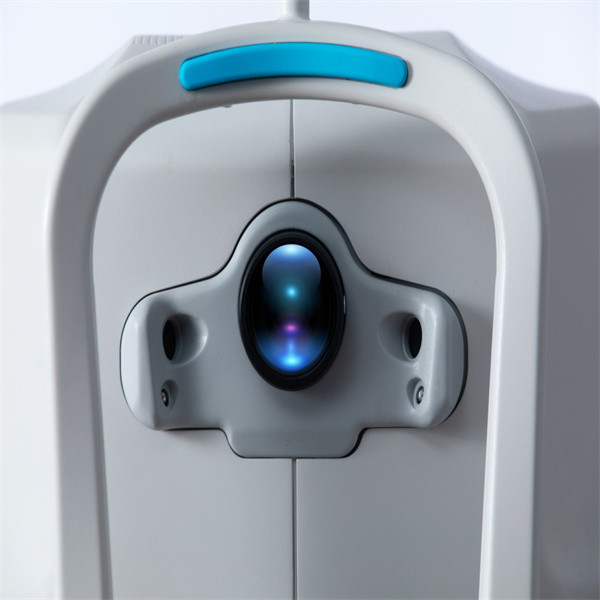

Small Pupil Alignment Optical Coherence Tomography Equipment 12mm

Small Pupil Alignment Optical Coherence Tomography Equipment 12mm

Retina SD OCT Machine

12mm Optical Coherence Tomography Equipment

Small Pupil Alignment OCT Machine

Place of Origin:


Brand Name:




Model Number:

RetiView 500

Contact Us

Request A Quote
Product Details
Product Name:
Retina SD OCT Machine
Fundus Image:
OCT En Face
Axial Resolution:
≤6 µm (in Tissue)
Transverse Resolution:
≤20 µm (in Tissue)
Scan Depth:
≥2.5 Mm (in Air)
Scan Range:
Pupil Diameter:
≥3 Mm
Focus Adjustment:
-15D To +15D
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
497 mm × 395 mm × 490 mm (L × W × H) 34 kg (75 lbs)
Delivery Time
5 working days
Payment Terms
Supply Ability
Product Description

optical coherence tomography equipment small pupil alignment advanced signal optimization


optical coherence tomography equipment is a new non-contact and non-invasive imaging technology for ophthalmological diagnosis. It can clearly distinguish the structure of various tissues through the tomography based on their different ability to reflect, absorb and scatter light. SD OCT Machine is of great value in clinical research of retinal diseases, macular diseases, optic nerve diseases, glaucoma and so on. It can provide valuable basis for the diagnosis and differential diagnosis of retinal diseases, especially macular disease.



Specifications of  SD OCT Machine


Methodology Spectral domain OCT
Axial resolution ≤6 µm (in tissue)
Transverse resolution ≤20 µm (in tissue)
Scan depth ≥2.5 mm (in air)
Scan range ≥6 mm
Scan speed ≥24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes 3D, Raster, Circle
Fundus image OCT en face
Focus adjustment -15D to +15D
Pupil diameter ≥3 mm
OCT light source 840 nm SLD
Optical power 750 µW (at cornea)
Operation 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz
Power supply 497 mm × 395 mm × 490 mm (L × W × H)
Dimensions Weight 34 kg (75 lbs)



*All-in-one design with optional larger external monitor guarantees an installation-free experience.
Plug the power cable and power on the system,then you are ready to go.
*Fully automated operation with minimum human intervention. Smart pupil alignment, advanced
signal optimization assure quality OCT images independent of operators.
*The small footprint and all-in-one system fits in the smallest examination room. The flexible monitor
locations allows various operator positions.
*Extremely easy to operate. Make for professionals without professional operators.
*High definition image and comprehensive analysissoftware
*Subtle lesion will be precisely identified via high resolution image
*with more than 4 scan mode on macular and optic part, the software creats a summary annalysis of macula
retina, RNFL,ONH. Progress  analysis for follow-up examination is available.
