Place of Origin:
China
Brand Name:
SYSEYE
Certification:
TUV
Model Number:
BIO-1100
Contact Us

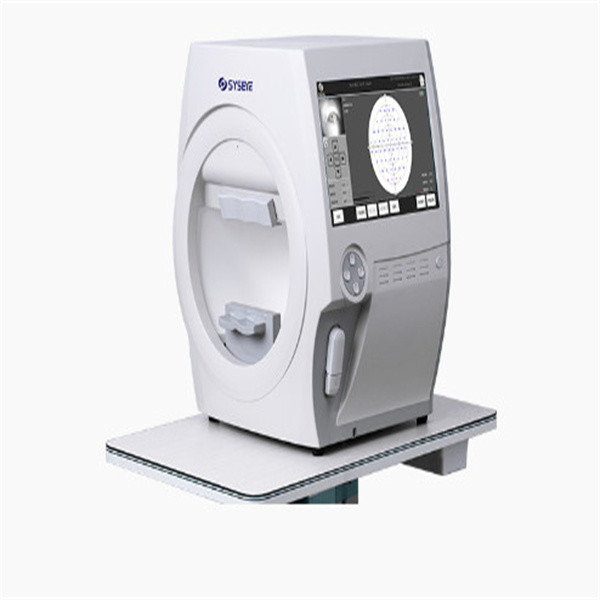

perimeter ophthalmic instrument Impact body, Humanize design Abundant inspection modes
The Bio-1100 projection perimeter refers to Goldmann international standards, it integrates a variety of features. The background illumination, the size of the stimulus cursor and its brightness are standardized. Dynamic and static visual field detection can be performed, so that the whole picture of the visual field can be understood. It is used for the diagnosis and monitoring of glaucoma, vision and optic nerve diseases.
| Specification | ||
| Testing scope | 90° | |
| Testing distance | 30CM | |
| Background light | white31.5asb,yellow315asb | |
| Visual target | 0.08asb---10000asb(0-51DB) | |
| Target size | GoldmannⅠ, II ,III,IV,V | |
| Visual target stimulation time | 200ms | |
| Visual target interval time | Standard and custom | |
| Threshold policy | Macula,10-2,24-2,30-2,60-4,nasal side | |
| Upper threshold policy | C-40,C-64,C-76,FF-81,FF-120,FF-135…… | |
| Special detection strategy | Esterman monocular,Esterman binocular,upper36°screening,blind point testing | |
| Yellow-blue testing | Standard 440nm blue visual target + 315asb OG530yellow background brightness | |
| Visual target | Red ,blue | |
| Dynamic policy | Standard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic | |
| Custom policy | Static custom dynamic custom | |
| Pupil size measurement | Auto | |
| Fixation monitoring | Physiological blind spot monitoring,eye position monitoring,eye position moving alarm, eye tracking curve | |
| Environment light testing | Auto | |
| Analysis software | reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis | |
| System | Win7 above | |
| Others | ||
| Size | 412mm(length)* 497mm(width)* 513mm(height) | |
| Wight | 17kg | |
| Power |
100-240V HZ:50-60Hz |
|
Feature of Perimetry Test Machine
* Impact body, Humanize design
* Equipped with a variety of fixation monitoring programs to ensure accurate measurement data
and high reliability of measurement results
* Abundant inspection modes for both accuracy and speed
* Comprehensive Analysis Software
Perimetry Test Machine other feature
* Scientific intelligent interactive detection strategy, 30 ° It only takes 3 minutes to detect the range visual field.
* Simple one-stop modular software design, equipment operation learning only takes 2 minutes
* the same function of Zeiss Humphrey 860
* Halogen projection system: the stimulating light source comes from the broadband visible spectrum, which fully meets the stimulation of color cone cells.
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
