Place of Origin:
China
Brand Name:
SYSEYE
Certification:
TUV
Model Number:
BIO-1100
Contact Us
peripheral vision test machine Comprehensive Analysis Software

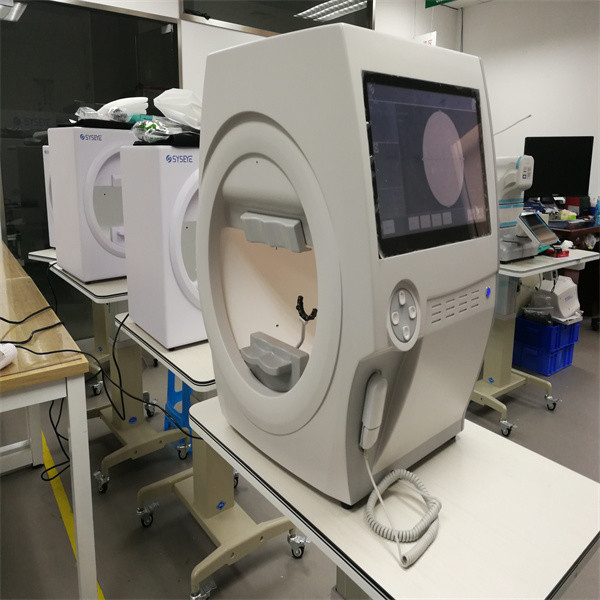

The Bio-1100 projection perimeter refers to Goldmann international standards, it integrates a variety of features. The background illumination, the size of the stimulus cursor and its brightness are standardized. Dynamic and static visual field detection can be performed, so that the whole picture of the visual field can be understood. It is used for the diagnosis and monitoring of glaucoma, vision and optic nerve diseases.
| Specification | ||
| Testing scope | 90° | |
| Testing distance | 30CM | |
| Background light | white31.5asb,yellow315asb | |
| Visual target | 0.08asb---10000asb(0-51DB) | |
| Target size | GoldmannⅠ, II ,III,IV,V | |
| Visual target stimulation time | 200ms | |
| Visual target interval time | Standard and custom | |
| Threshold policy | Macula,10-2,24-2,30-2,60-4,nasal side | |
| Upper threshold policy | C-40,C-64,C-76,FF-81,FF-120,FF-135…… | |
| Special detection strategy | Esterman monocular,Esterman binocular,upper36°screening,blind point testing | |
| Yellow-blue testing | Standard 440nm blue visual target + 315asb OG530yellow background brightness | |
| Visual target | Red ,blue | |
| Dynamic policy | Standard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic | |
| Custom policy | Static custom dynamic custom | |
| Pupil size measurement | Auto | |
| Fixation monitoring | Physiological blind spot monitoring,eye position monitoring,eye position moving alarm, eye tracking curve | |
| Environment light testing | Auto | |
| Analysis software | reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis | |
| System | Win7 above | |
| Others | ||
| Size | 412mm(length)* 497mm(width)* 513mm(height) | |
| Wight | 17kg | |
| Power |
100-240V HZ:50-60Hz |
|
Feature of Perimetry Test Machine
* Impact body, Humanize design
* Equipped with a variety of fixation monitoring programs to ensure accurate measurement data
and high reliability of measurement results
* Abundant inspection modes for both accuracy and speed
* Comprehensive Analysis Software
* Internationally recognized six-figure report
Perimetry Test Machine features the followingEasy operation
Touch screen design speeds data input.
Menu and icon commands simplify operation.
On-screen video eye monitor is standard on all models.
Confirmation screens reduce unintentional data loss.
A keyboard and trackball or mouse can be connected to the Visual Field Analyzer as optional
datainput devices.
