optical coherence tomography machine efficacy evaluation, a high-resolution, non-contact

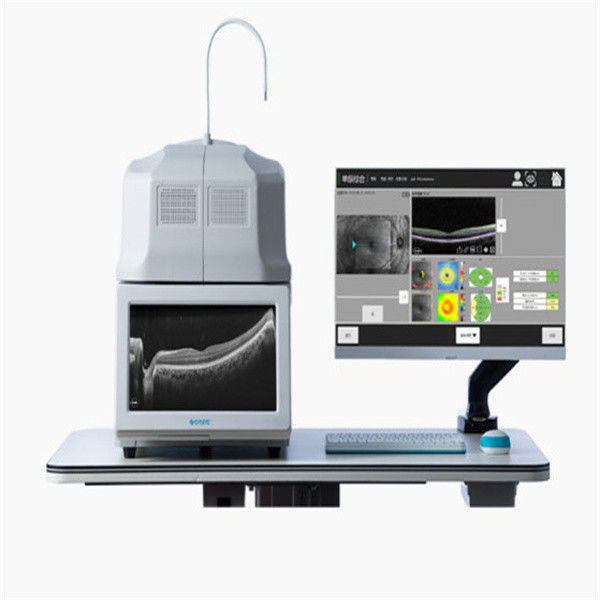

OCT RetiView 500 can perform tomographic imaging on the macular area, optic disc, choroid and other tissues of the fundus, providing important diagnostic basis and treatment for eye diseases, especially fundus diseases, glaucoma screening, diagnosis, follow-up and efficacy evaluation, a high-resolution, non-contact, non-invasive imaging technique for easy and fast examination.
Specifications of SD OCT Machine
| Methodology | Spectral domain OCT |
| Axial resolution | ≤6 µm (in tissue) |
| Transverse resolution | ≤20 µm (in tissue) |
| Scan depth | ≥2.5 mm (in air) |
| Scan range | ≥6 mm |
| Scan speed | ≥24,000 A-scans/sec, up to 36,000 A-scans/sec |
| Scan modes | 3D, Raster, Circle |
| Fundus image | OCT en face |
| Focus adjustment | -15D to +15D |
| Pupil diameter | ≥3 mm |
| OCT light source | 840 nm SLD |
| Optical power | 750 µW (at cornea) |
| Operation | 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz |
| Power supply | 497 mm × 395 mm × 490 mm (L × W × H) |
| Dimensions Weight | 34 kg (75 lbs) |
Features:
• Fully automatic one-key operation, automatic eye tracking, automatic tomography of the macula, optic disc and other parts
• Up to 14 types of analysis, accurate and comprehensive analysis of the fundus
• The use of OCT to measure macular hole size before eye surgery allows doctors to objectively assess the effect of macular hole surgery, and the changes in diabetic macular edema can be accurately and predictably measured by OCT
• Possibility to diagnose fine vitreomacular traction and provide accurate pre- and post-operative macular thickness assessment
• Can accurately measure subtle changes in retinal structure and make precise analysis of the retinal nerve fiber layer
