ultrasonic scanning machine IOL calculation Convenient measurement tool

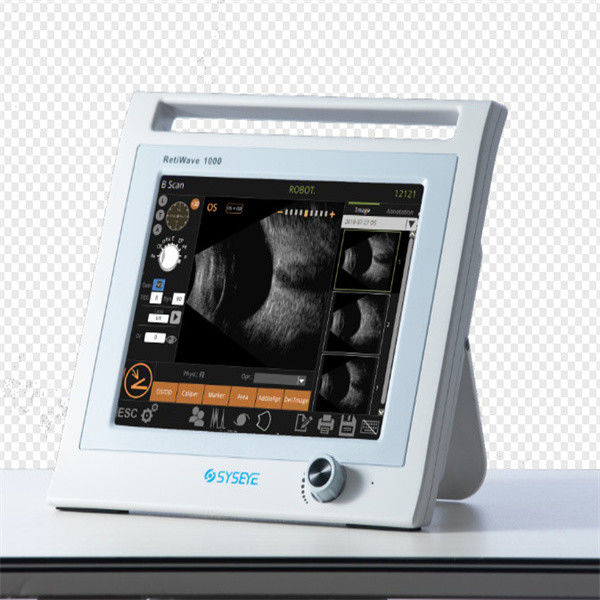

RetiWave 1000 is digital ultrasonic system for ophthalmology. With advanced intelligent digital software the parameters of freezed and stored images could be adjusted voluntarily
RetiWave1000 ophthalmic AB ultrasound diagnostic instrument is a complete ultrasound system, which has the following basic functions:
1. A super function is the measurement of eye axis length.
2. B ultrasonic function is fan scan.
3. IOL calculation function USES 6 formulas to calculate the artificial crystal.
Features of scan A:
• The use of 10MHz non-focusing imported probe can most sensitively reflect the change of sound intensity of the central tissue (10dB-30dB), thereby greatly improving the ability to resolve tissue properties
• Automatic save, automatic calculation of average
•Built-in multiple IOL calculation formulas
Features of scan B:
•Automatically record the first 100 images, which can be played back continuously or one by one
•Time gain compensation adjustment function
•Convenient measurement tool
Technical Data
| A Scan biometry | |
| Probe frequency | 10MHz |
| Measuring mode | contact |
| Measuring range | Over 5mm-40mm |
| Measuring error | ≤±0.05mm |
| Measuring type | Length of optic axis , automatic calculation , result analysis auto , |
| Image freezing | auto+preservable, manual |
| Intraocular lens implantation (IOL)formula | SRK-T, SRX II, HOLLADAY, BINKHORST-II, HOFFER-Q,HAIGIS |
| Gain | 20-110dB |
| Time gain adjustment | 0-30dB |
| B Scan patterns | |
| Probe frequency | 10MHz |
| Probing depth | ≥50mm |
| Axial Resolution | ≤0.2mm |
| Lateral resolution | ≤0.3mm |
| Gain adjustment | 20-110dB |
| Time gain adjustment | 0-30dB |
| Operation mode | Eyecup, gel, aqueous capsule |
| Post-processing measuring tools | Area, length, mark and annotation |
| Review | 100 images available |
| Others | |
| Size | 340mm*320mm*115mm |
| weight | 10kg |
| Power supply | 100-240V 50/60Hz |
