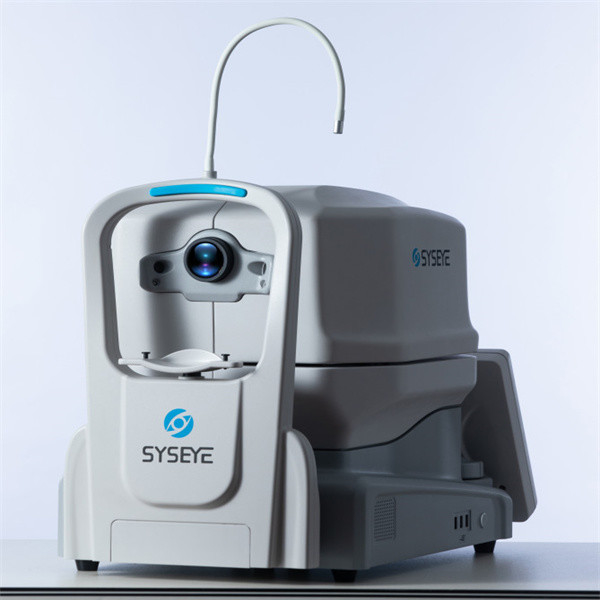

Fully Automatic SD Optical Coherence Tomography Machine Comprehensive Measurement Tools

Fully Automatic SD Optical Coherence Tomography Machine Comprehensive Measurement Tools

SD Optical Coherence Tomography Machine

12mm SD OCT Machine

Fully Automatic Optical Coherence Tomography Machine

Place of Origin:

China

Brand Name:

SYSEYE

Certification:

TUV

Model Number:

RetiView 500

Contact Us

Request A Quote
Product Details
Product Name:
Clearly Shows SD OCT Machine
Scan Range:
6-12mm
Scan Speed:
≥24,000A-scan/sec,up To 36,000A-scan/sec
Transverse Resolution:
≤20 µm (in Tissue)
Scan Depth:
≥2.5 Mm (in Air)
Focus Adjustment:
-15D To +15D
Pupil Diameter:
≥3 Mm
Scan Mode:
3D(Macular&Optic Disk) ,HD,Raster,Circle,Cross
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$18,500.00-$21,900.00
Packaging Details
497 mm × 395 mm × 490 mm (L × W × H) 34 kg (75 lbs)
Delivery Time
5 working days
Payment Terms
T/T
Supply Ability
100
Product Description

optical coherence tomography machine Fully automatic Comprehensive measurement analysis tools



OCT RetiView 500 can perform tomographic imaging on the macular area, optic disc, choroid and other tissues of the fundus, providing important diagnostic basis and treatment for eye diseases, especially fundus diseases, glaucoma screening, diagnosis, follow-up and efficacy evaluation, a high-resolution, non-contact, non-invasive imaging technique for easy and fast examination.



Features:

1. Fully automatic
2.Comprehensive measurement analysis tools
3. Rich image editing software

4.Case Reports



Specifications of  SD OCT Machine



Methodology Spectral domain OCT
Axial resolution ≤6 µm (in tissue)
Transverse resolution ≤20 µm (in tissue)
Scan depth ≥2.5 mm (in air)
Scan range ≥6 mm
Scan speed ≥24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes 3D, Raster, Circle
Fundus image OCT en face
Focus adjustment -15D to +15D
Pupil diameter ≥3 mm
OCT light source 840 nm SLD
Optical power 750 µW (at cornea)
Operation 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz
Power supply 497 mm × 395 mm × 490 mm (L × W × H)
Dimensions Weight 34 kg (75 lbs)





Fully Automatic SD Optical Coherence Tomography Machine Comprehensive Measurement Tools 0

Fully Automatic SD Optical Coherence Tomography Machine Comprehensive Measurement Tools 1

Fully Automatic SD Optical Coherence Tomography Machine Comprehensive Measurement Tools 2

Fully Automatic SD Optical Coherence Tomography Machine Comprehensive Measurement Tools 3











Company Introduction

Fully Automatic SD Optical Coherence Tomography Machine Comprehensive Measurement Tools 4

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.

Fully Automatic SD Optical Coherence Tomography Machine Comprehensive Measurement Tools 5
